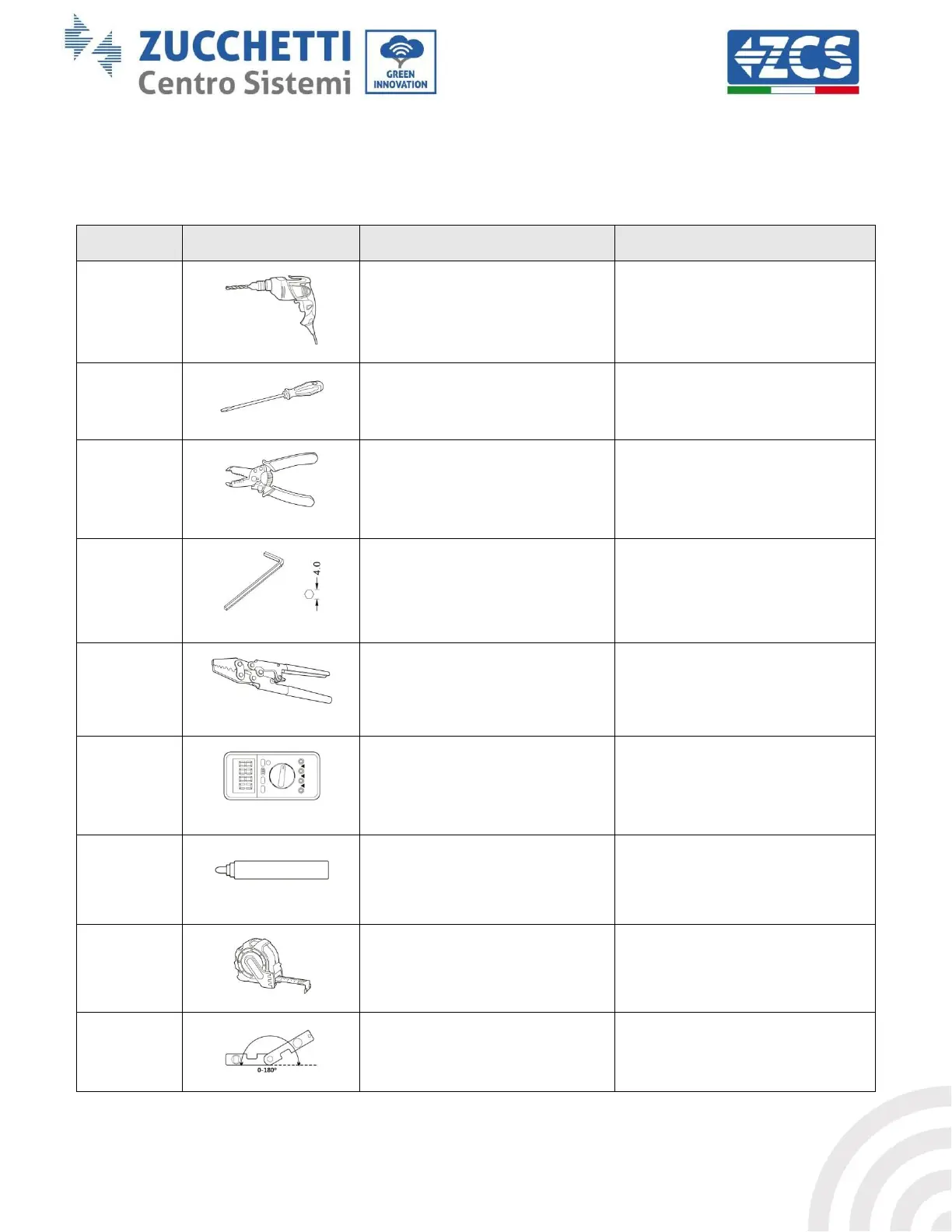

3.4. Installation tools
Prepare the following tools before installation:
Number
Tool
Model
Function
1
Percussion drill
Recommended diameter: 6 mm
Used to make holes in the wall
2
Screwdriver
Used for the wiring
3
Cable stripper
Used for stripping the wires
4
4mm Allen key
Used for tightening the screws to
connect the rear panel to the
inverter
5
Crimping tools
Used for crimping the power
cables
6
Multi-meter
Used for checking the grounding
connection
7
Marker
Used for marking
8
Tape measure
Used for measuring distances
9
Level
Used for making sure that the rear
panel is installed correctly
