ZCS AZZURRO HYD6000 - Photovoltaic Connection

User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID
25/94

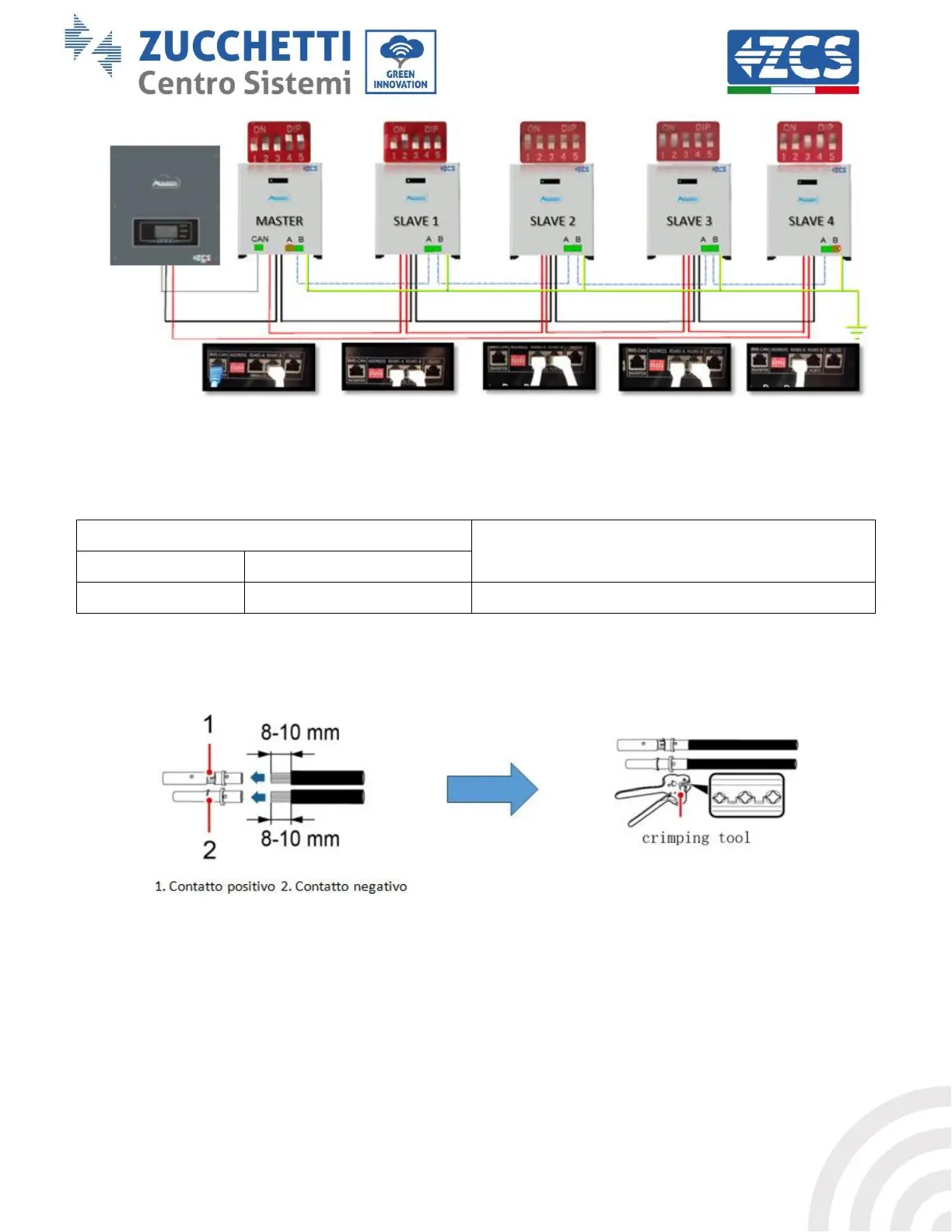

Figure 18 – Parallel connection of five WeCo batteries
4.4. Photovoltaic connection
Recommended specifications for DC input cables
Cross-sectional area (mm
2
/ AWG)
Outer diameter of cable (mm
2
)
Range
Recommended value
4.0-6.0 / 11-9
4.0 / 11
4.5~7.8
Procedure:
Step 1: Prepare the positive and negative photovoltaic cables.
Figure 19 – Preparing the positive and negative photovoltaic cables
Step 2: Insert the crimped positive and negative cables into the corresponding photovoltaic connectors.
