User’s Manual 1PH HYD3000-HYD6000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1.1 of 16/03/2021 - Application: GID

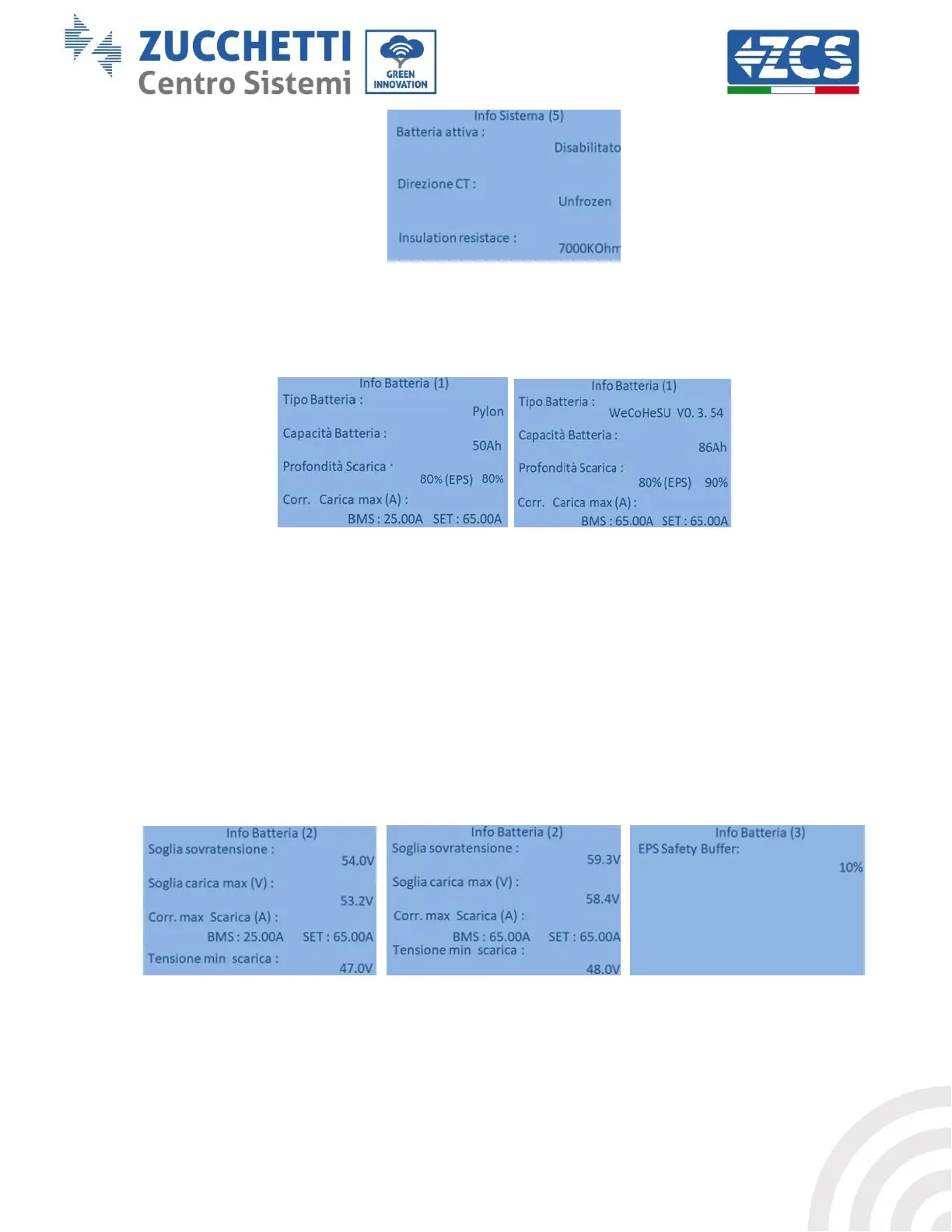

CT Direction: check the blocking status of the CTs.
Insulation resistance: check that the value of the insulation resistance is higher than the limits imposed by
the standard.
Battery type: check if the battery model on the display is consistent with the batteries installed.
Battery capacity: the system will show the total capacity of the batteries:
1 Pylontech → 50 Ah;
2 Pylontech → 100Ah
n Pylontech → n x 50Ah
1 WeCo → 86 Ah;
2 WeCo → 172Ah
n WeCo → n x 86Ah
Depth of discharge: check the depth of discharge values set in On-grid and EPS mode.
