Zebra MC9300 User Manual

Wireless
107

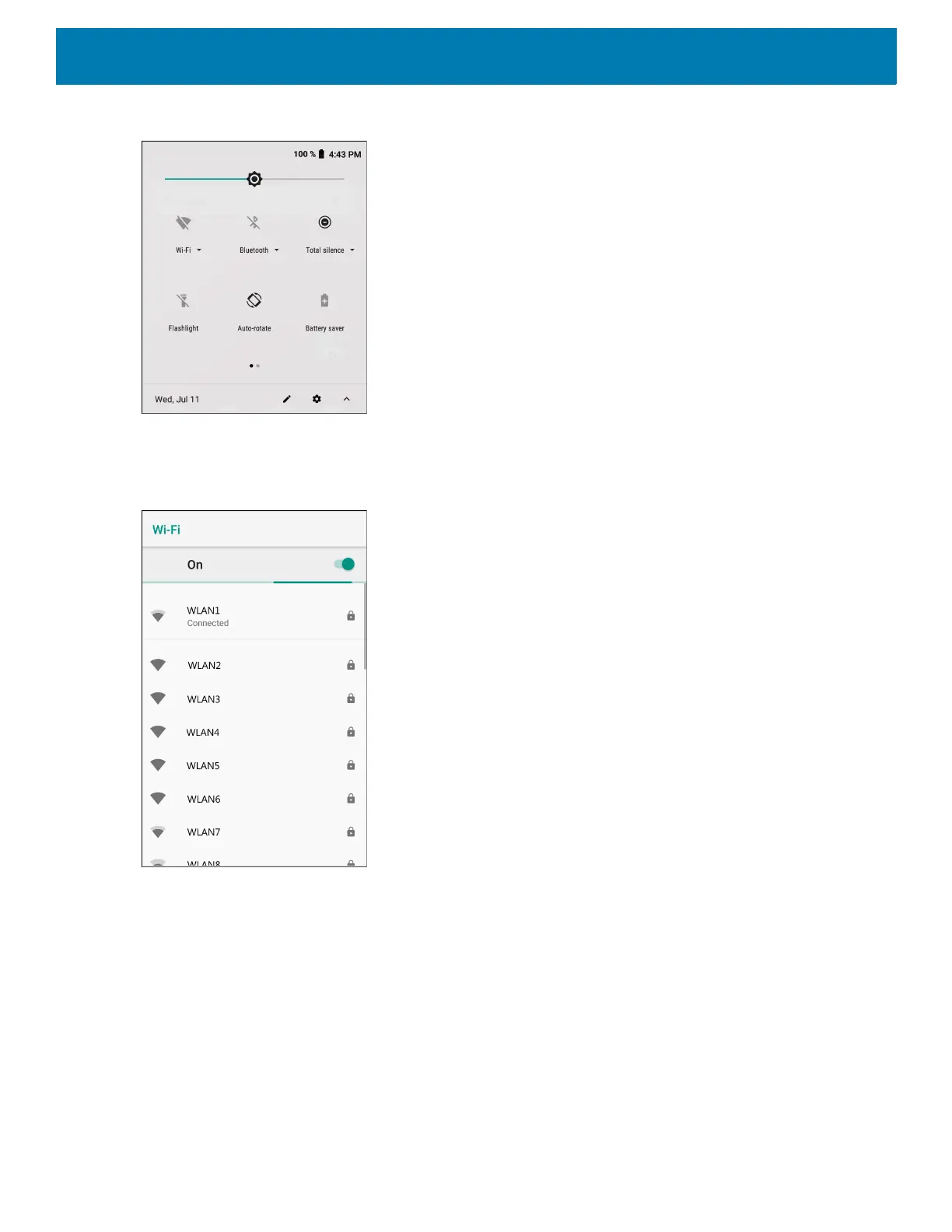

Figure 93 Quick Access Panel
2. Touch Wi-Fi to open the Wi-Fi screen. The device searches for WLANs in the area and lists them.
Figure 94 Wi-Fi Screen
-
3. Scroll through the list and select the desired WLAN network.
4. For open networks, touch profile once or press and hold and then select Connect to network or for secure
networks enter the required password or other credentials then touch Connect. See the system
administrator for more information.
The device obtains a network address and other required information from the network using the dynamic
host configuration protocol (DHCP) protocol. To configure the device with a fixed internet protocol (IP)
address, Refer to the device Integrator Guide for more information.
5. In the Wi-Fi setting field, Connected appears indicating that the device is connected to the WLAN.

Zebra MC9300 Specifications

General

Operating Temp	-4°F to 122°F / -20°C to 50°C
Processor	Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
Operating System	Android 8.1 Oreo
Display	4.3 inch WVGA (800 x 480), color display
RAM	4 GB
Storage	32 GB Flash
Connectivity	802.11 a/b/g/n/ac/d/h/i/r/k/w, Bluetooth 5.0
Camera	Optional 13 MP rear camera
Durability	IP65 and IP67 sealing
Memory	4 GB RAM/32 GB Flash
Touch Panel	Capacitive touch panel with Corning Gorilla Glass
Keypad Options	Alphanumeric, numeric and functional numeric keypads
Scanning	Integrated 1D/2D barcode scanner
Drop Specification	Multiple 8 ft. / 2.4 m drops to concrete at room temperature
Expansion Slots	MicroSD Card slot (supports up to 256 GB)
Battery	7000 mAh PowerPrecision+ Li-Ion rechargeable battery
