Zebra MC9300 User Manual

Data Capture
93

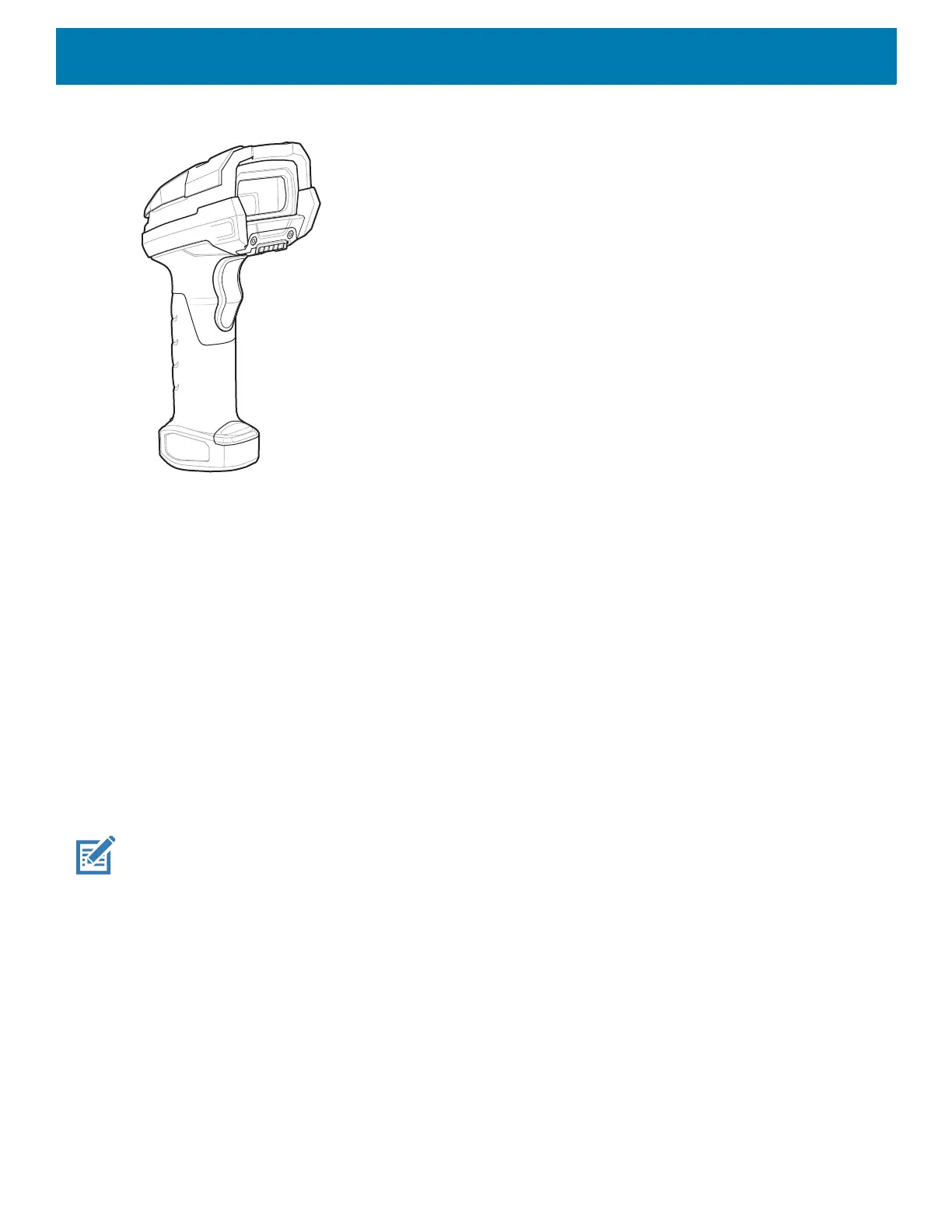

Figure 71 DS3678 Digital Scanner
Scanning Considerations
Typically, scanning is a simple matter of aim, scan, and decode, with a few quick trial efforts to master it.
However, consider the following to optimize scanning performance:
• Range: Scanners decode best over a particular working range — minimum and maximum distances from
the barcode. This range varies according to barcode density and scanning device optics. Scan within range
for quick and constant decodes; scanning too close or too far away prevents decodes. Move the scanner
closer and further away to find the right working range for the barcodes being scanned.
• Angle: Scanning angle is important for quick decodes. When the illumination/flash reflects directly back into
the imager, the specular reflection can blind/saturate the imager. To avoid this, scan the barcode so that the
beam does not bounce directly back. Do not scan at too sharp an angle; the scanner needs to collect
scattered reflections from the scan to make a successful decode. Practice quickly shows what tolerances to
work within.
• Hold the device farther away for larger symbols.
• Move the device closer for symbols with bars that are close together.
NOTE: Scanning procedures depend on the app and device configuration. An app may use different scanning
procedures from the one listed above.
Barcode Capture with Imager
To capture barcode data:
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the top of the device at a barcode.

Zebra MC9300 Specifications

General

Operating Temp	-4°F to 122°F / -20°C to 50°C
Processor	Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
Operating System	Android 8.1 Oreo
Display	4.3 inch WVGA (800 x 480), color display
RAM	4 GB
Storage	32 GB Flash
Connectivity	802.11 a/b/g/n/ac/d/h/i/r/k/w, Bluetooth 5.0
Camera	Optional 13 MP rear camera
Durability	IP65 and IP67 sealing
Memory	4 GB RAM/32 GB Flash
Touch Panel	Capacitive touch panel with Corning Gorilla Glass
Keypad Options	Alphanumeric, numeric and functional numeric keypads
Scanning	Integrated 1D/2D barcode scanner
Drop Specification	Multiple 8 ft. / 2.4 m drops to concrete at room temperature
Expansion Slots	MicroSD Card slot (supports up to 256 GB)
Battery	7000 mAh PowerPrecision+ Li-Ion rechargeable battery
