Data Capture
94

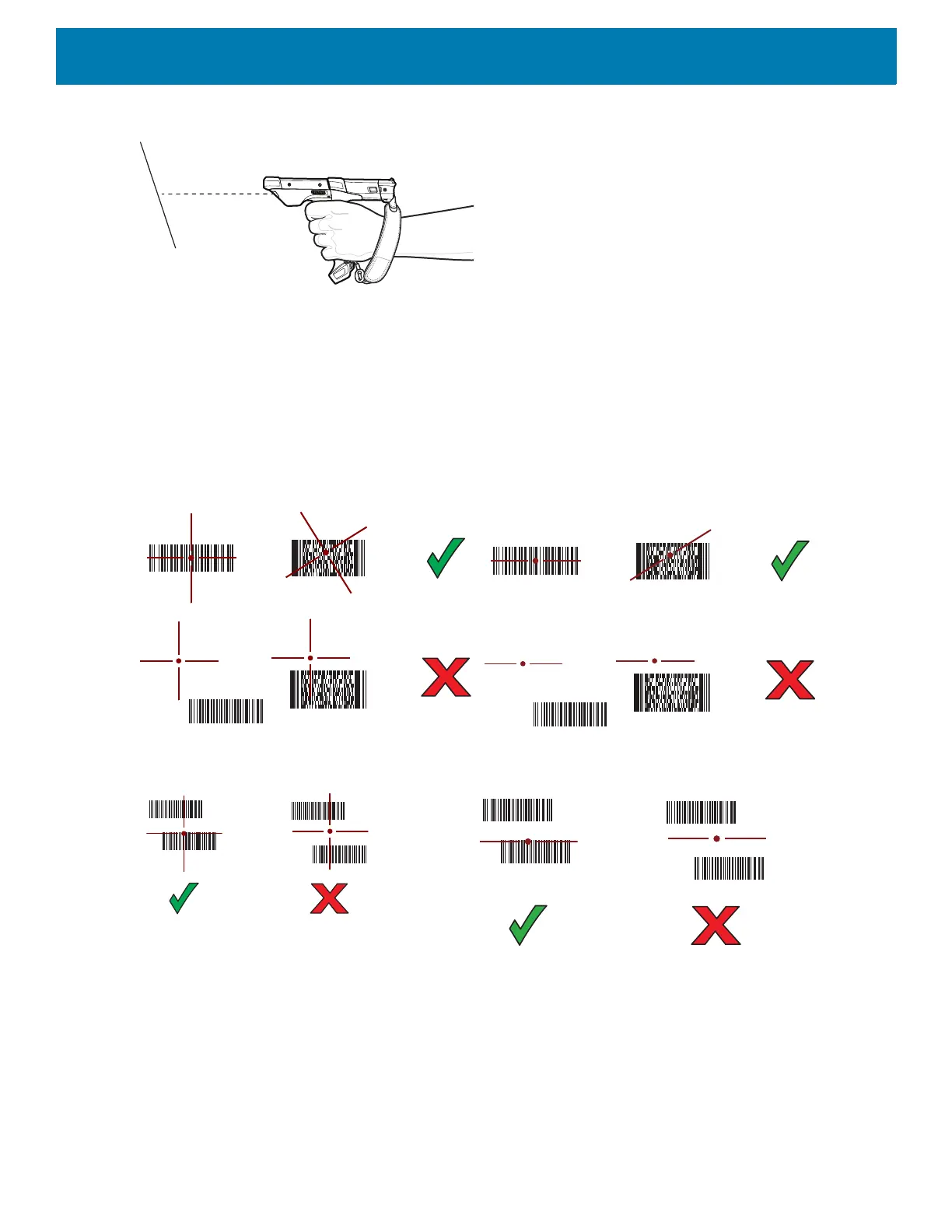

Figure 72 Barcode Scanning – MC93XX
3. Press and hold the Scan button or Trigger.
The red laser aiming pattern turns on to assist in aiming.
4. Ensure the barcode is within the area formed by the cross-hairs in the aiming pattern. The aiming dot is
used for increased visibility in bright lighting conditions.
The Scan LEDs light green and a beep sounds, by default, to indicate the barcode was decoded
successfully. Note that when the device is in Pick List Mode, the device does not decode the barcode until
the center of the crosshair touches the barcode.
Figure 73 Aiming Pattern: Standard and Extended Range
Figure 74 Pick List Mode with Multiple Barcodes in Aiming Pattern: Standard and Extended Range
5. Release the scan button or Trigger.
6. The barcode content data appears in the text field.
Barcode Capture with Laser Scanner
To capture barcode data:
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
