12.Align the keypad along the bottom ridge of the device, and then lay it flat.

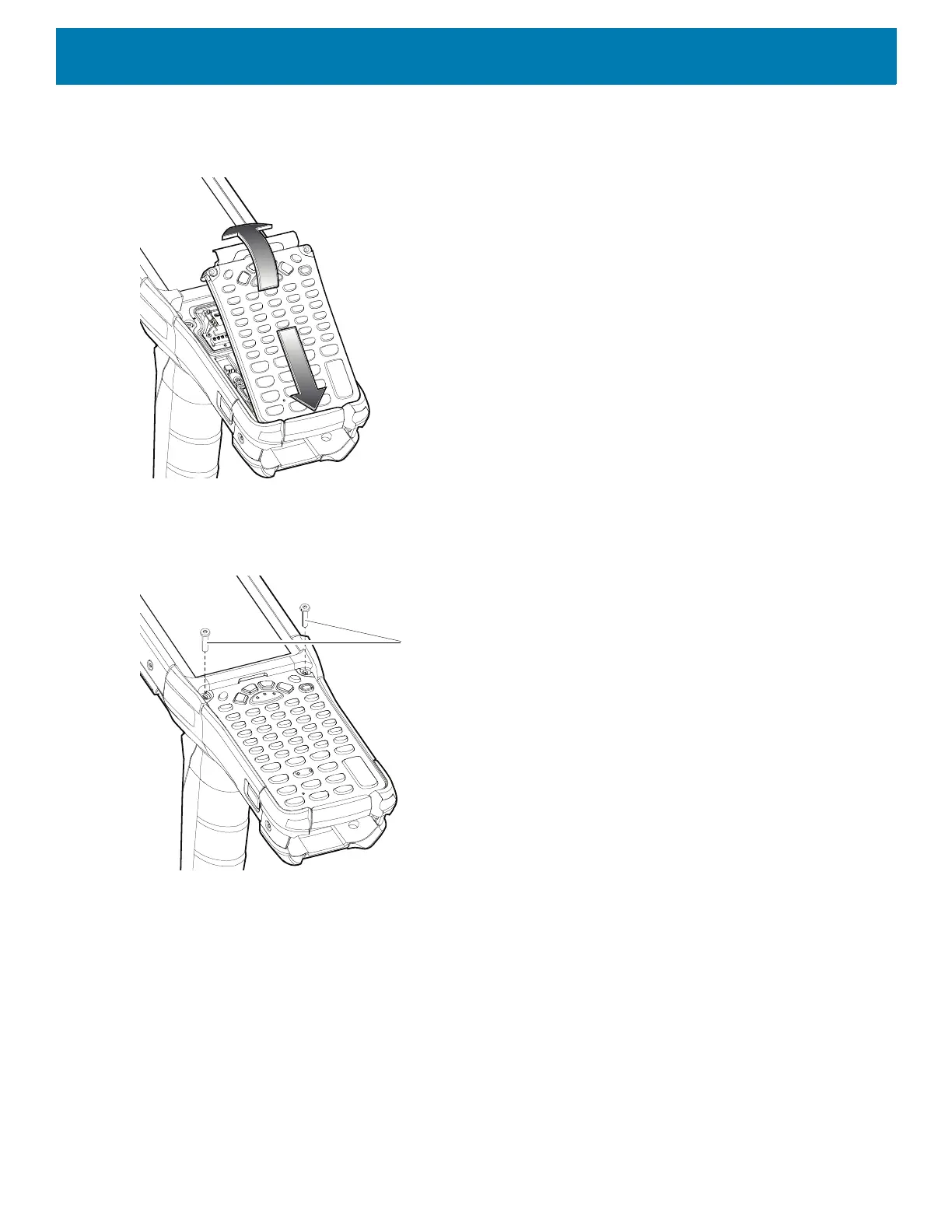

Figure 11 Replace Keypad
13.Using a Torx T8 screwdriver with a large grip and a long shaft, secure the keypad to the device using the
two screws. Torque screws to 5.8 kgf-cm or 5.0 lbf-in.
Figure 12 Replace Keypad Screws
14.Turn the device over so that the keypad latches are visible.
