Routine Maintenance
Replace Fuse
23063L-003 Rev. 1 12/6/04 R110Xi/R170Xi User Guide 123

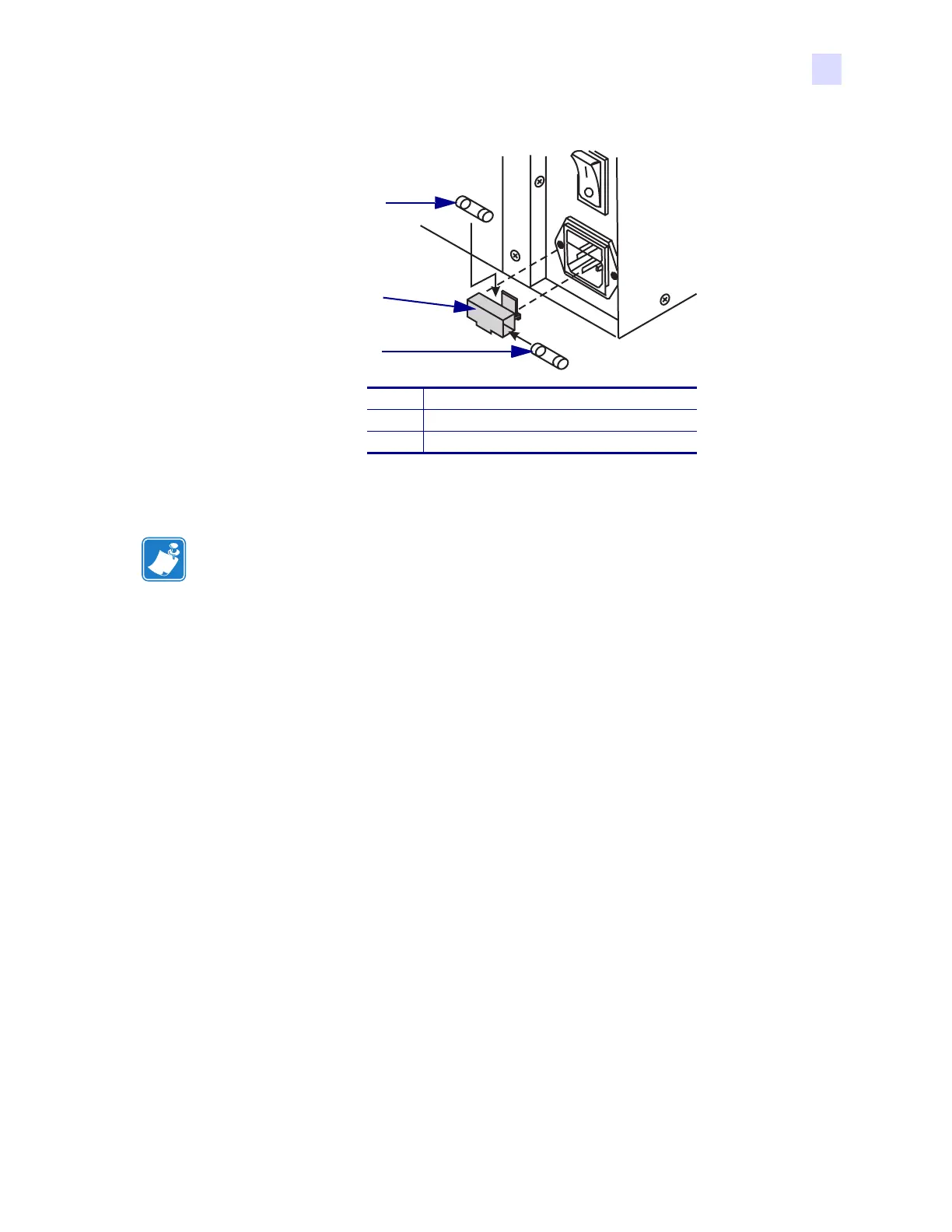

Figure 50 • Fuse Locations
3. Snap the fuse holder back into the AC power entry module.
4. Reconnect the power cord, and turn the printer On (I).
1
In-circuit fuse
2
Fuse holder
3
Spare fuse
Note • If the printer does not power on, an internal component failure may have occurred,
and the printer requires servicing by an authorized service technician.
