24 R110Xi/R170Xi User Guide 23063L-003 Rev. 1 12/6/04
Printer Operation
Loading the Media
Load Fanfold Media
Fanfold media feeds through either the bottom or rear access slot from outside the printer. The
media hanger and media supply spindle are not used with fanfold media.
To load fanfold labels, complete these steps:
1. Slide the printhead lever to the Open position.
2. See Figure 13 on page 22. Slide the media guide away from the printer frame. You may
need to loosen the media guide screw.
3. How do you want to feed the fanfold labels?
• From the bottom slot in the printer body.

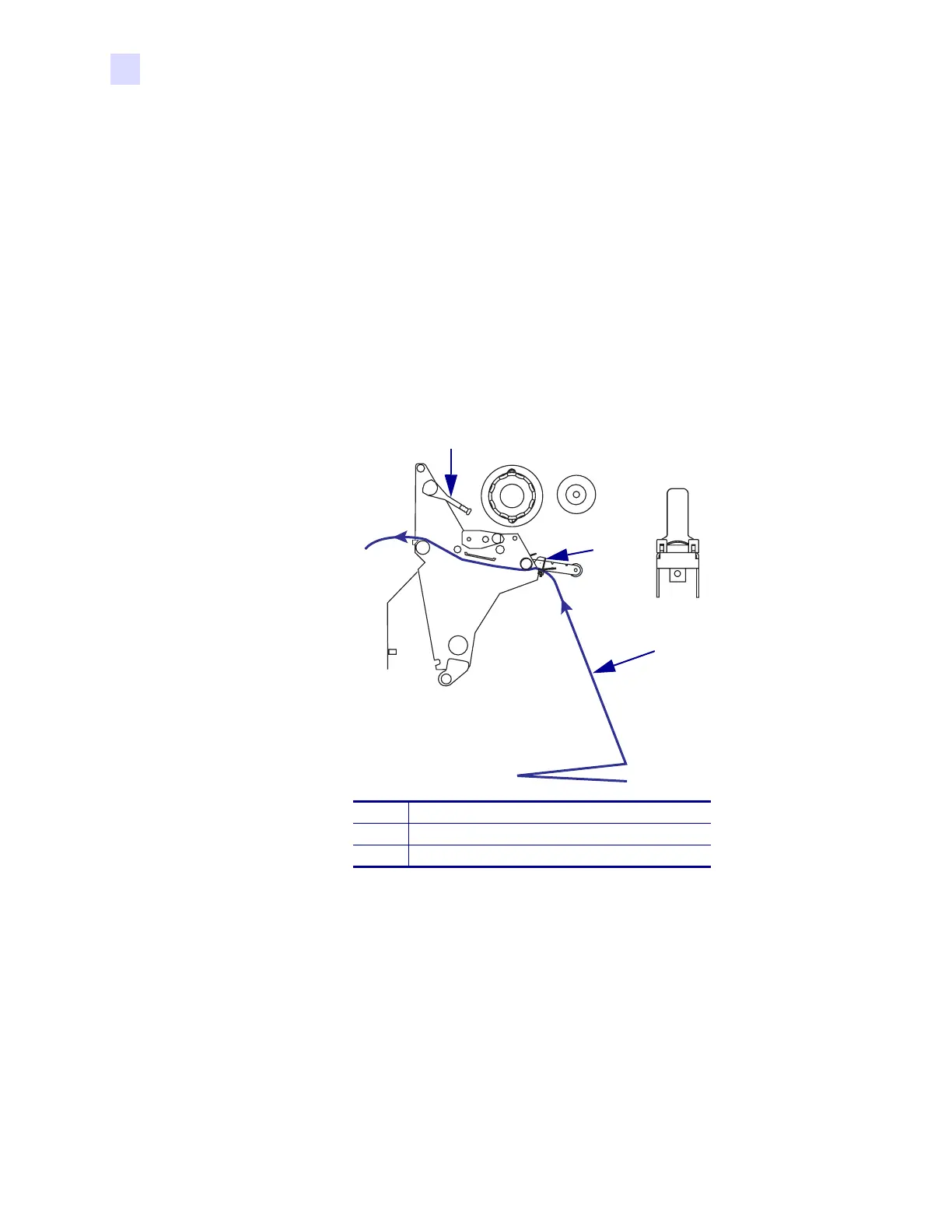

Figure 15 shows the printer with fanfold labels loaded through the bottom slot.
Figure 15 • Fanfold Media—Bottom Loading
1
Printhead lever (shown in the Open position)
2
Media guide
3
Fanfold labels
1
2
3
