Printer Operation
Loading the Media
23063L-003 Rev. 1 12/6/04 R110Xi/R170Xi User Guide 23

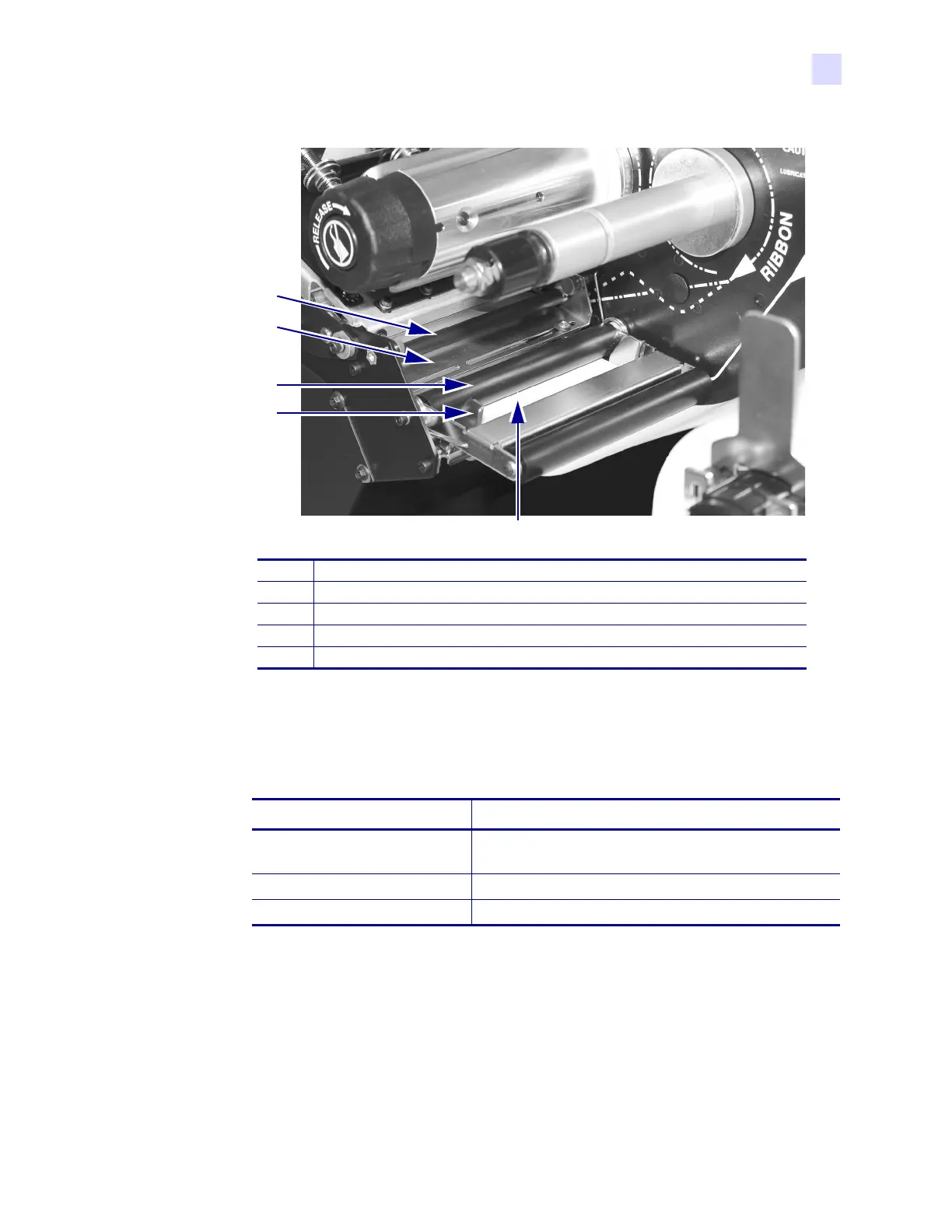

Figure 14 • Threading Media
7. Pull the media through under the printhead.
8. Adjust the media guide so that it just touches but does not restrict the media. The labels
should lie flat.
9. Which type of media are you using?
1
Ribbon guide roller
2
Upper media sensor assembly
3
Media guide roller
4
Media guide
5
Media
If you are... Then...
Using direct thermal media Close the printhead, and then go to Print a Printer
Configuration Label on page 32.
Using thermal transfer media Go to Loading Ribbon on page 26.
Not sure Go to When to Use Ribbon on page 16.
4
2
1
5
3
