34 R110Xi/R170Xi User Guide 23063L-003 Rev. 1 12/6/04
Printer Operation
Print a Network Configuration Label
Print a Network Configuration Label
If you are using a print server, you can print a network configuration label after the printer is
connected to the network.
To print a network configuration label, complete these steps:
1. On the front panel, press SETUP/EXIT.
2. Use the left or right oval to scroll through the parameters until you reach LIST
NETWORK
.
3. Press the right oval to confirm printing.
A network configuration label prints (Figure 27). An asterisk designates whether the
wired or wireless print server is active. If no wireless print server is installed, the wireless
portion of the label does not print.

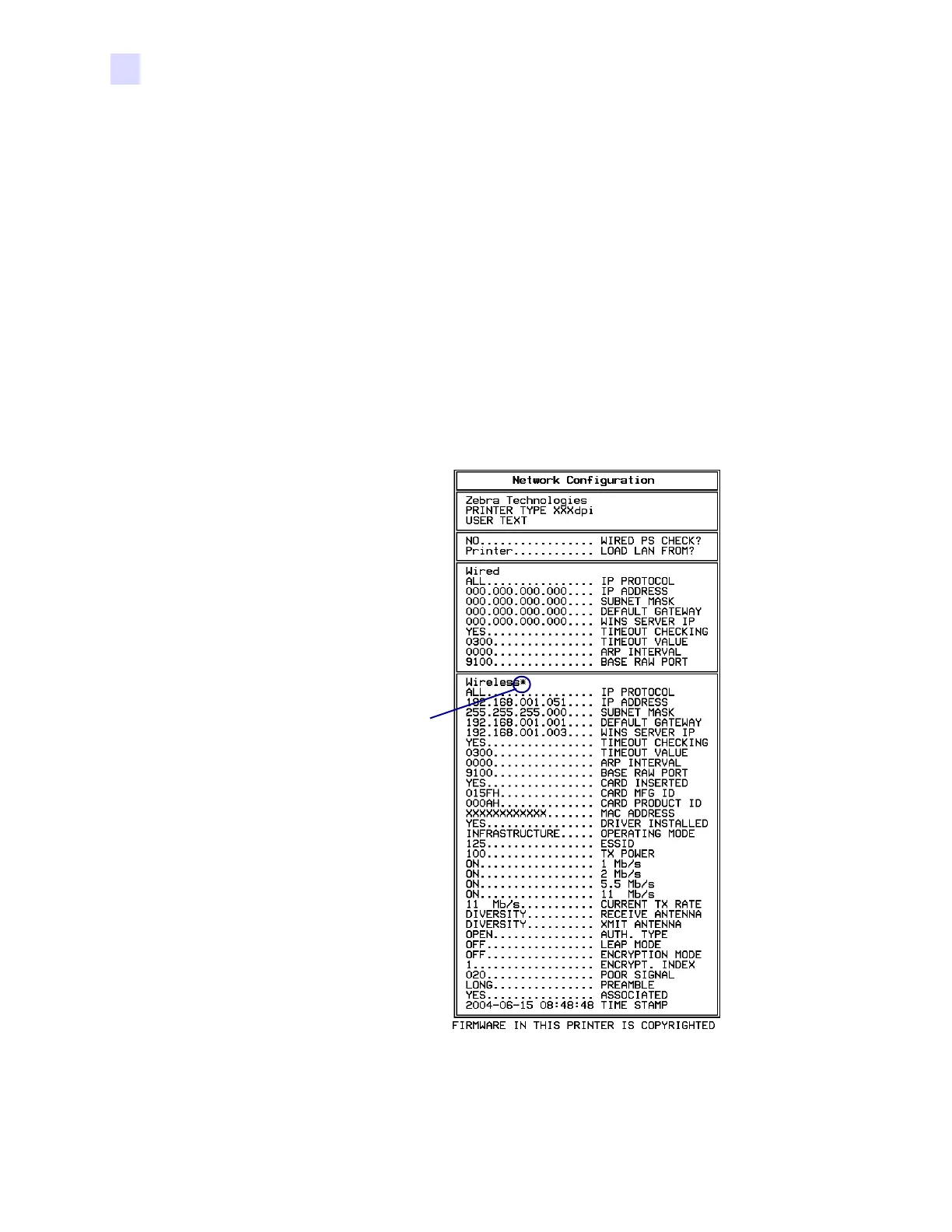

Figure 27 • Network Configuration Label (With a Wireless Print Server Installed)
asterisk
indicating
the active
print server
