Zebra R110Xi User Manual

Printer Operation
Loading the Media
23063L-003 Rev. 1 12/6/04 R110Xi/R170Xi User Guide 21
Load Roll Media

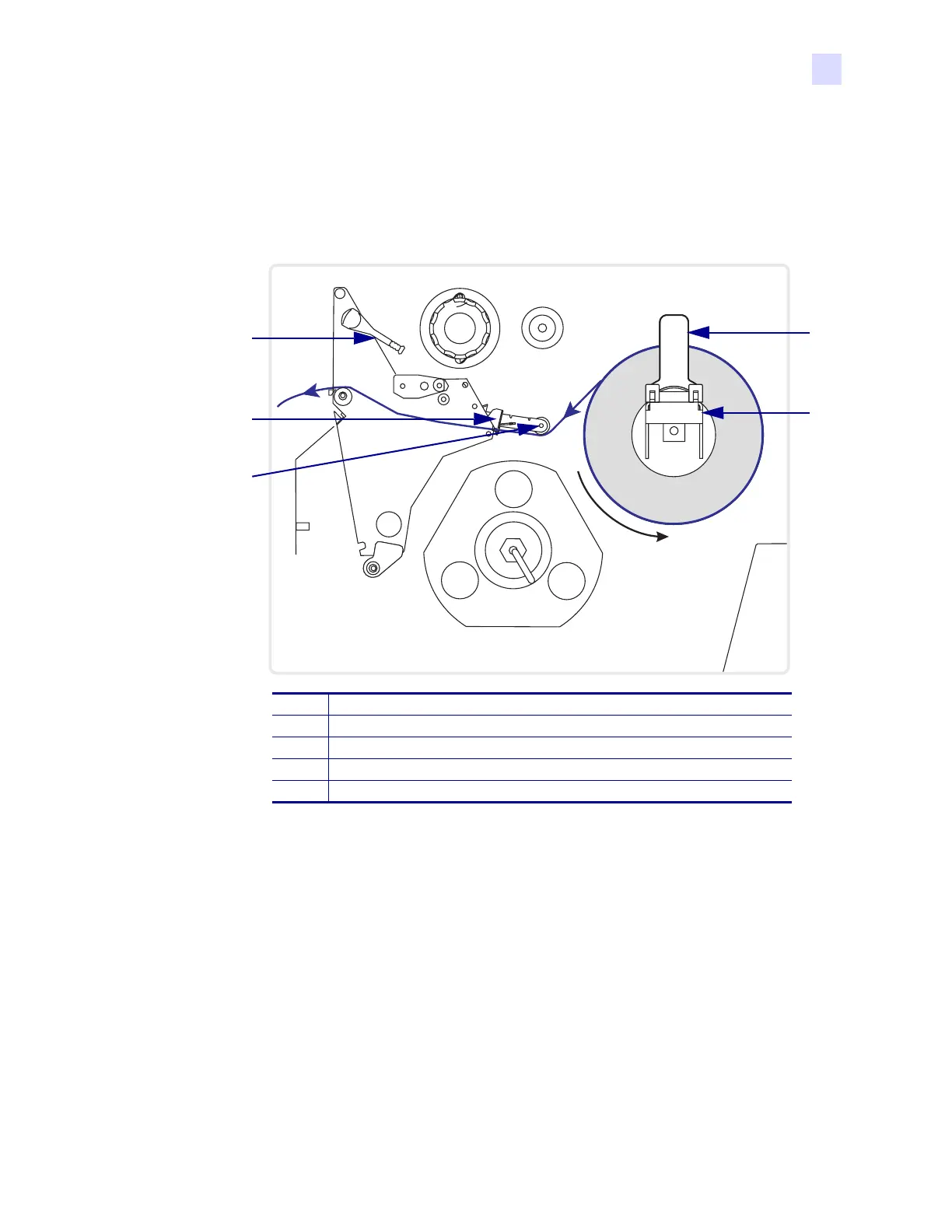

Roll media feeds through the printer from the media hanger or media supply spindle. Figure 12
identifies the components of the printer with which you need to be familiar to load roll media
in Tear-Off mode.
Figure 12 • Interior Components for Media Loading (Tear-Off Mode)
1
Printhead lever
2
Media guide
3
Media guide roller
4
Media guide on media hanger
5
Media hanger
1
2
4
5
3
