Memory Cards
PCMCIA Memory Card
PCMCIA Memory Card
A Type I- or Type II-compliant PCMCIA memory card holds extra memory or font options for
the printer. The card is hot-swappable (it can be installed while the printer is on).
To install the PCMCIA card, complete these steps:
1. Remove the PCMCIA card shield from the rear of the printer (Figure 41).

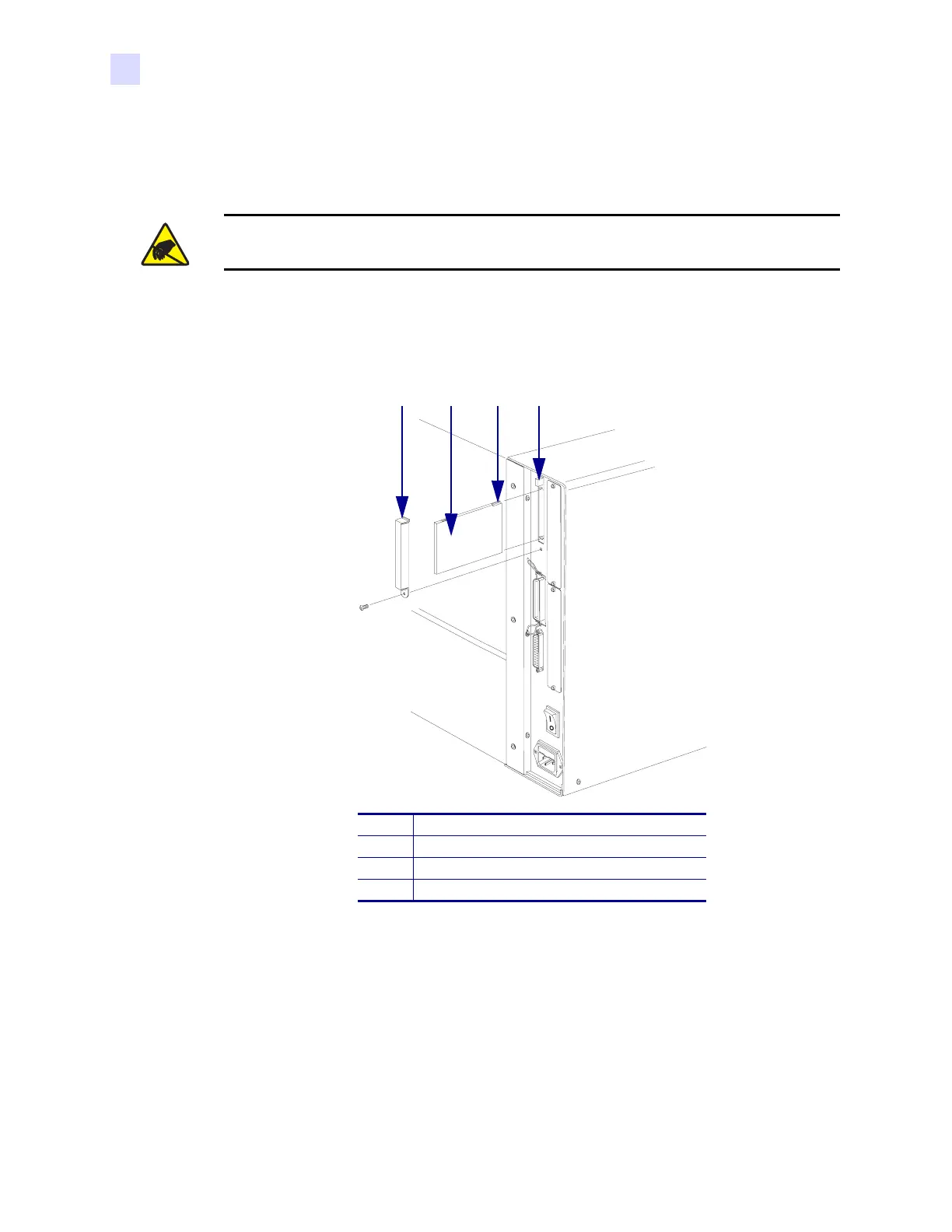

Figure 41 • PCMCIA Card Installation
2. Insert the PCMCIA card, with the notch up, into the card slot as shown. Insert it far
enough to make the eject button pop out.
Electrostatic Discharge Caution • Observe proper electrostatic safety precautions when
handling any static-sensitive components such as circuit boards and printheads.
1
PCMCIA card shield
2
PCMCIA card
3
Notch
4
Card-eject button
1 2 3 4
