Introduction
Front Panel
23063L-003 Rev. 1 12/6/04 R110Xi/R170Xi User Guide 3
Front Panel
Figure 4 shows the buttons and lights on the front panel. For a description of the front panel
buttons, see Table 1 on page 4, and for a description of the front panel lights, see Table 2
on page 5.

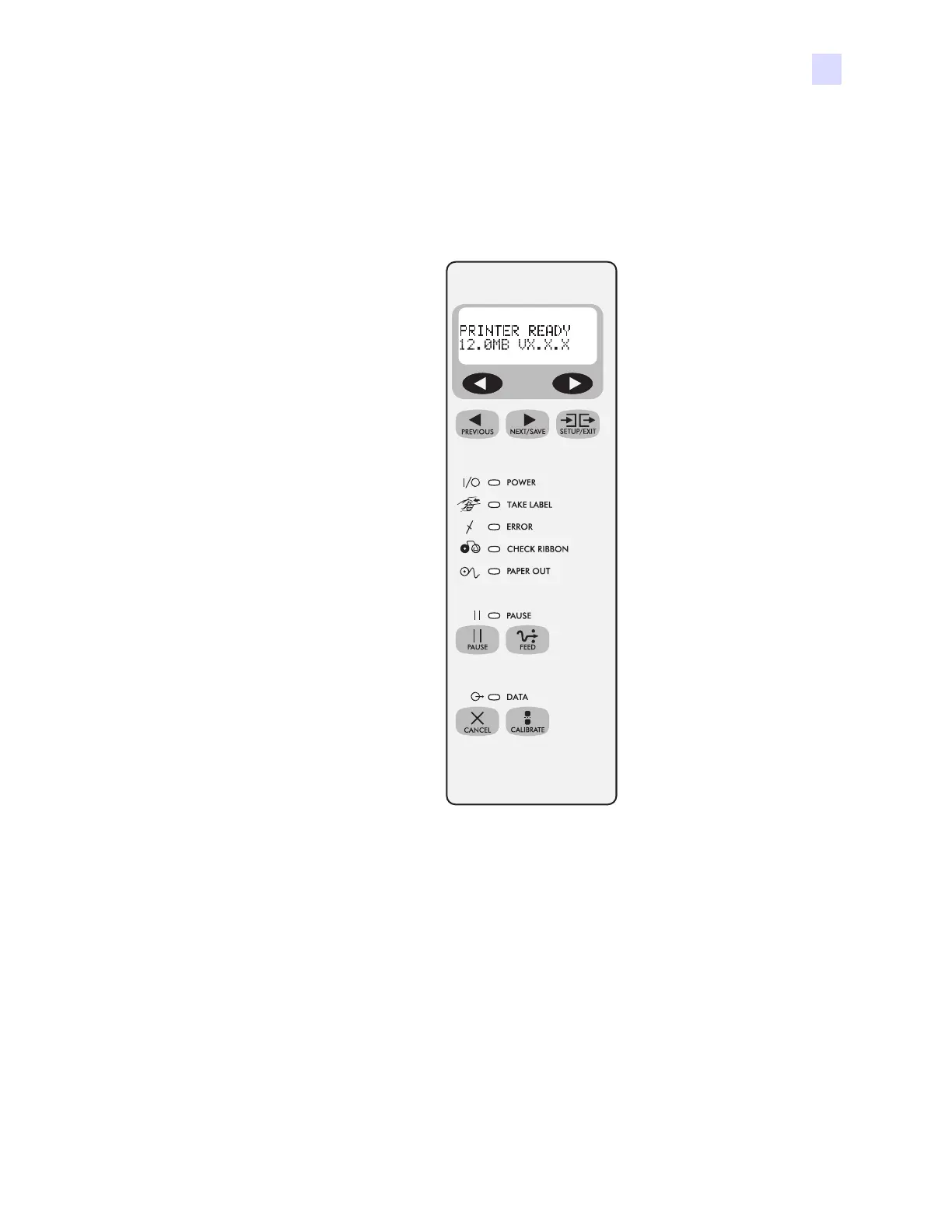

Figure 4 • Front Panel Buttons and Lights
