6R110Xi/R170Xi User Guide 23063L-003 Rev. 1 12/6/04
Introduction
Printer Components
Printer Components

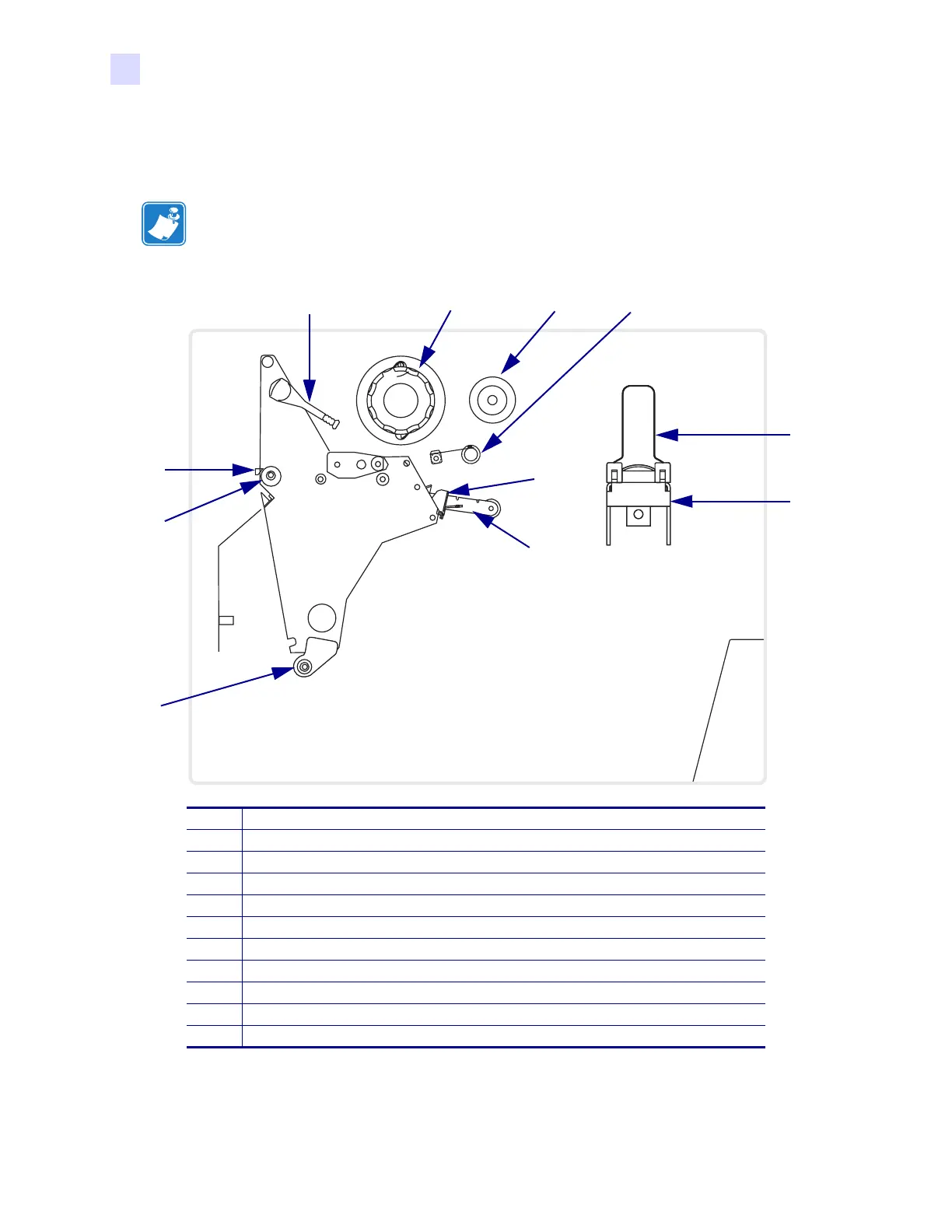

Figure 5 shows a side view of the printer’s internal components.
Figure 5 • Internal Components
Note • Depending on the printer options that you selected, your printer could look slightly
different. For more about printer options, go to www.zebra.com.
1
Printhead lever
2
Ribbon take-up spindle
3
Ribbon supply spindle
4
Ribbon dancer assembly (only on select models)
5
Media guide
6
Media dancer roller assembly
7
Media supply guide
8
Media supply hanger
9
Lower roller
10
Platen roller
11
Tear-off bar
123
4
7
8
6
11
10
5
9
