Introduction
Front Panel
23063L-003 Rev. 1 12/6/04 R110Xi/R170Xi User Guide 5
Front Panel Lights

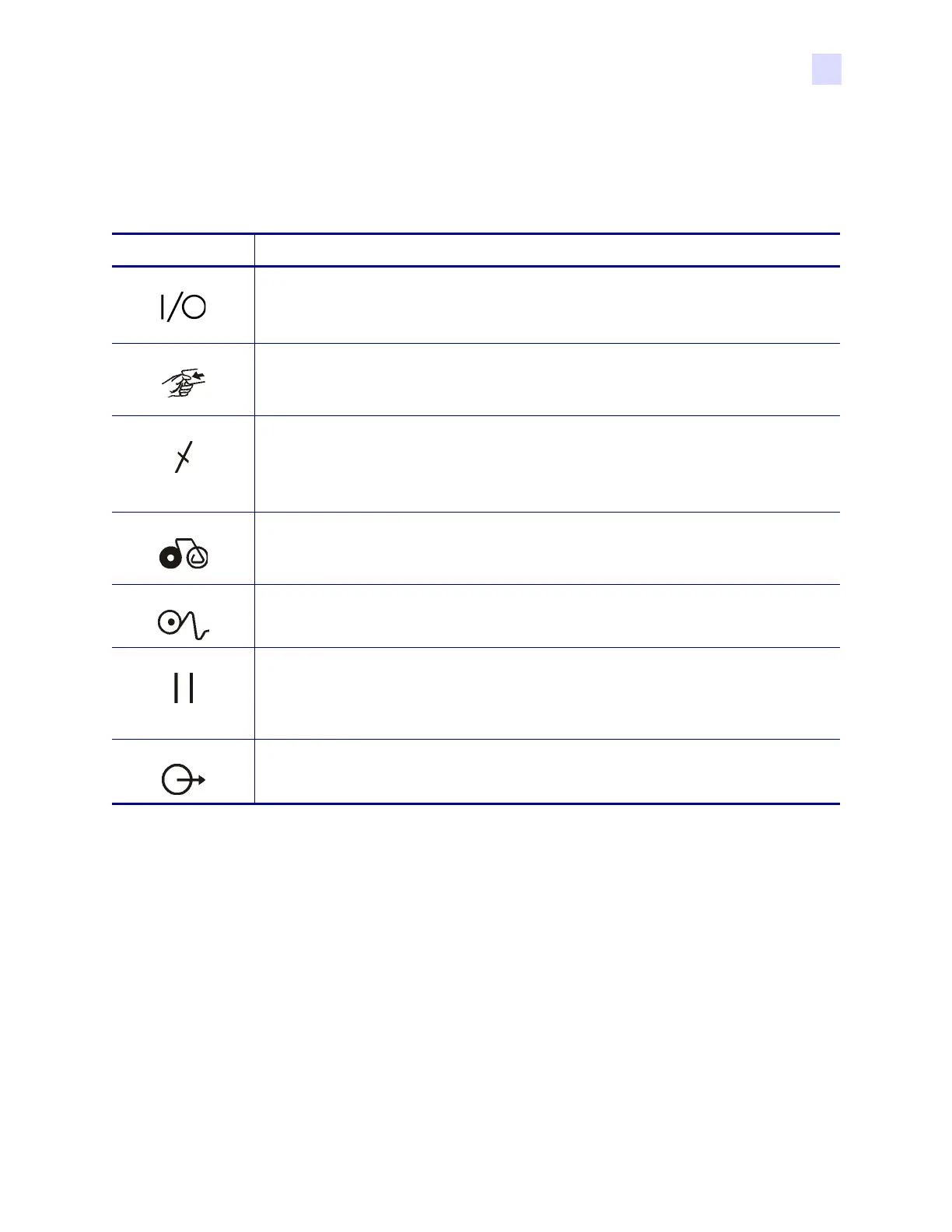

This table details the lights shown in Figure 4 on page 3.
Table 2 • Front Panel Lights
Light Details
POWER Indicates printer power status.
• Off — printer is off.
• On — printer is on.
TAKE LABEL • Off — Normal operation.
• Flashing — (Peel-Off Mode only.) The label is available. Printing is paused until the
label is removed.
ERROR Indicates printer operation.
• Off — Normal operation.
• Flashing — printer pauses until the error condition is resolved and the PAUSE
button is pressed.
CHECK RIBBON • Off — Normal operation; ribbon (if used) is properly loaded.
• On — No ribbon is detected under the ribbon sensor. Printing is paused, the LCD
shows an error message, and the PAUSE light is on.
PAPER OUT Indicates that labels need to be reloaded.
PAU SE • Off — normal operation.
• On — all printing operations have stopped. Either PAUSE was pressed, a pause
command was included in the label format, the on-line verifier detected an error, or a
printer error was detected.
DATA • Off — Normal operation. No data being received or processed.
• On/Blinking — Data processing or printing is taking place. Data is being received.
