Accessories
105

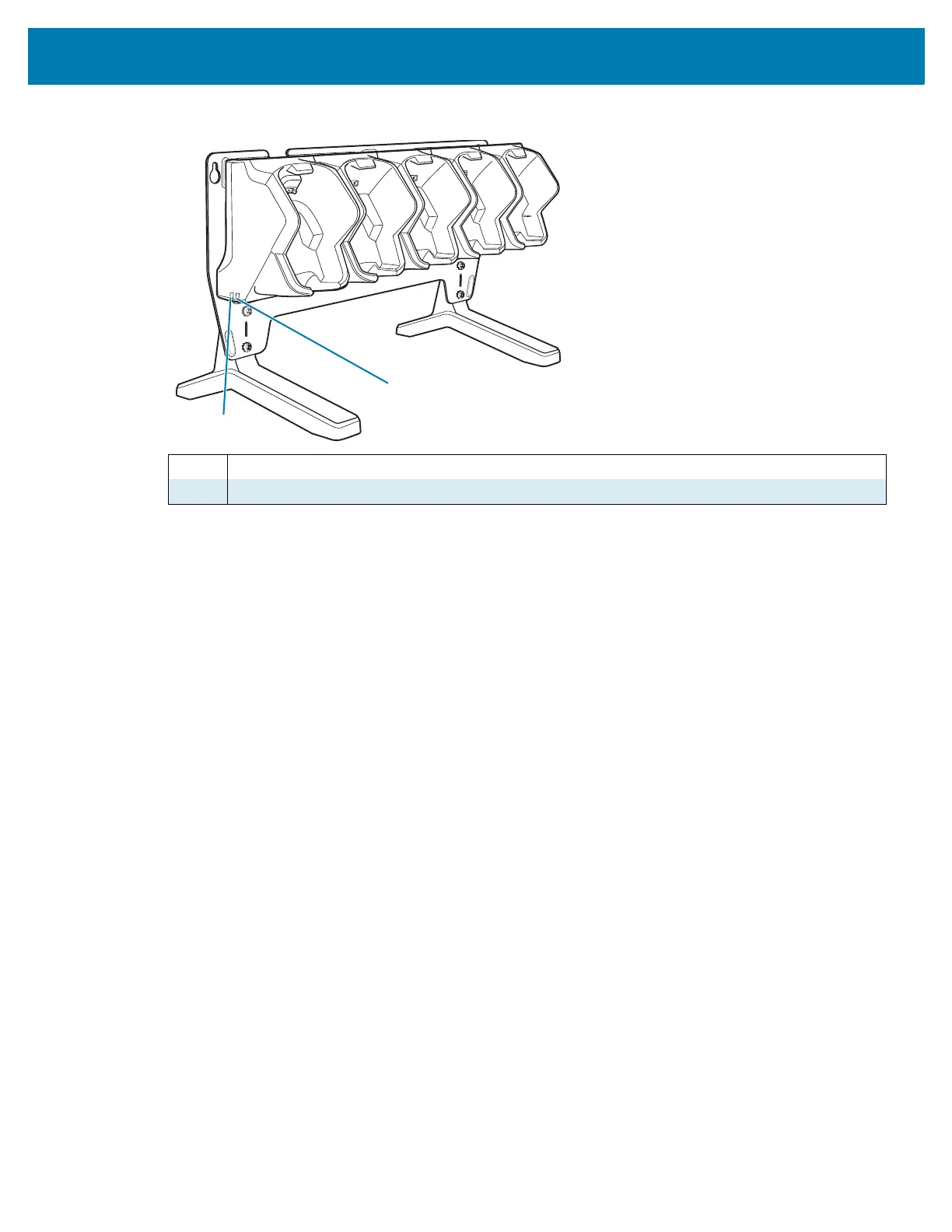

Figure 54 5-Slot Ethernet Cradle (Shown on Optional Desk Mount)
To setup the 5-Slot Ethernet cradle:
1. Connect the DC line cord to power supply.
2. Connect DC line cord to power input on cradle.
3. Connect Ethernet cable to Ethernet port 1 on cradle.
4. Connect other end of Ethernet cable to router port.
5. Connect the AC line cord to the power supply.
6. Plug the AC line cord into an AC outlet.
1 1000 LED
2 100/10 LED
