Getting Started
19
Features

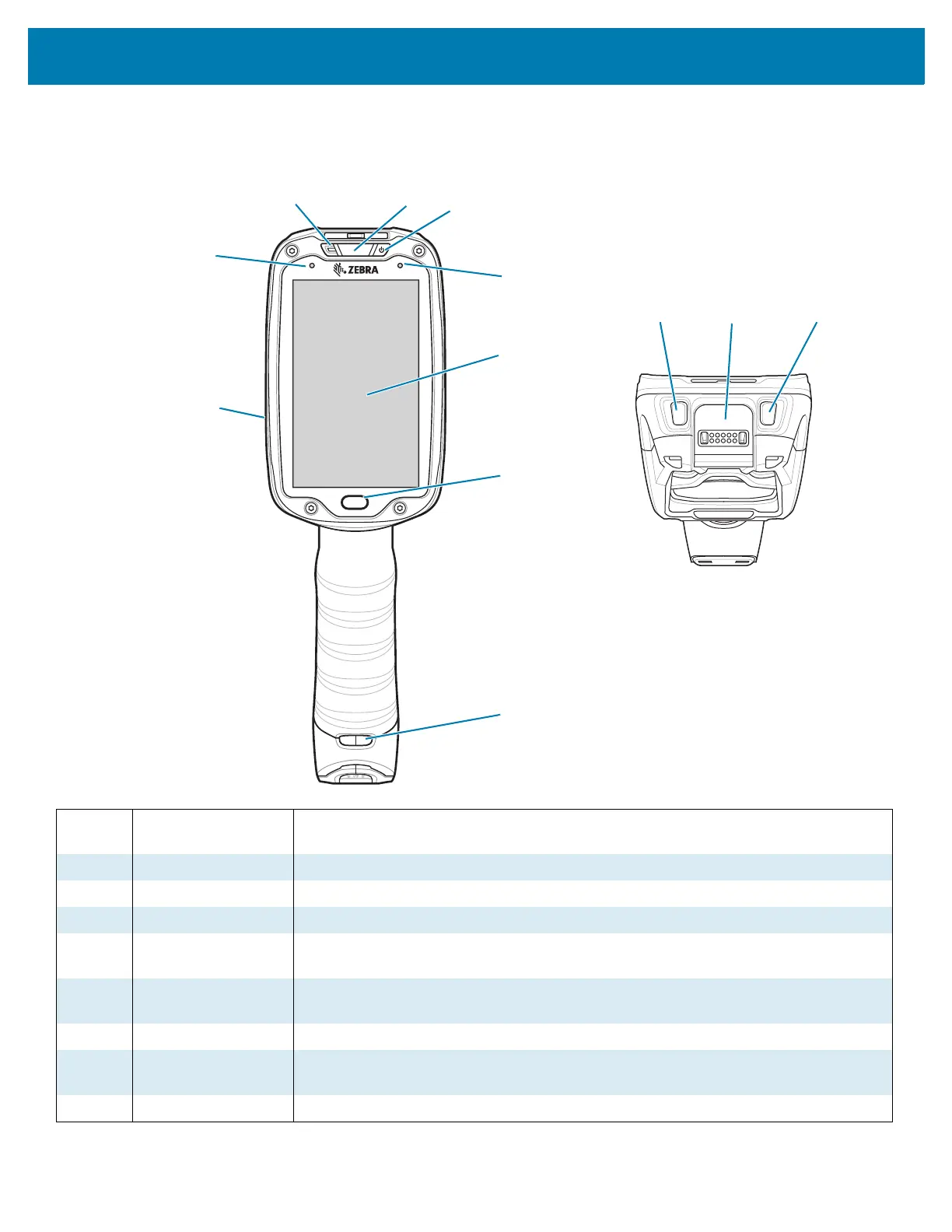

Figure 1 Front View
1 Charging/Scan LED Indicates battery charging status while charging, good decode indication during data
capture and application generated notifications.
2 Power Button Turns the display on and off. Press and hold to reset the device and power off.
3 Blue Indication LED User programmable LED.
4 Display Displays all information needed to operate the device.
5 Programmable
Button
Press to select items.
6 Hand Strap
Mounting Point
Use for installing the optional hand strap.
7 Speakers Provides audio output for video and music playback.
8 Ambient Light
Sensor
Determines ambient light for controlling display backlight intensity.
9 Microphone Use for communication in Headset mode.
To Next Page
