Zebra TC8300 User Manual

Data Capture
68

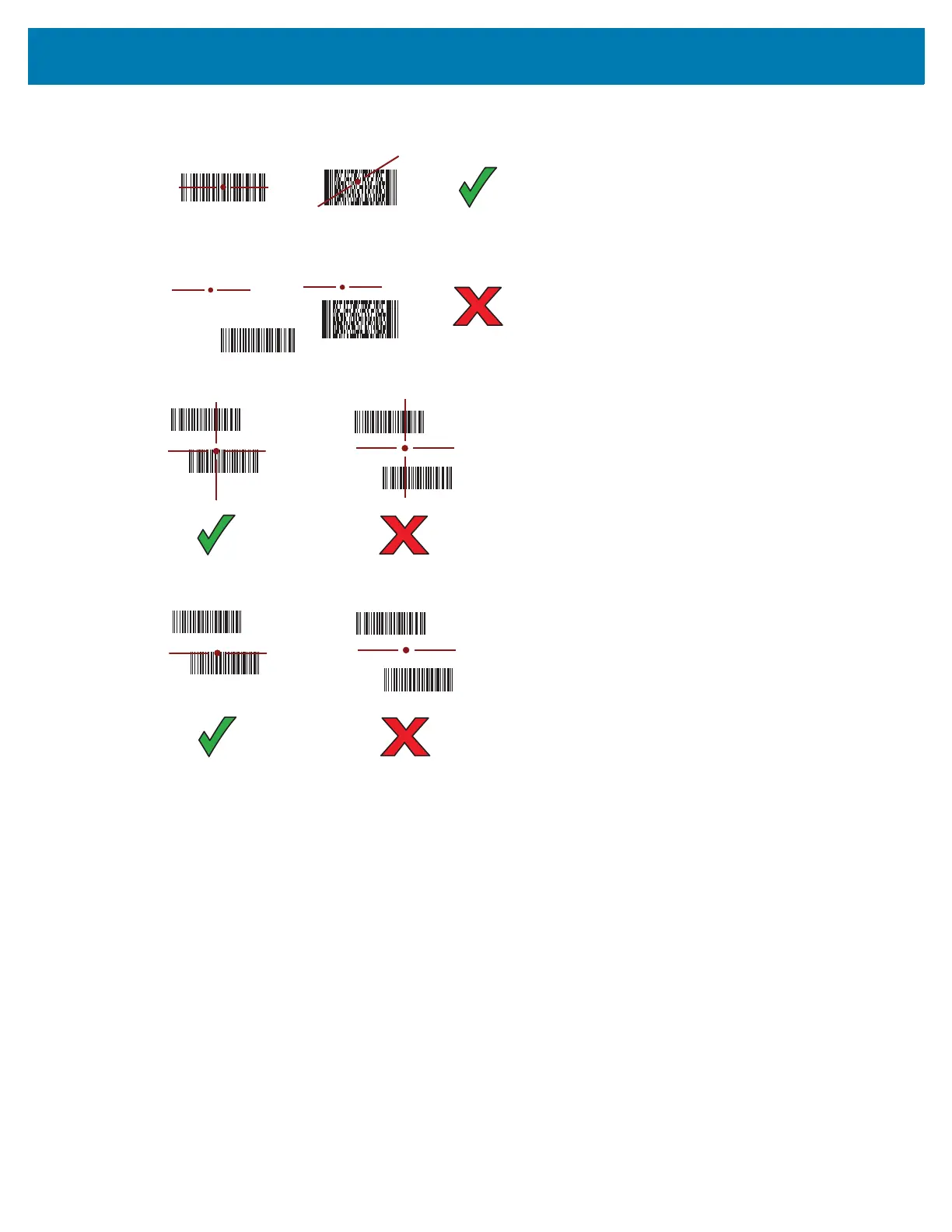

Figure 26 Imager Aiming Pattern - Extended Range
Figure 27 Imager Pick List Mode with Multiple Barcodes - Standard Range
Figure 28 Imager Pick List Mode with Multiple Barcodes - Extended Range
5. Release the trigger.
Barcode Capture with Camera
To read a barcode, a scan-enabled application is required. The device contains the DataWedge
application that allows the user to enable the scanner to decode barcode data and display the barcode
content. See DataWedge on page 76 for more information on launching DataWedge.
1. Launch a scanning application.
2. Point the camera window at a barcode.

Zebra TC8300 Specifications

General

Display diagonal	4 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	800 x 480 pixels
Display number of colors	16.78 million colors
USB 2.0 ports quantity	1
Flash memory	128 GB
Internal memory	8 GB
Internal memory type	-
Compatible memory cards	SDXC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Number of cores	2
Processor family	A110
Processor frequency	1.7 GHz
Battery capacity	6700 mAh
Operating system version	5.1
Operating system installed	Android
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Product color	Black
Phone function	No
International Protection (IP) code	IP65
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	64 mm
Width	76 mm
Height	233 mm
Weight	- g
