Accessories
132
Rack Mount Installation
NOTE: Use screws provided with rack system. Refer to rack user documentation for instructions.
1. Secure mounting brackets to both sides of top tray with four M5 screws (two on each side). For 5-Slot
cradles, position the flange for vertical installation. For 4-Slot Battery Chargers, position the flange for
25° installation.

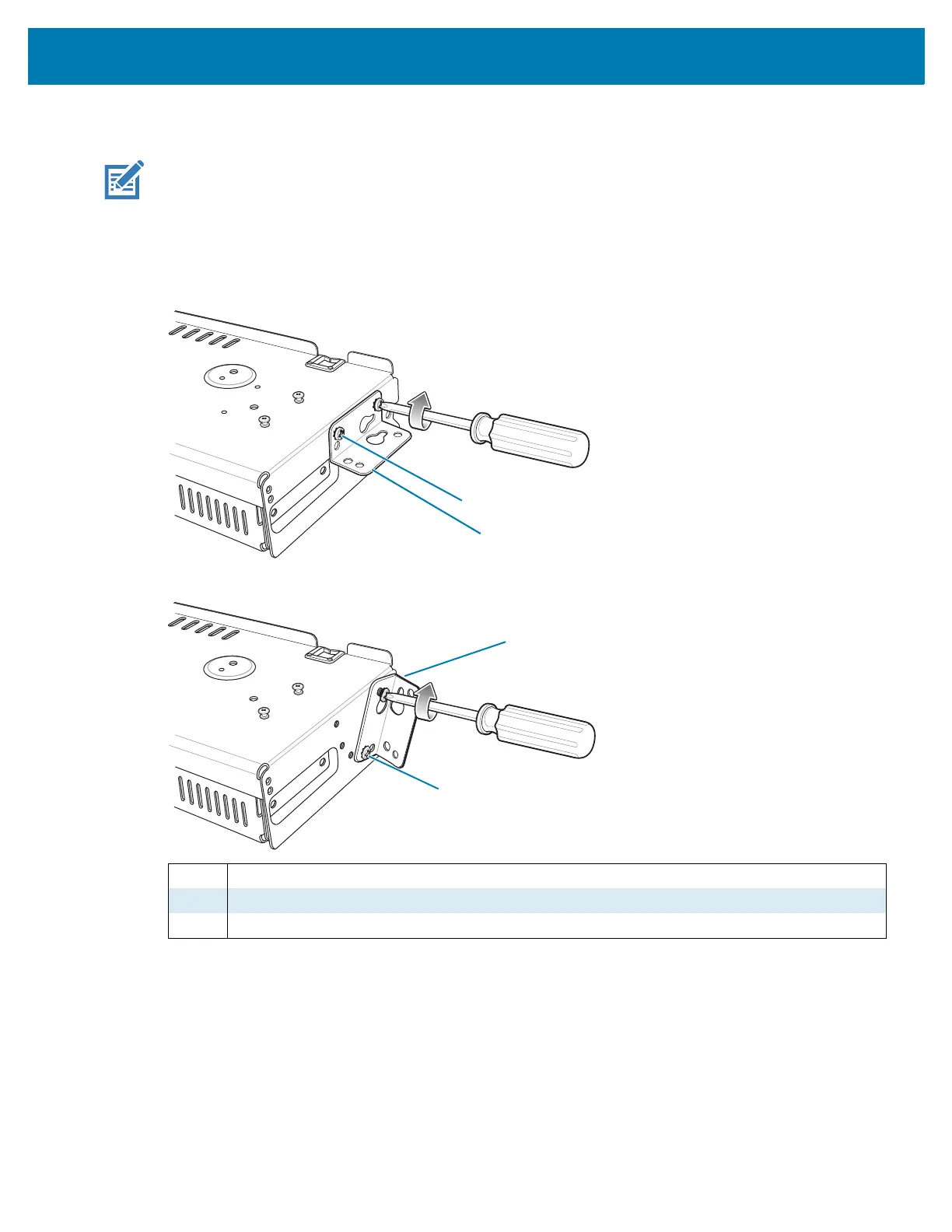

Figure 89 Flange Vertical Position (5-Slot Cradles)
Figure 90 Flange 25° Position (4-Slot Battery Chargers)
1 Top Screw Hole
2 Flange
3 Fourth Screw Hole
