Data Capture
67
3.
Press the trigger button.

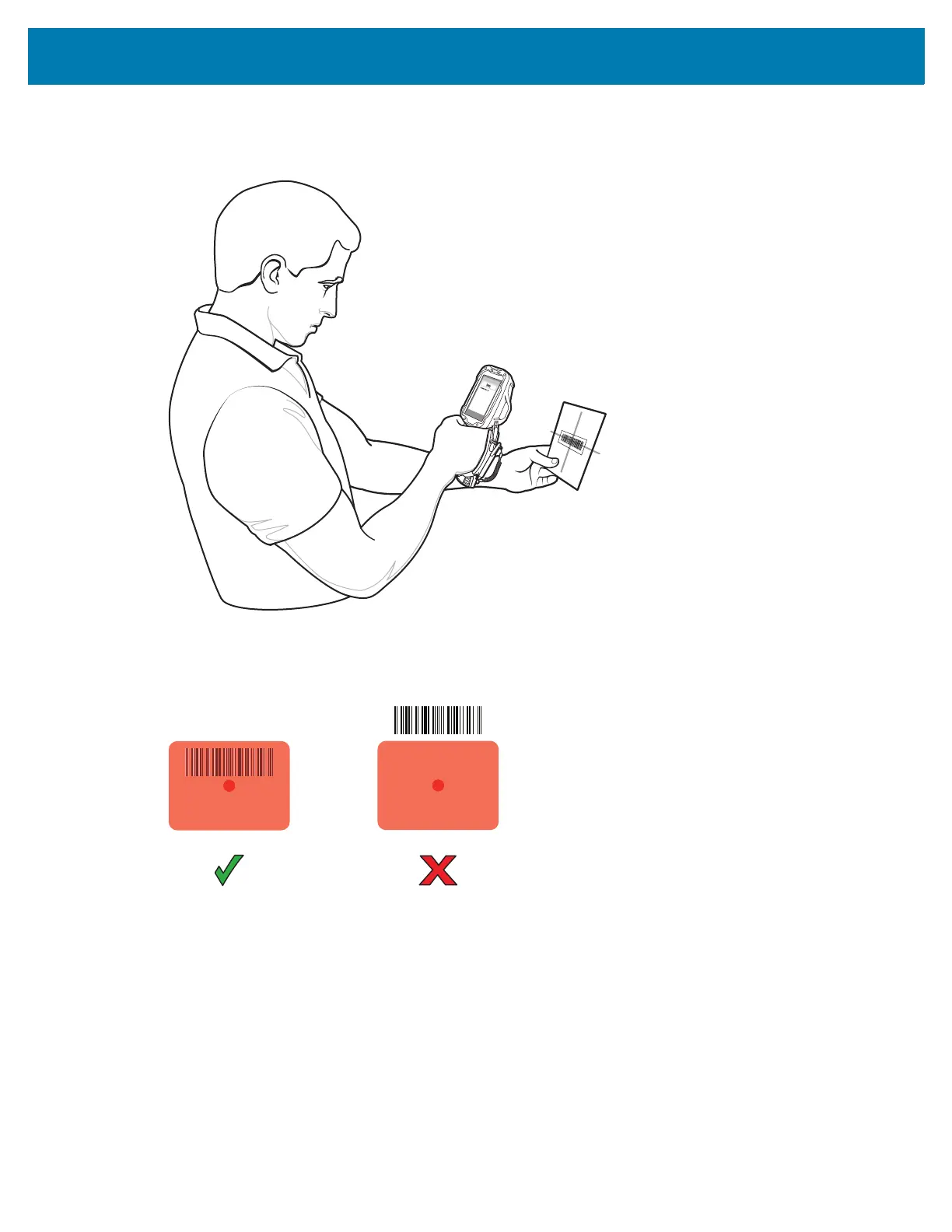

Figure 24 Imager Scanning
4. Ensure the red scan beam covers the entire barcode. The Charging/Scan LED Indicators illuminate
green and a beep sounds to indicate a successful decode.
Figure 25 Imager Aiming Pattern - Standard Range
