Accessories
127
9.

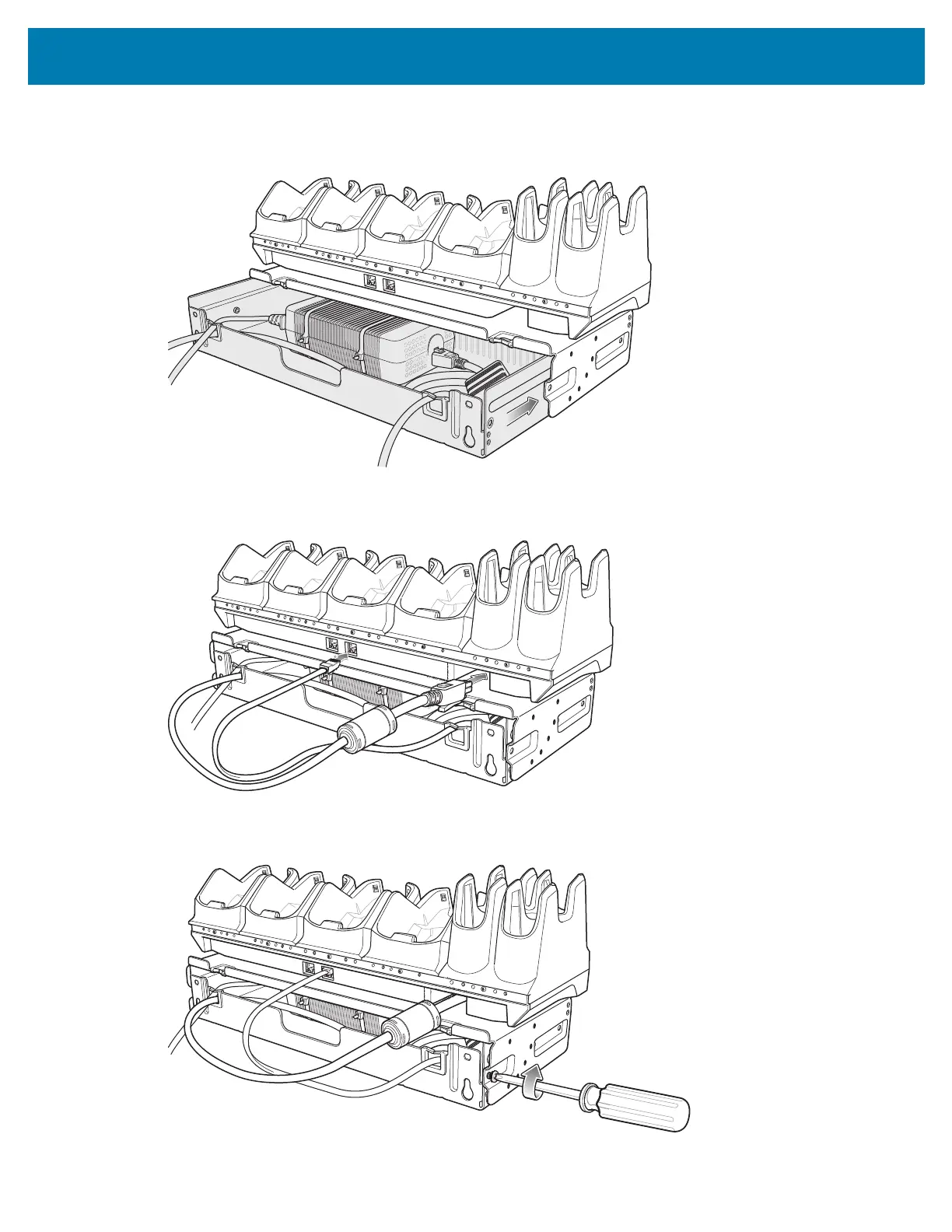

Slide top tray onto bottom tray.
Figure 80 Slide Top Trap onto Bottom Tray
10. Connect cables to cradle.
Figure 81 Connect Cables
11. Secure top tray to bottom tray with 4 M5 screws (two on each side).
Figure 82 Secure Top and Bottom Tray
