Accessories
136
4.

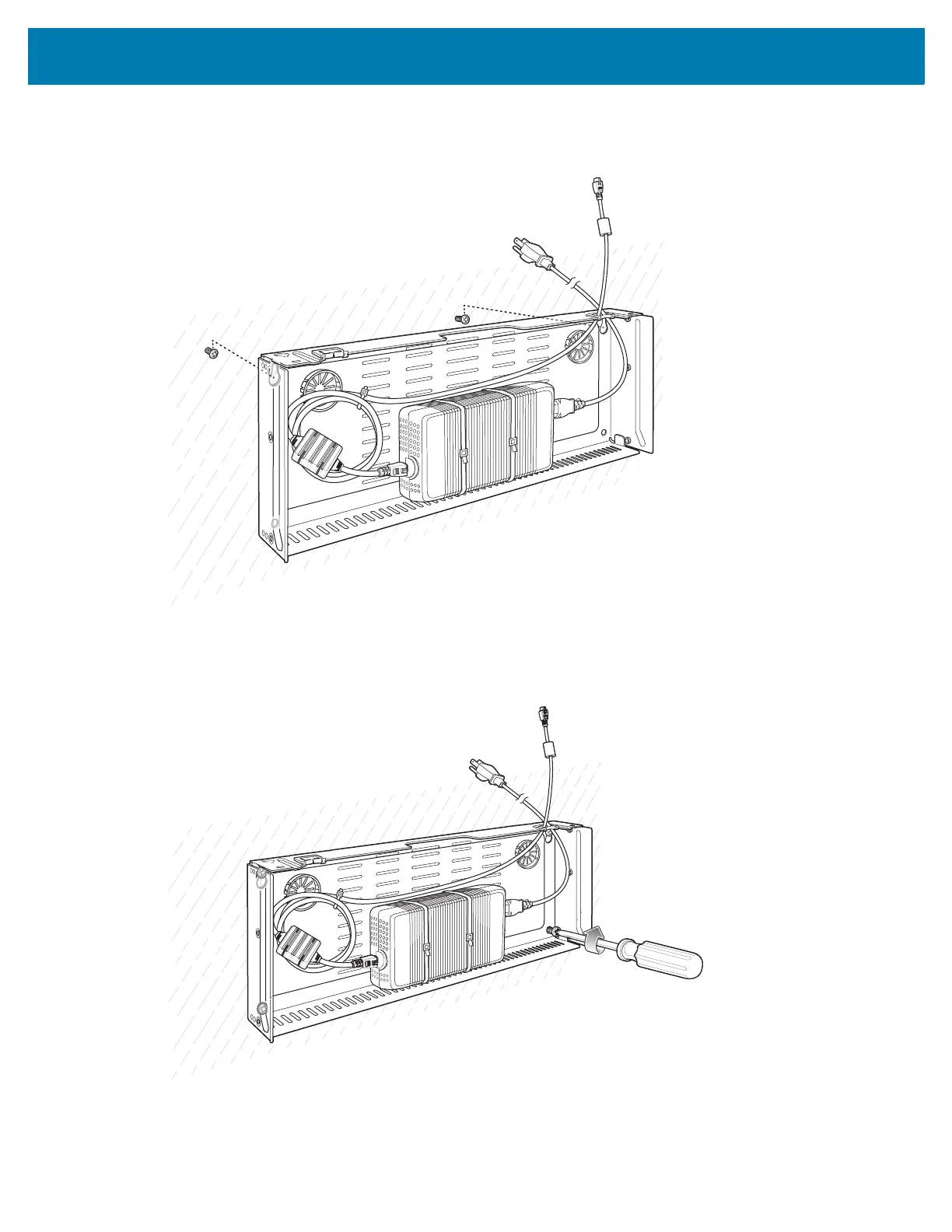

Hang the bracket on the screws.
Figure 94 Vertical Installation
5. Install two top screws.
6. Tighten all screws.
Figure 95 Horizontal Installation - Tighten Screws
7. Assemble the top tray. See steps 6 through 8 in 5-Slot Cradle Rack Installation on page 124.
8. Slide the assembled top tray onto bottom tray.
