Data Capture
70
2.
Point the RS507 at a barcode.

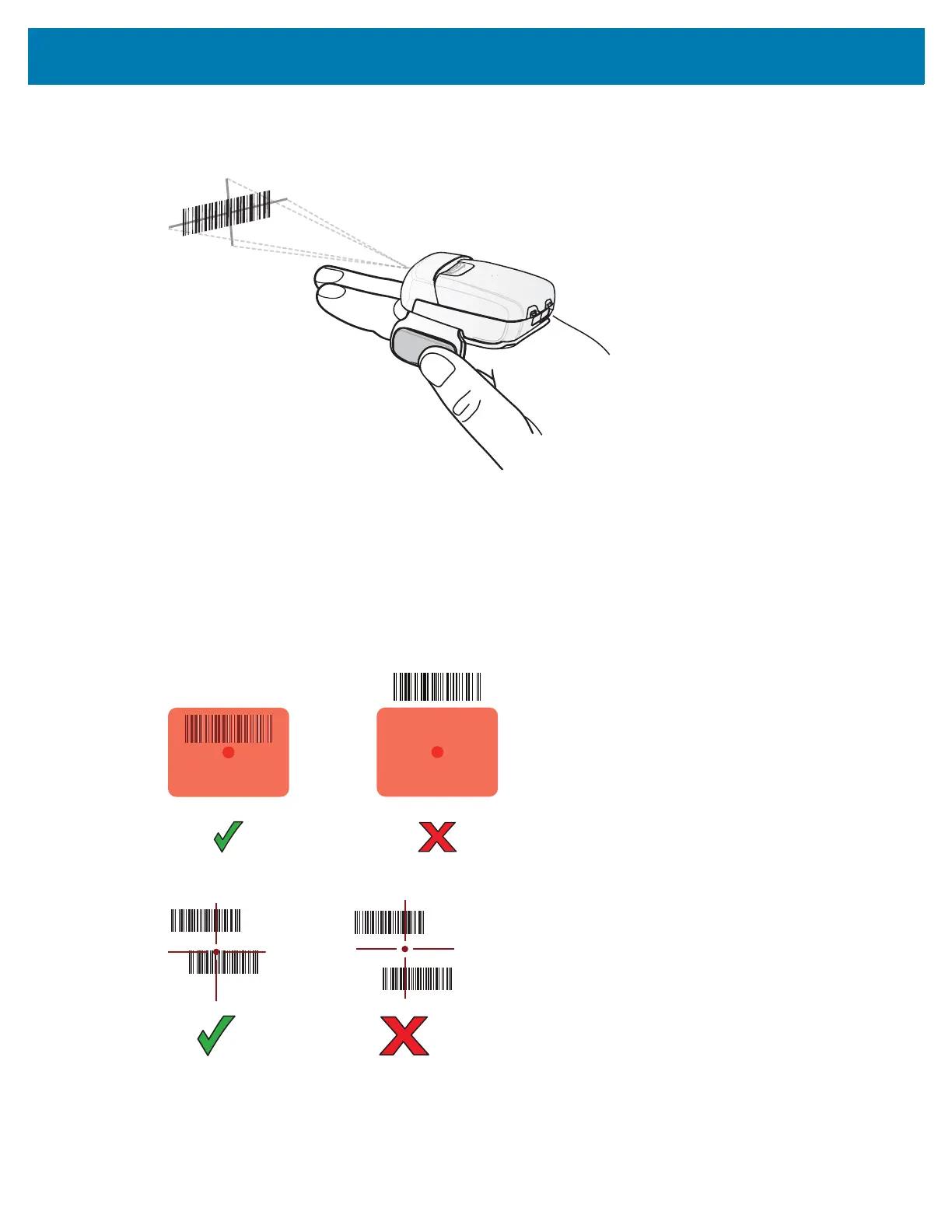

Figure 30 Barcode Scanning with RS507
3. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed
by the cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting
conditions.
The RS507 LEDs light green, a beep sounds to indicate the barcode was decoded successfully. Note
that when the RS507 is in Pick List Mode, the RS507 does not decode the barcode until the center of
the crosshair touches the barcode.
Figure 31 Aiming Pattern
Figure 32 Pick List Mode with Multiple Barcodes in Aiming Pattern
4. The captured data appears in the text field.
