Zebra ZD410 User Manual

Tools
141
4. See Figure 4 and Table 3. Inspect the test labels and determine which one has the best print quality for
your application. If you have a barcode verifier, use it to measure bars/spaces and calculate the print
contrast. If you do not have a barcode verifier, use your eyes or the system scanner to choose the
optimal darkness setting based on the labels printed in this self test.

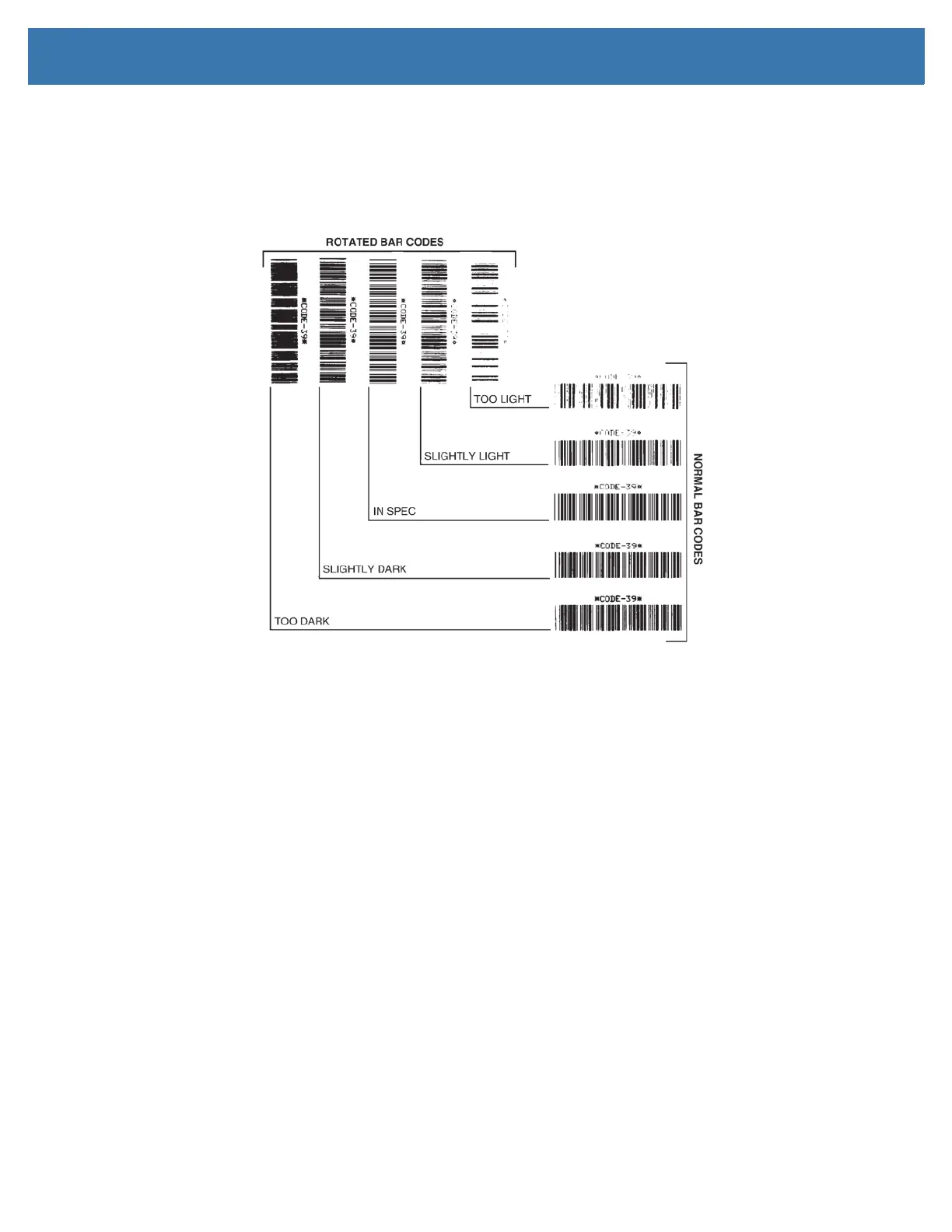

Figure 4 Barcode Darkness Comparison

Zebra ZD410 Specifications

General

Wi-Fi	Yes
Ethernet LAN	No
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Maximum print height	991 mm
Maximum printing width	56 mm
Flash memory	512 MB
Internal memory	256 MB
Built-in barcodes	1D, 2D
Page description languages	EPL, EPL2, XML, ZPL, ZPL II
Display	-
Product color	Gray
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Core diameter	12.7 mm
Media thickness	0.08 - 0.305 mm
Maximum roll diameter	127 mm
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	220 mm
Width	115 mm
Height	151 mm
Weight	1000 g
