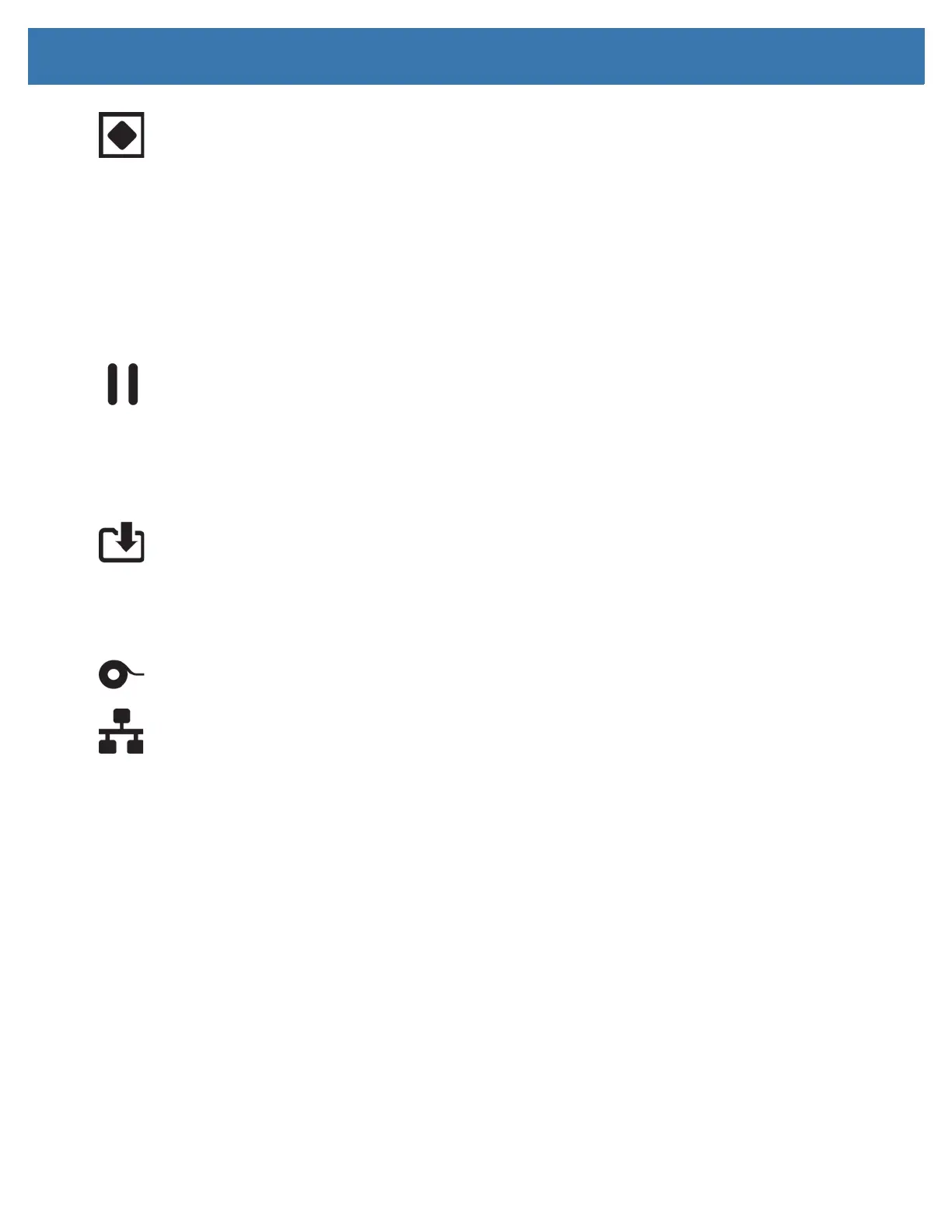

2. Status Indicator — Primary status indicator for overall printer health and operational status. This
indicator is also known as the Power indicator.
• Green: Ready for print and data activity.
• Green, Slowly Changing between ON and OFF: Printer is in Sleep Mode.
• Red: Media out, media detection error, head (cover/printhead) open, cut error, printhead
authentication failure.
• Amber: Printhead Over Temp (temperature), printhead element failure, out of memory while storing
content (formats, graphics, fonts, etc.), and interface power fault for USB Host or Serial ports.
• Blinking Amber: Printhead Under Temp (temperature)
• Blinking Red: Printhead Over Temp (temperature) — this status is coupled with blinking red Pause
indicator. Requires cooling and printer restart.
3.
Pause Indicator — The printer is in Pause mode when the Pause indicator light is on. A label (print
form) or all labels (print forms) in the print buffer’s queue can be canceled when the Pause indicator is
on using the Cancel button.
• Amber: The printer is paused. Print, label FEED (advance), and other label routines are suspended
until the pause state is removed by pressing the Pause button.
• Blinking Red: Printhead Over Temp (temperature) — this status is coupled with blinking red Status
indicator. Requires cooling and printer restart.
4.
Data Indicator — Indicates the status of data transfer activity.
• Off: Data is not being transferred.
• Green: A data communication operation has not finished, but is not actively being transferred.
• Blinking Green: Data communications are in process.
• Blinking Amber: Out of memory while storing content (formats, graphics, fonts, etc.).
5. Supplies
Indicator — Indicates media (label, receipt, tags, etc.) status.
• Red: There is a media out condition.
6.
Network Indicator — Indicates network activity and status.
• Amber: 10 base Ethernet (LAN) connection detected.
• Green: 10/100 Ethernet (LAN) connection detected or when Wi-Fi (WLAN) has a strong signal and
is connected.
• Red: when an Ethernet (LAN) or Wi-Fi (WLAN) fault occurs.
• Blinking Red: during Wi-Fi (WLAN) association.
• Blinking Amber: during Wi-Fi (WLAN) authentication.
• Blinking Green: when Wi-Fi (WLAN) has completed, but has a weak signal.
