Zebra ZQ520 Maintenance Manual

P1075391-001 • ZQ520 Repair Procedures • 2-22 •

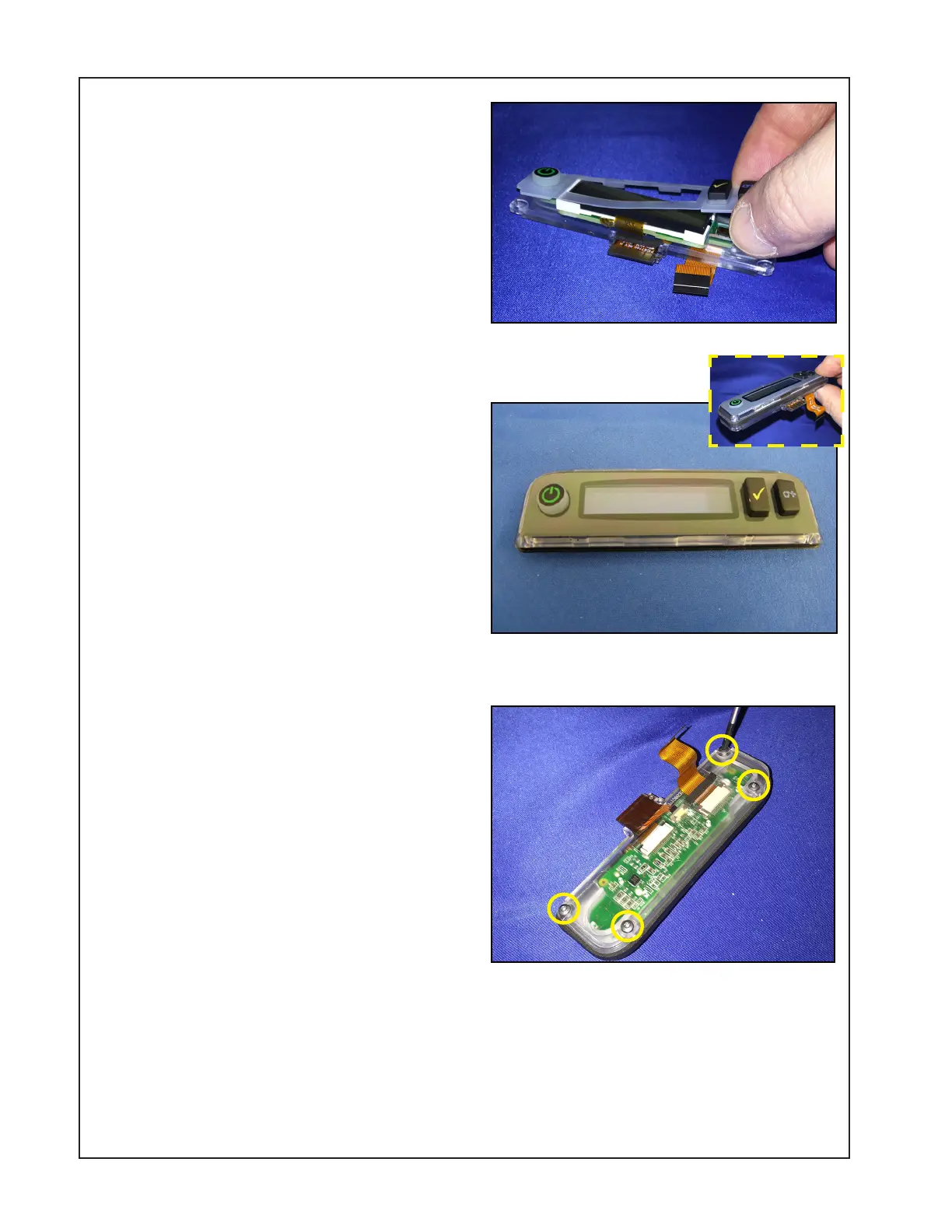

Installing the Keypad
1. Install the Keypad onto the Display
Module Assembly (as shown).
2. Connect the Front Cover of the
Display Module Assembly to the
Back Cover ensuring that the
Keypad buttons are seated in the
through holes of the Front Cover.
3. Secure the Back Cover to the Front
Cover with the four (4) screws using
a T-6 driver.

Zebra ZQ520 Specifications

General

Print Method	Direct Thermal
Resolution	203 dpi
Operating Humidity	10% to 90% non-condensing
Storage Humidity	10% to 90% non-condensing
Max Print Width	4.09 in (104 mm)
Connectivity	Bluetooth
Battery	PowerPrecision+
Durability	IP54-rated
Drop Specification	Multiple 6.6 ft./2 m drops to concrete
Media Sensors	Reflective and transmissive
Core Inner Diameter	0.75 in (19 mm)
Thickness	2.3 mil to 5.5 mil
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Weight	1.73 lbs (0.79 kg) with battery
Supported Media Types	labels
Max Print Speed	5 in./127 mm per second
