Zebra ZQ520 Maintenance Manual

P1075391-001 • ZQ520 Repair Procedures • 2-38 •

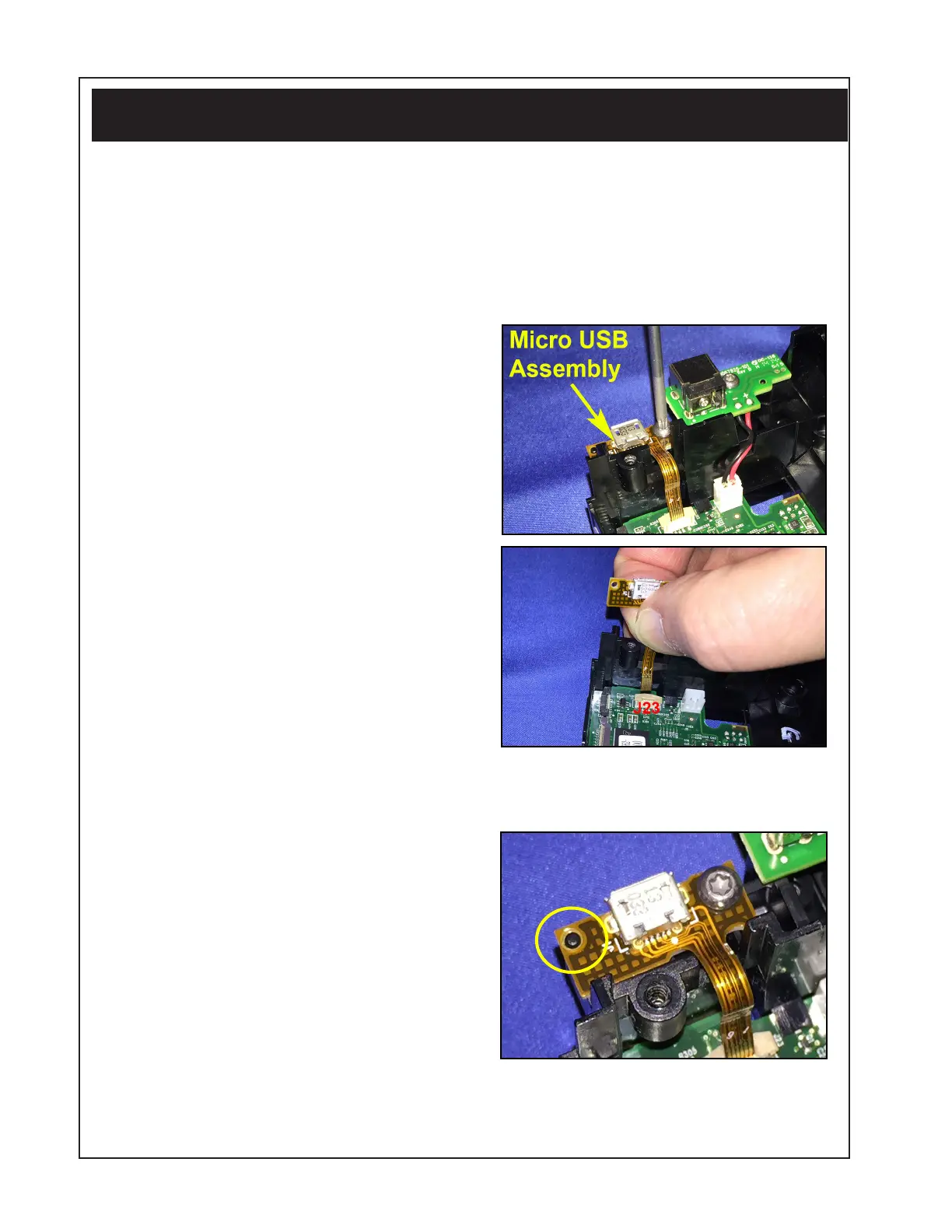

Micro USB Cable Connector Assembly
Installation Instructions
This kit includes the parts and documentation necessary to install the
P1063406-050 Micro USB Cable Connector Assembly. Read these instructions
thoroughly before attempting to install this kit.
Tools Required: T-8 TORX Driver (2.5 +/- 1 in. lb.)
Removing the Micro USB Cable
Connector Assembly
1. Remove the Printer Chassis from
the Main Housing as described on
Page 2-16.
2. Locate the Micro USB Cable
Connector Assembly on the
bottom of the chassis (where
shown).
3. Use a T-8 TORX driver to remove
the screw attaching the Micro
USB board to the PCBA Bracket.
(Set aside the screw.)
4. Disconnect the Micro USB Cable
from J23 on the MLB to remove
the assembly.
Installing the Micro USB Cable
Connector Assembly
1. Connect the Micro USB Cable to
J23 on the MLB.
2. Insert the post (see arrow) on the
PCBA Bracket into the hole on
the Micro USB Board to properly
align the board (circled).
3. Secure the Micro USB Board to
the PCBA Bracket using the screw
and a T-8 driver (2.5 +/- in. lb.).

Zebra ZQ520 Specifications

General

Print Method	Direct Thermal
Resolution	203 dpi
Operating Humidity	10% to 90% non-condensing
Storage Humidity	10% to 90% non-condensing
Max Print Width	4.09 in (104 mm)
Connectivity	Bluetooth
Battery	PowerPrecision+
Durability	IP54-rated
Drop Specification	Multiple 6.6 ft./2 m drops to concrete
Media Sensors	Reflective and transmissive
Core Inner Diameter	0.75 in (19 mm)
Thickness	2.3 mil to 5.5 mil
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Weight	1.73 lbs (0.79 kg) with battery
Supported Media Types	labels
Max Print Speed	5 in./127 mm per second
