Zebra ZQ520 Maintenance Manual

P1075391-001 • ZQ520 Repair Procedures • 2-39 •

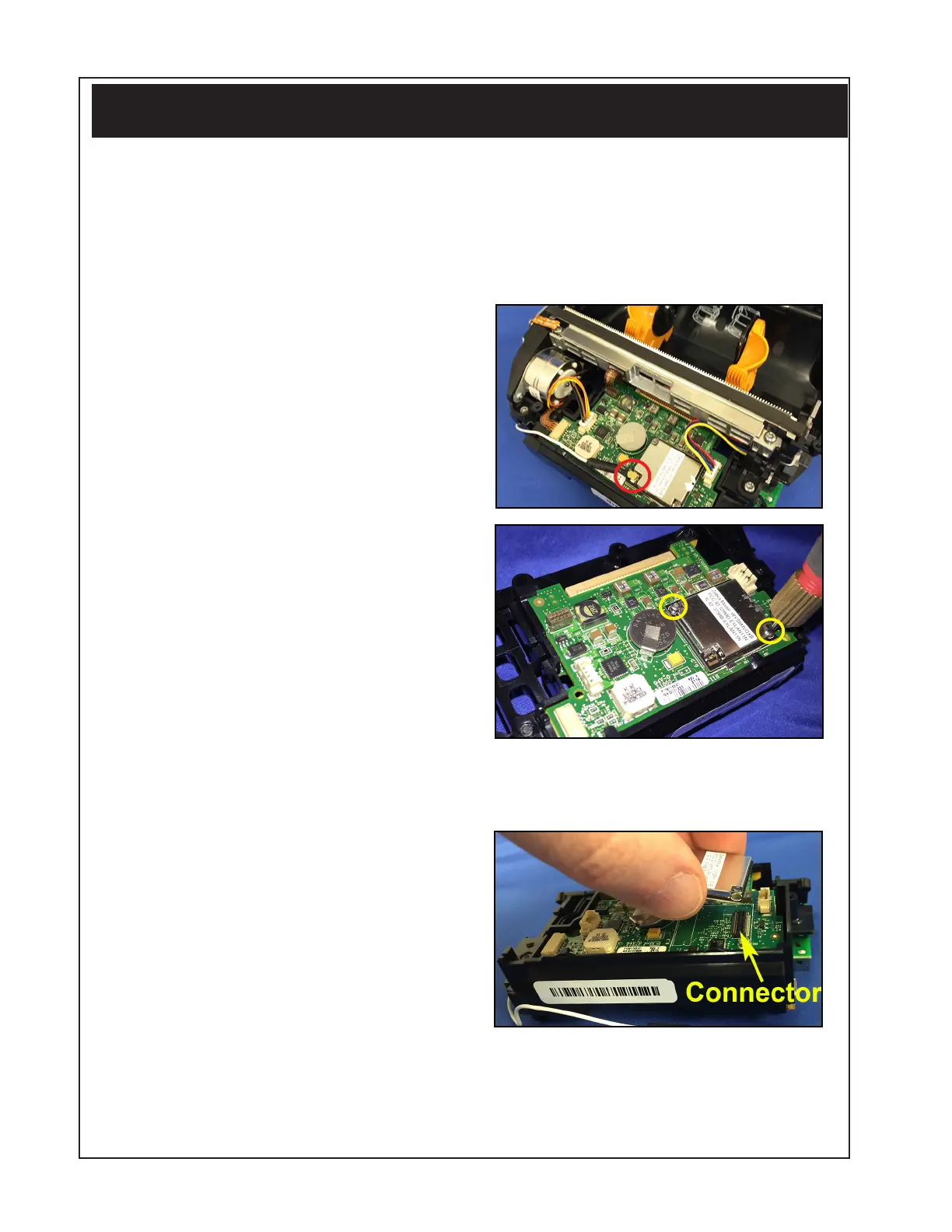

802.11N/BT3.0 & BT4.0 Radios
Installation Instructions
This kit includes the parts and documentation necessary to install the
P1063406-011 802.11G/N/BT3.0 & P1063406-013 BT4.0 Radio Kit. Read these
instructions thoroughly before attempting to install this kit.
Tools Required: T-4 TORX Driver (2.5 +/- 1 in. lb.)
Removing the 802.11g/n/BT4.0
Radio
1. Disassemble the printer as
previously described.
2. Disconnect the Antenna Coax
Cable from the Radio (where
shown).
3. Use a T-4 TORX driver to remove
the two (2) screws.
4. Disconnect the Radio from the
Top PCBA.
Installing the 802.11g/n/BT4.0
Radio
1. Connect the Radio to the
connector on the Top PCBA (as
shown) and snap into place.
2. Secure the Radio on the board
using the two (2) screws and a T-4
driver (2.5 +/- 1 in. lb.).
3. Connect the Antenna Coax Cable
to the Radio.

Zebra ZQ520 Specifications

General

Print Method	Direct Thermal
Resolution	203 dpi
Operating Humidity	10% to 90% non-condensing
Storage Humidity	10% to 90% non-condensing
Max Print Width	4.09 in (104 mm)
Connectivity	Bluetooth
Battery	PowerPrecision+
Durability	IP54-rated
Drop Specification	Multiple 6.6 ft./2 m drops to concrete
Media Sensors	Reflective and transmissive
Core Inner Diameter	0.75 in (19 mm)
Thickness	2.3 mil to 5.5 mil
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Weight	1.73 lbs (0.79 kg) with battery
Supported Media Types	labels
Max Print Speed	5 in./127 mm per second
