Zebra ZQ520 Maintenance Manual

P1075391-001 • Introduction • -1-7 •
2

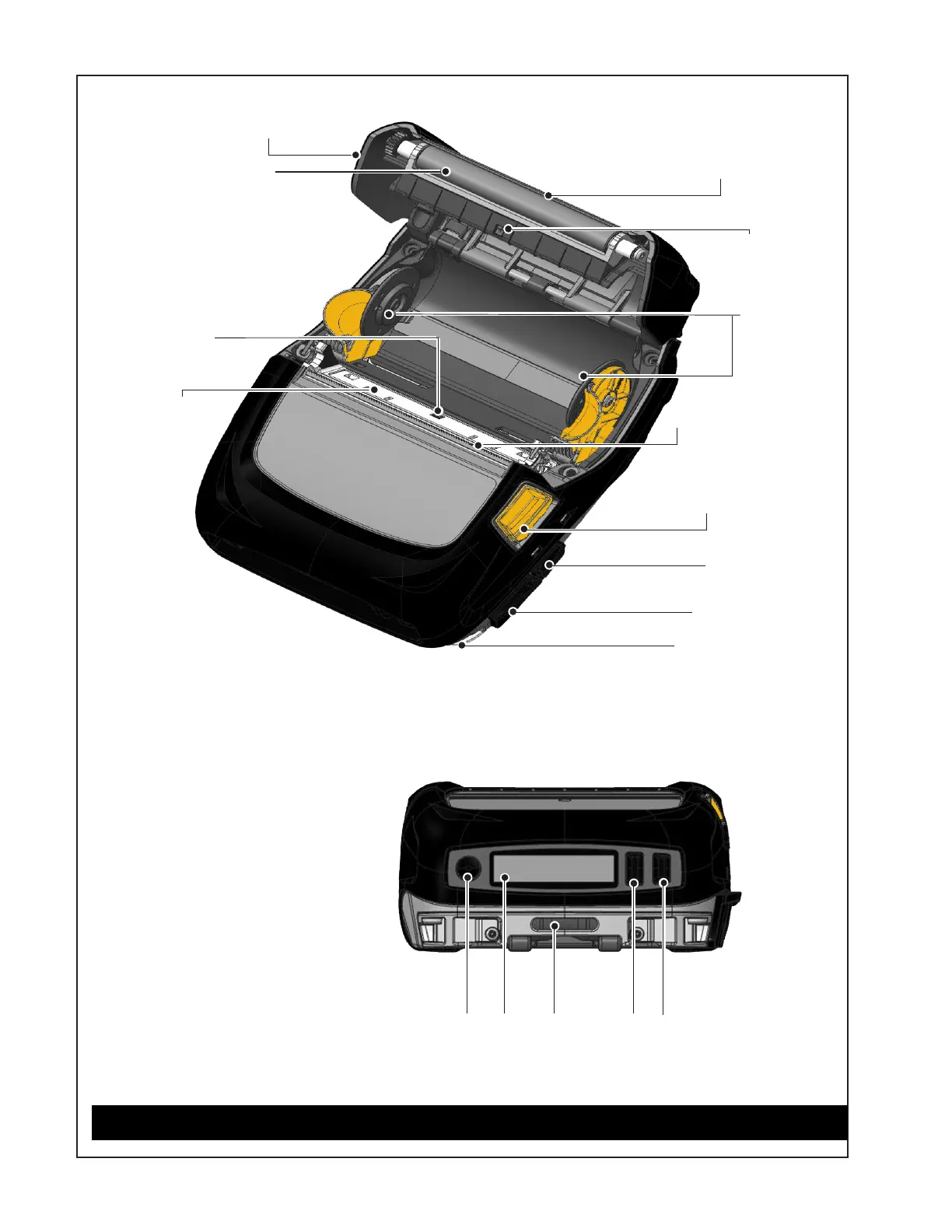

Figure 1 - ZQ520 Overview
7
9
6
1
4
3
8
5
10
11
(Not present in
Linerless.
Scraper present instead)
4
1. Platen Roller
2. Black Bar Sensor
3. Media Support Disks
4. Tear Bar
5. Media Cover Button
6. Media Cover
7. Printhead
8. Gap Sensor
9. Strap Post
10. USB Port
11. DC Input
12. Power Button
13. Control Panel
14. Belt Clip Opening
15. Select Button
16. Paper Feed Button
12
13 14
15 16

Zebra ZQ520 Specifications

General

Print Method	Direct Thermal
Resolution	203 dpi
Operating Humidity	10% to 90% non-condensing
Storage Humidity	10% to 90% non-condensing
Max Print Width	4.09 in (104 mm)
Connectivity	Bluetooth
Battery	PowerPrecision+
Durability	IP54-rated
Drop Specification	Multiple 6.6 ft./2 m drops to concrete
Media Sensors	Reflective and transmissive
Core Inner Diameter	0.75 in (19 mm)
Thickness	2.3 mil to 5.5 mil
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Weight	1.73 lbs (0.79 kg) with battery
Supported Media Types	labels
Max Print Speed	5 in./127 mm per second
