Battery Disconnect
The function of the battery disconnection switch is to disconnect the supply voltage from the electrical system
by interrupting the connection to the battery. The main benefits of this solution are:
1. Short circuit protection of the electrical system;
2. Reduction of the battery spontaneous discharge, especially when the machine is shutdown for a long
time;
3. Maintenance and repair work in safe conditions.
Turn the knob to ''OFF'' to disconnect the battery and back to ''ON'' to resume normal operation. The battery
disconnect knob 1 is located on a bracket to the right of the battery. Putting the battery disconnect in safety
condition The battery disconnect knob may be removed for safety purposes in the manner described below.
Removal of the knob
1. Turn the knob to the ''off'' position; the knob cannot be removed in this position.
2. Press the knob in and continue to turn it counter-clockwise as far as it will go.
3. Remove the knob.
Refitting the knob
1. Refit the knob
2. Press and turn the knob clockwise, positioning it at 45°

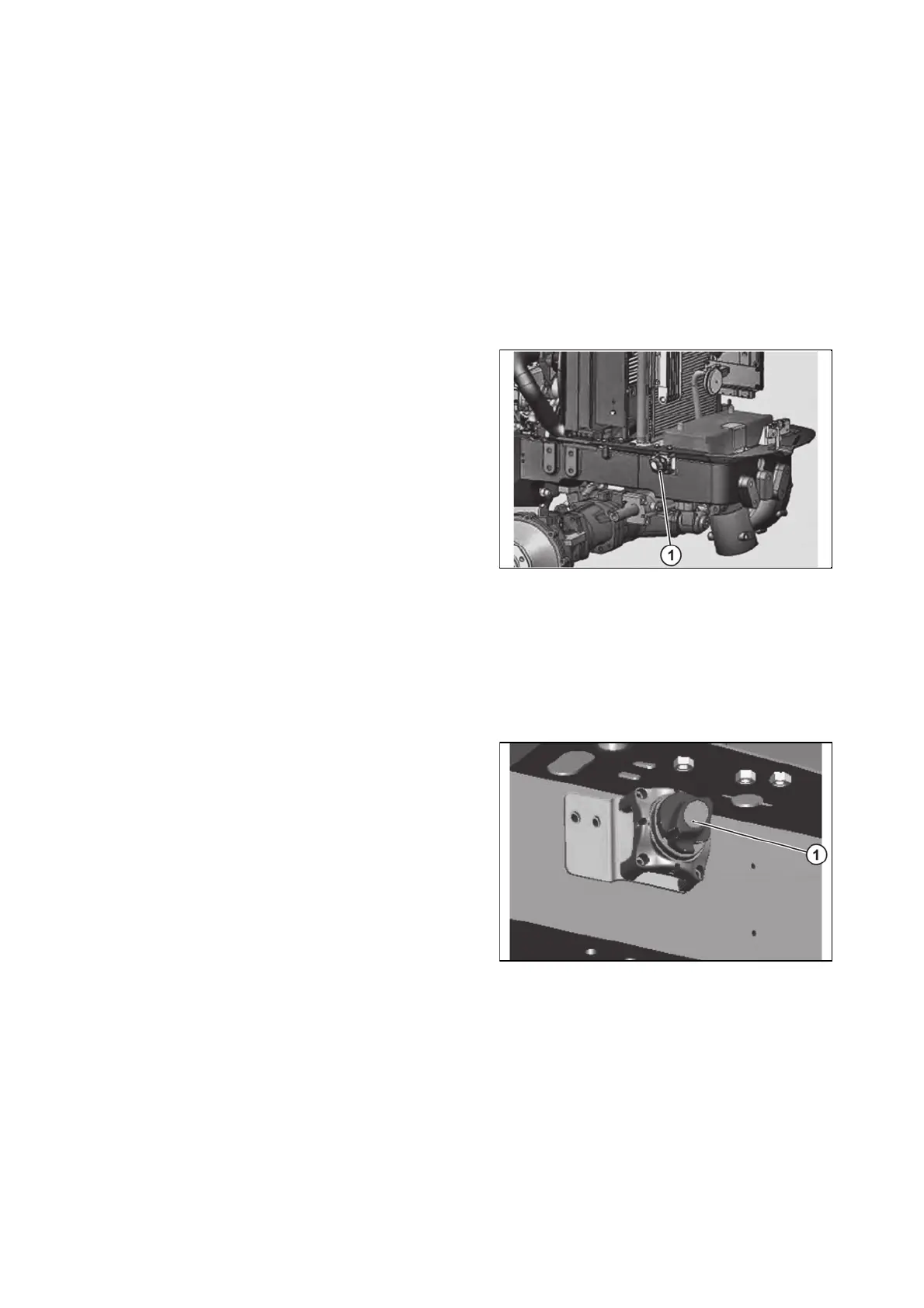

1 - Kno
HODP137
1 - Knob
HODP138
