Zetor HORTUS HS Series User Manual

Main Switc
h
Headlights Switch (Beacon Light), Turn Signal Lights Switch and Horn Switch
The beacon (if installed) is switched on simultaneously when the low beam lights or high beam
lights are switched on.
Headlight Switch (if Beacon Light is installed, also Beacon Light Switch)
High beam and low beam lights are controlled by the lever (2) on the main switch
Position 3 - High beam lights (Beacon)
Position 4 - Low beam lights (Beacon)
Turn Signal Light Switch Lever
Press the turn signal lever (1) down to signal a left turn.
Press the turn signal lever (1) up to signal a right turn.
Horn
Press the red button (5).

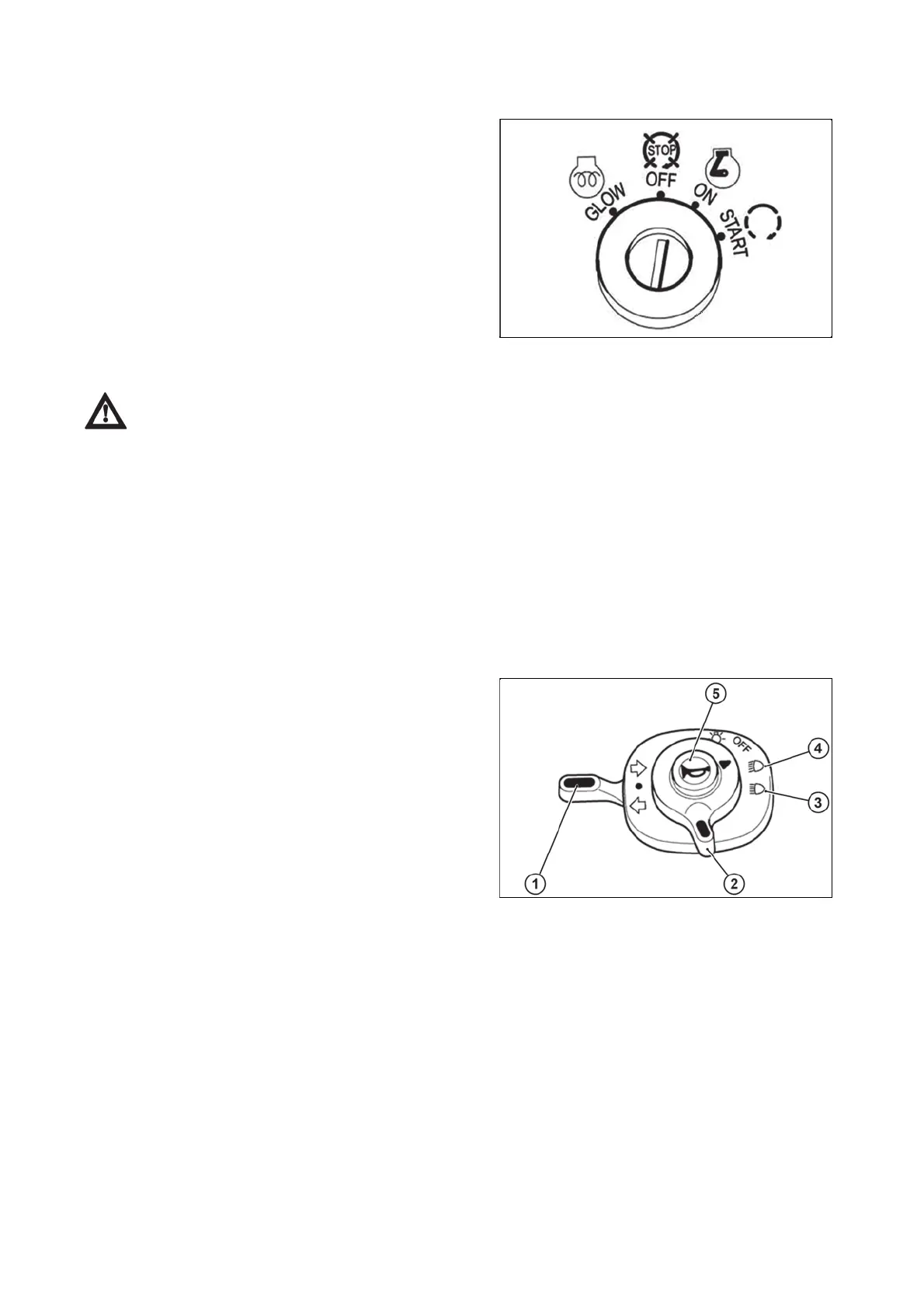

 OFF - The key can be inserted or removed.
 ON - The electric circuit is on.
 START - The starter motor is engaged. When the
key is released it will return to the ON position.
 GLOW - Glow plugs preheat the combustion
chambre.
HODP042
1- Turn Signal Light Switch Lever
2 - Headlight Switch
3 - High Beam Lights (Beacon Light)
4 - Low Beam Lights (Beacon Light)
5 - Horn
U18N012
DESCRIPTION OF TRACTOR CONTROLS
45
