Zetor HORTUS HS Series User Manual

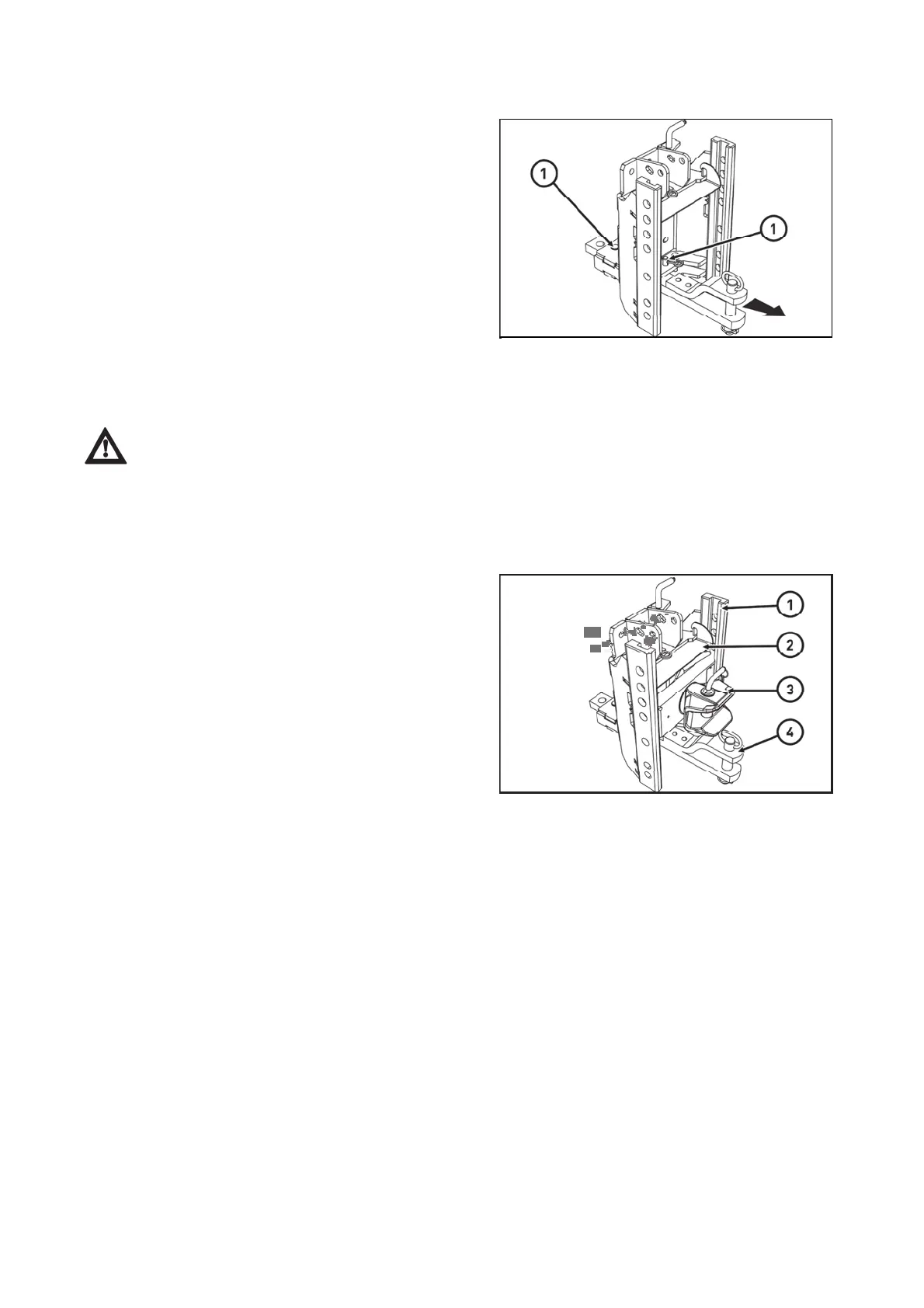

Lower Hitch Disassembly
Multi-level hitch
Used to attach two-axle or lighter one-axle trailers. The guide tail piece is height adjustable. When working
with various agricultural machines, it is necessary to adjust the height of the hitch or dismount it if necessary
.
ATTENTION: To connect the attached equipment, the automatic tail piece (if equipped) is
unlocked by the control lever of the hitch tail piece by lifting it to the upper position where it will
automatically lock in the open position. When the drawbar is situated in the correct position in
relation to the hitch, the machine is automatically locked, the machines are connected. Never place
your hands or foreign objects in the tail piece with the control lever locked in the upper position.
There is a risk of serious injury.
A
fter releasing the locking devices, remove the two pins
(1).
Remove the lower hitch by pulling it backwards in the
direction of the arrow.
Follow the reverse procedure to reassemble the lower
hitch.
UCL18NN009
1. Multi-Level Hitch Console
2. Rear PTO Cover
3. Multi-level Hitch Attachment Tail Piece
4. Lower Swinging Hitch
UCL18NN006
DESCRIPTION OF TRACTOR CONTROLS
66
