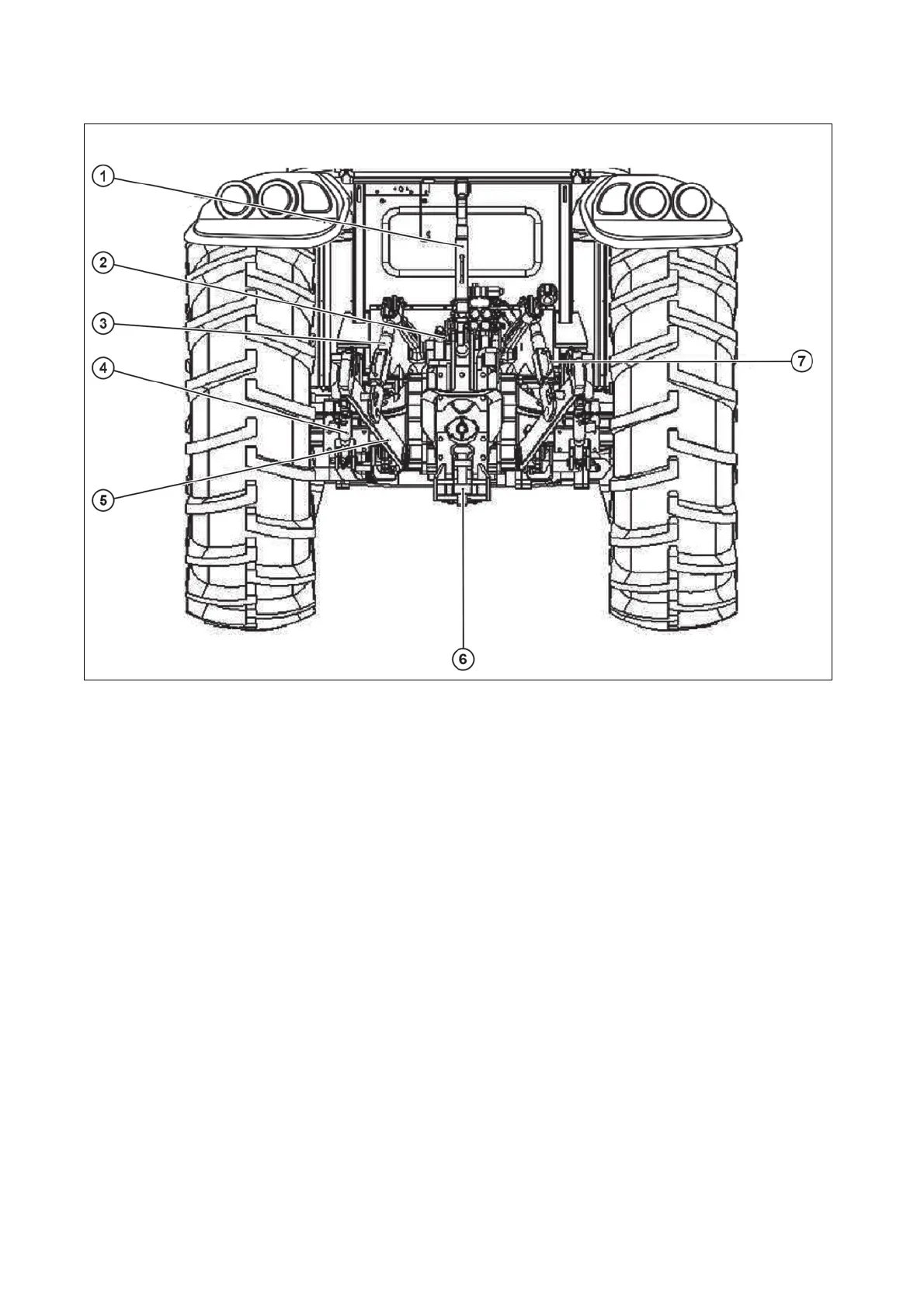

Operating The 3 Point Linkage (TPI)
HODP077
1. Upper Link
2. Link Bracket
3. Lift Link
4. Stabilizer Bar
5. Lower Link Arm
6. Lower hitch
7. Length Adjustment of the Lift Link
DESCRIPTION OF TRACTOR CONTROLS
63
