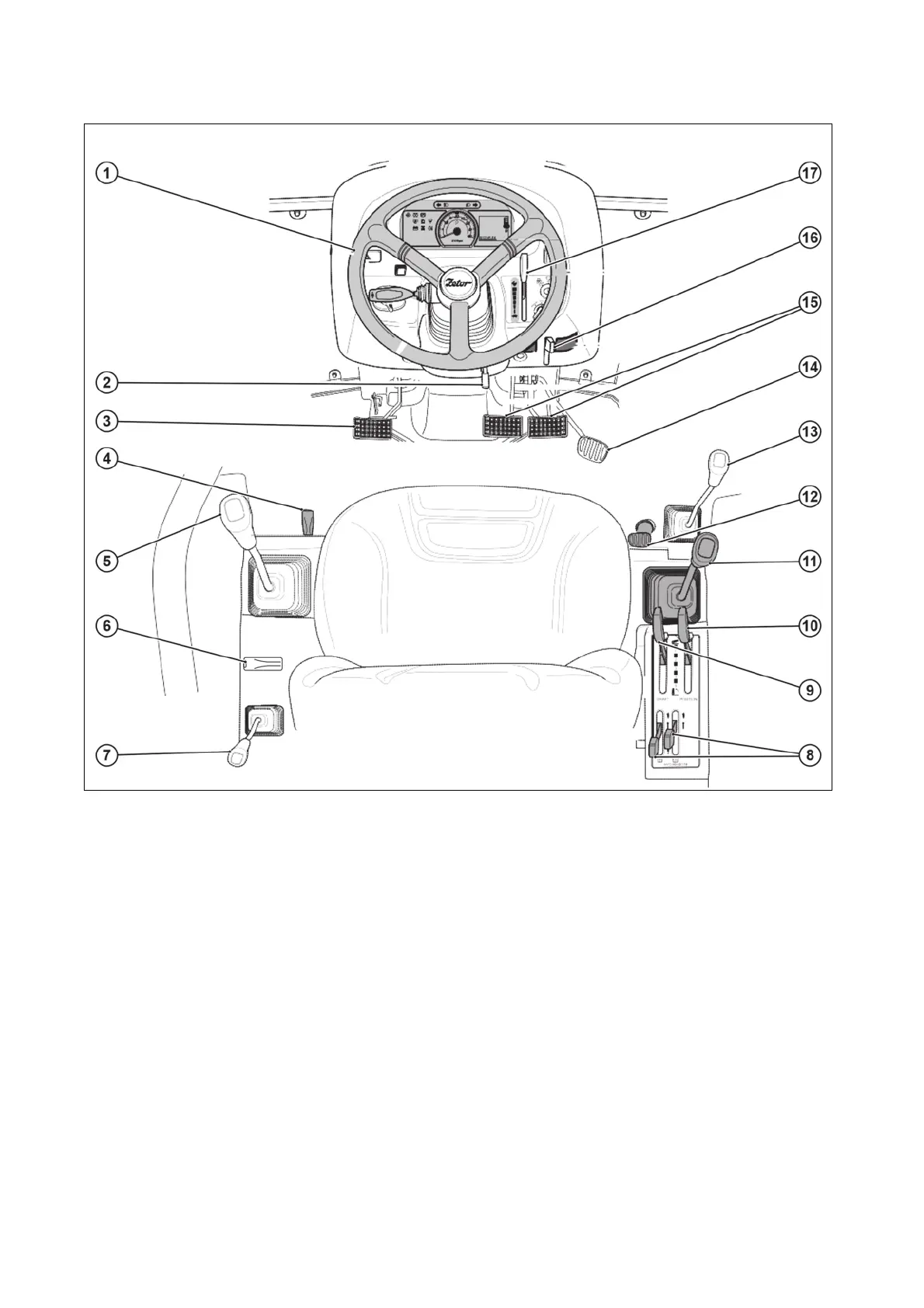

Operation The Controls (HS Model)
HODP054
1. Steering Wheel
2. Steering Wheel Adjustment Lever
3. Clutch Pedal
4. Parking Brake Lever
5. Reduced and Road Gears Shift Lever
6. Creep Shift Lever
7. PTO Shift Lever
8. SCVs Control Levers
9. Draft Control Lever
10. Position Regulation Lever
11. Gear Shift Lever
12. Differential Lock Pedal
13. Joystick Lever
14. Throttle Pedal
15. Brake Pedal
16. Parking Brake Lever
17. Throttle Lever
DESCRIPTION OF TRACTOR CONTROLS
