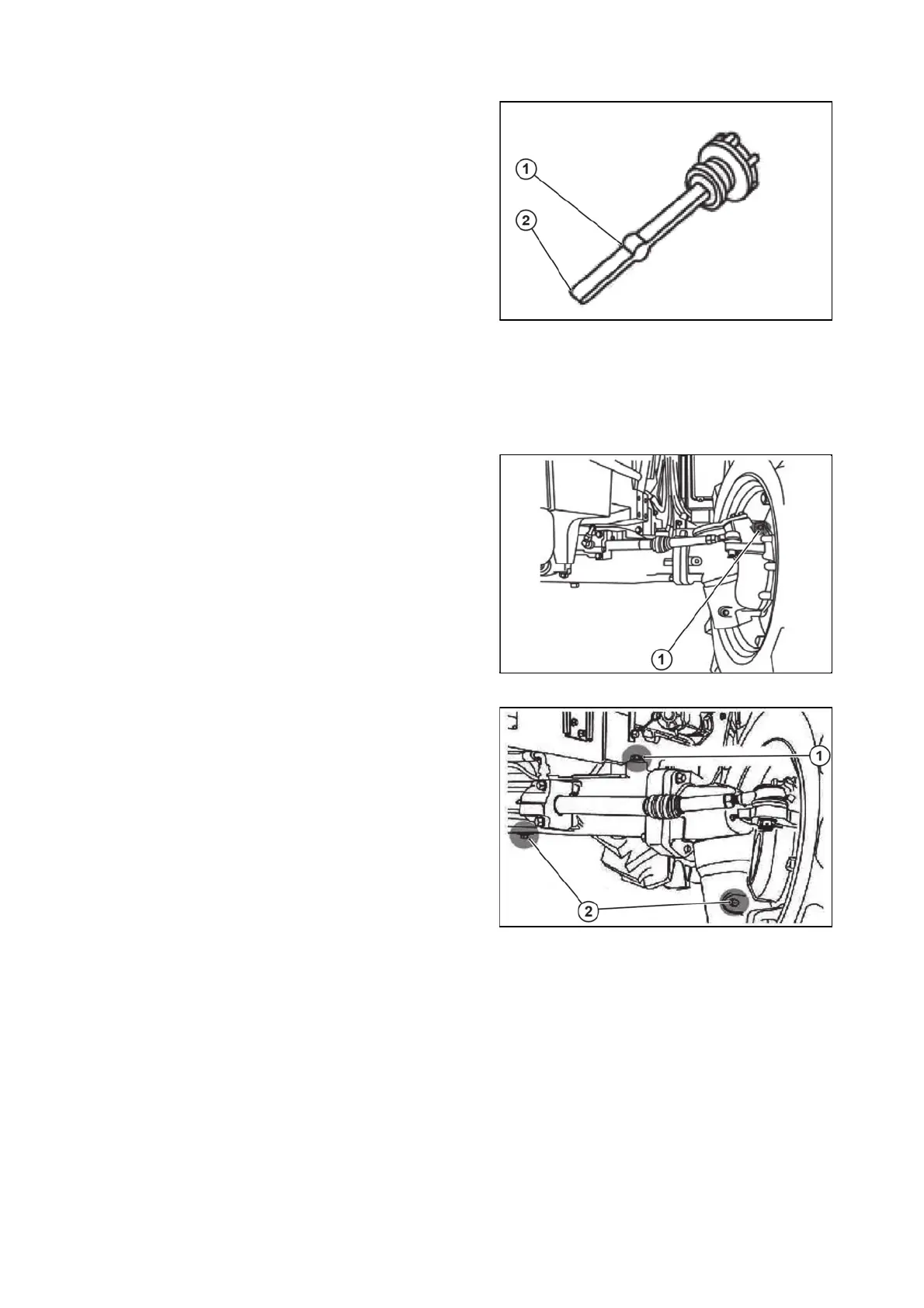

Changing Oil in the Front Axle
Refill the transmission to the correct level on the dipstick with new oil.
Capacity: 4.3 US gal (16.4L)
IMPORTANT:
After refilling the prescribed amount of new oil, the level measured by the dipstick may be
higher than permitted - due to incomplete filling of the front-wheel axle drive mechanism - this
discrepancy will disappear after being put back into operation.
Unscrew the vent plugs to accelerate the proper pumping of the oil by the front axle drive
system.
1. Maximum Level
2. Minimum Level
HODP115
1 - Top Plug (Vent Plug)
HODP116
1. Oil Dipstick
2. Drain Plug
HODP117
