Adjustment of the Stabilizer Bars
Adjustment of The Top Link
Lengthening or shortening the top link will change the angle of the implement.
The locating hole of the top link varies with the type of implement used.
The most common locations are the 1st and 2nd hole from the top.
For general implement: Use the Pin to ''A'': point
For Draft control: Use the Pin to ''B'' point
Adjustment of the Lift Link (left, right)

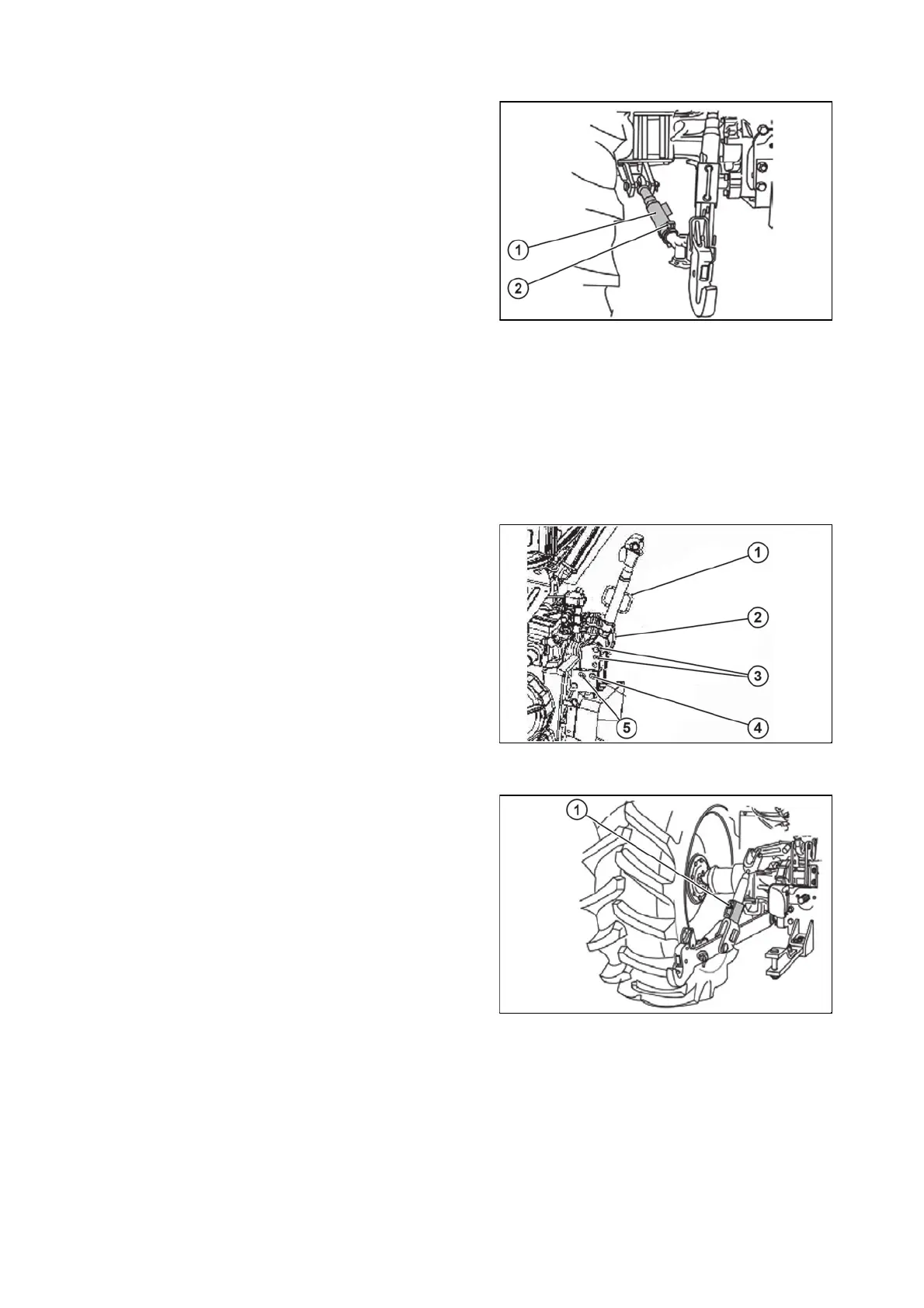

The stabilizer bars are designed to limit or prevent lateral
movement of the implement.
The length of the stabilizer bars is adjusted by removing
the pin and rotating the turnbuckle nut by which the
threaded ends are interconnected.
1. Turnbuckle
2. Pin
HODP078
1
Upper Link Length Adjustable Handle
2. Lock Nut
3. Upper Link Position
4. Position A
5. Position B
HODP079
Adjust the length of the lift link by screwing the adjustable
handle to either side. Adjust the length of the lift link as
required so that the connected implement is in its working
position parallel to the ground.
1 - Lift Link Length Adjustment Handle
HODP080
DESCRIPTION OF TRACTOR CONTROLS
