Fuel
Use clean diesel fuel only.
IMPORTANT: The diesel fuel system is susceptible to dirt and water, so minimize the risk of
system contamination.
Bleeding the Fuel System

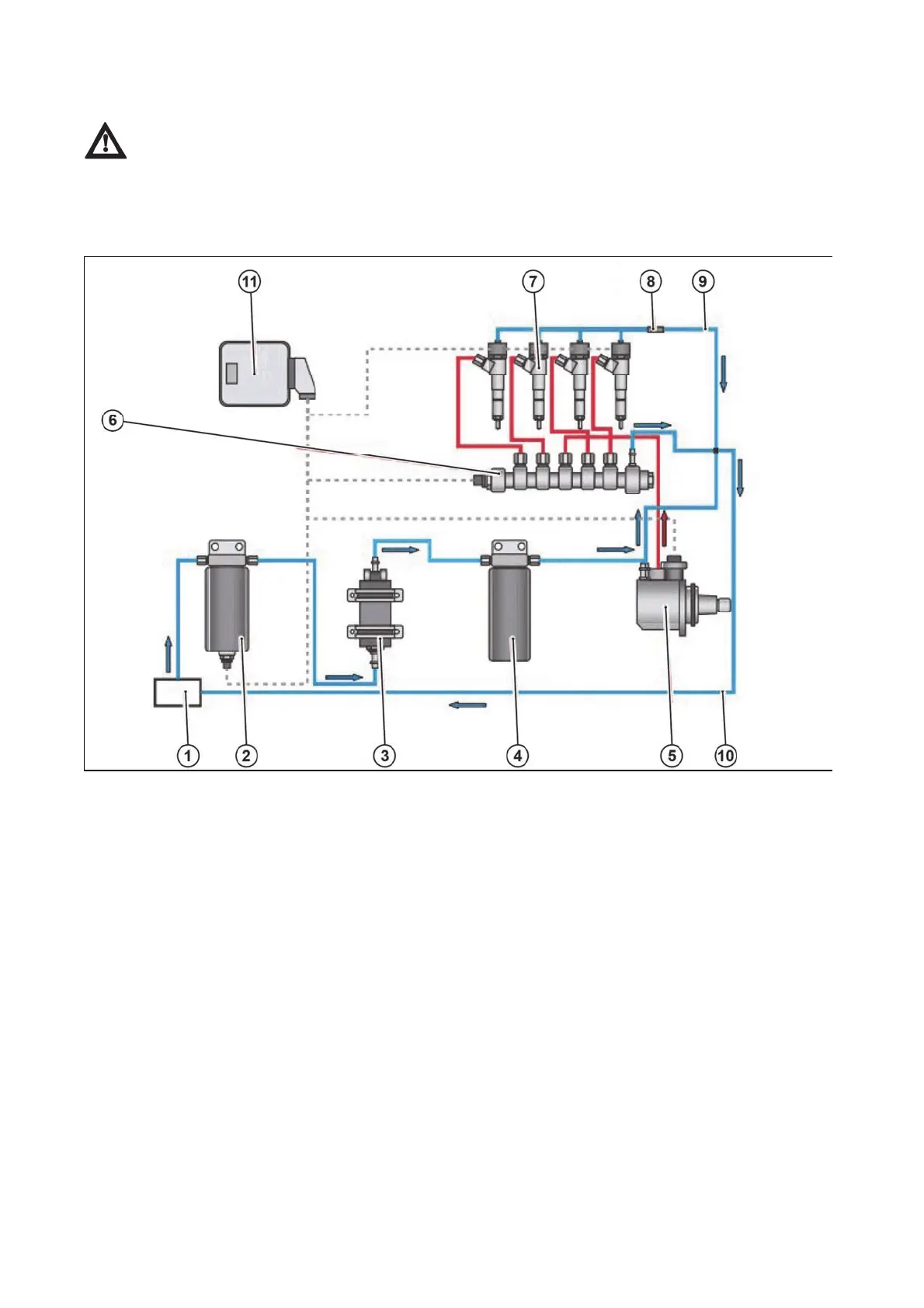

HODP108
1 - Fuel Tank
2 - Coarse Fuel Filter
3 - Supply Fuel Pump (Electrically Powered)
4 - Fine Fuel Filter
5 - High Pressure Pump with FCU Control Unit (Fuel Control Unit)
6 - High Pressure Rail (Rail)
7 - Injector
8 - Check Valve
9 - Return Line
10 - Fuel Return to Fuel Tank
11 - Engine Control Unit
To Next Page
