Other Maintenance
Checking the Belt Drive
CAUTION:
Perform any maintenance only when the engine is at a standstill.
After repair work: Check that all covers have been correctly installed and all tools have been
removed from the engine.
Check the entire drive belt for damage.
Replace the defective part.
Reinstall the protective elements.
Pay attention to the correct installation of the new belt, after 15 minutes of operation, check its correct
tension.
If the machine is additionally equipped with a compressor for the trailer air brakes, it is necessary to regularly
check its belt drive.

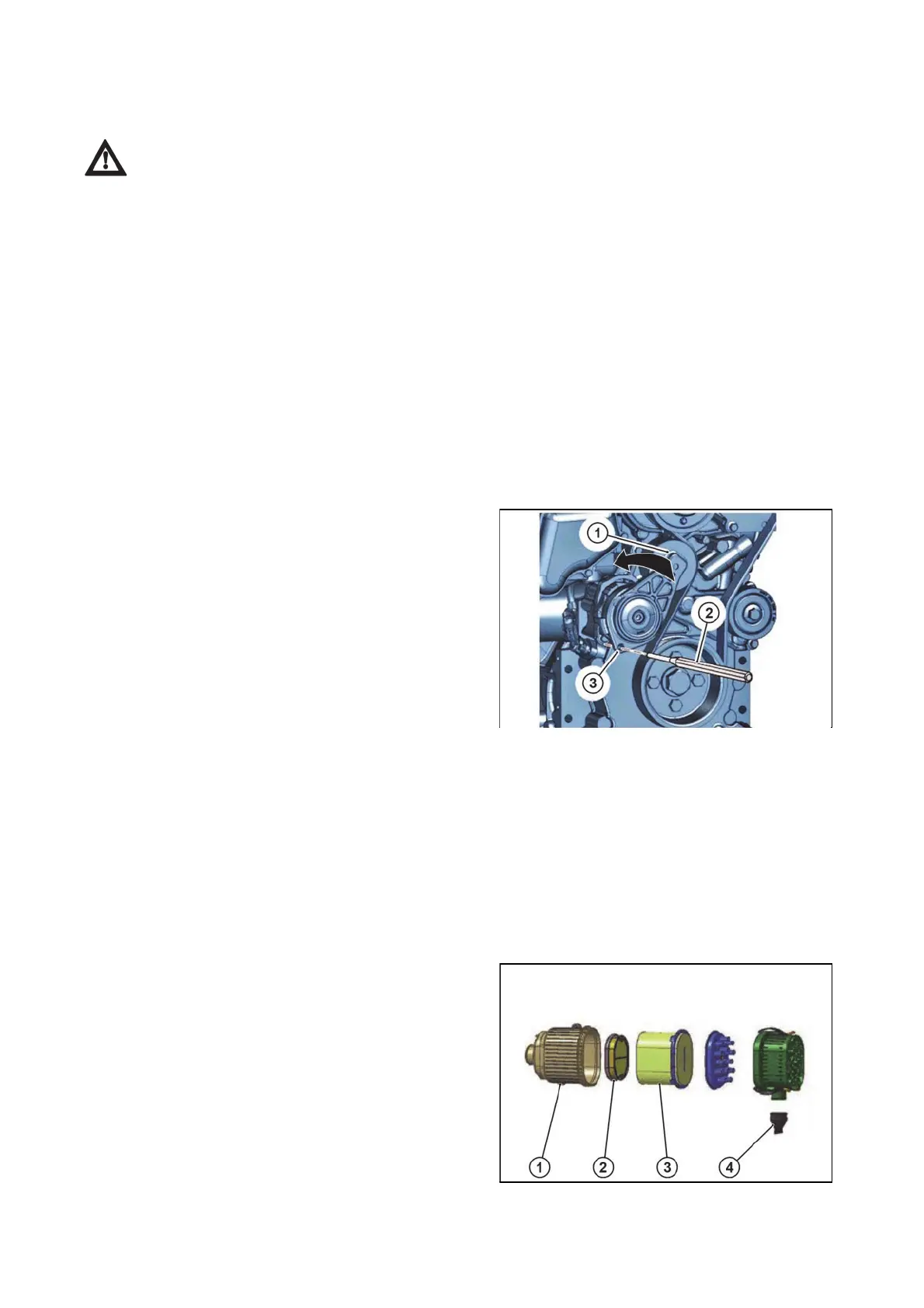

Replace V-rib Belt
Press tensioning roller with socket wrench in the direction of the arrow until a retaining pin can be
fixed in the assembly bore. The V-ribbed belt is now tension free.
First pull the V-ribbed belt off the smallest roller or off the tensioning roller.
Mount new V-ribbed belt.
Retain tensioning pulley using the pin wrench and remove the holdfing pin.
Tension V-ribbed belt using the tensioning roller and socket wrench. Check whether the V-ribbed belt
is correctly in its guide.
Check and Clean the Air Cleaner According to the Following Instructions
1 - Tension pulley
2 - Retaining pin
3 - Assembly bore
HODP139
1 - Filter Body
2 - Fine Filter
3 - Air Filter Element
4 - Ventilation
HODP140
