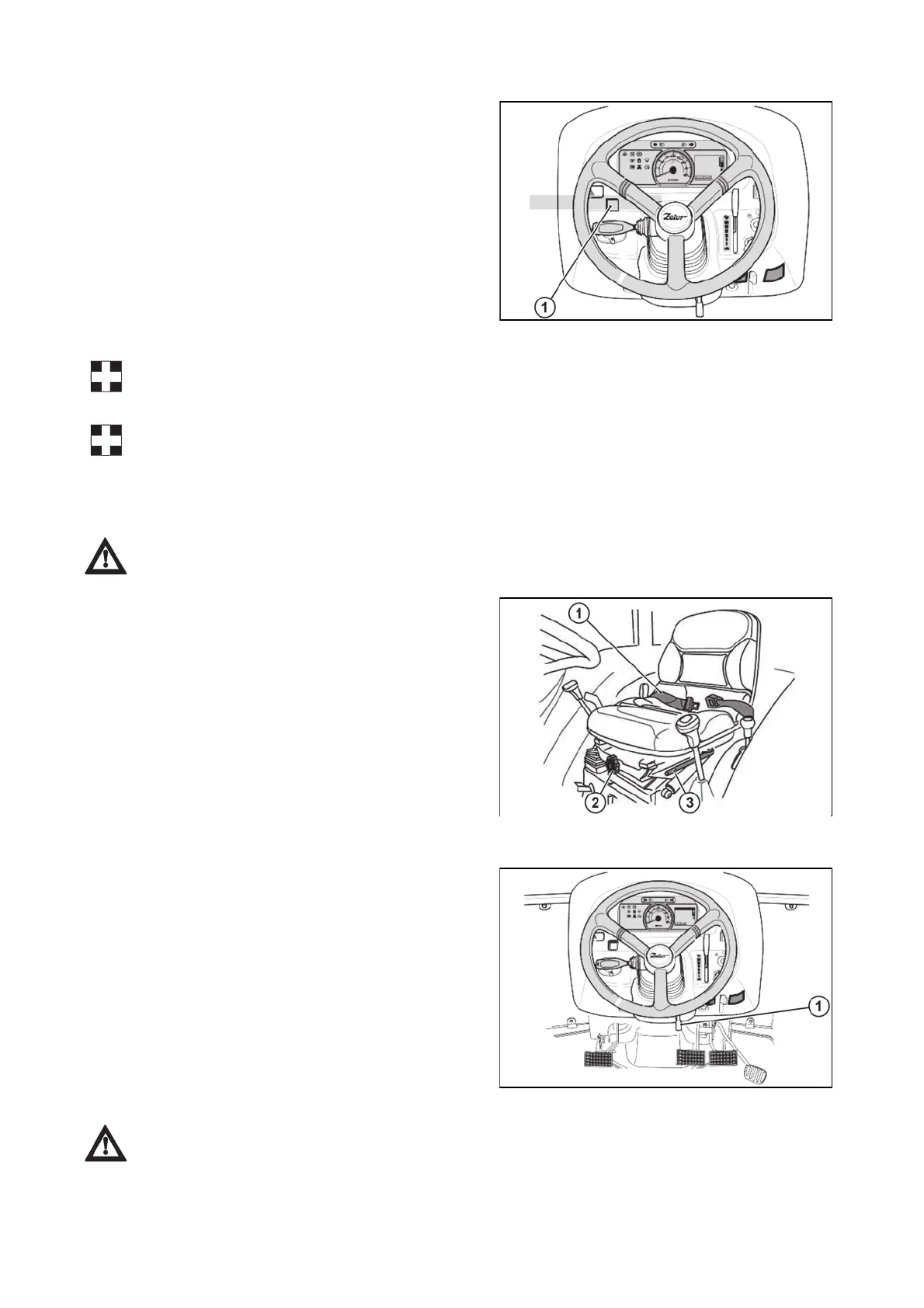

Zetor HORTUS HS Series - Front Wheel Drive Lever (HS Model); Drivers Seat; Tilt Lever

Front Wheel Drive Lever (HS Model)
IMPORTANT: Do not use the front axle drive at high speed or on a road, as the components
shall prematurely wear out.
IMPORTANT: Always use the clutch when engaging and disengaging the front axle drive.
The use of front-wheel drive improves driveability on difficult terrain and tractor traction.
Driver's Seat
Caution: Check whether the seat properly locked in its position before driving the tractor.
Tilt Lever
Dan
g
er: Ensure that the tilt
p
edal has locked before movin
g
the tractor
.
1. Front Wheel Drive Switc
h
 ON - The front axle drive function is activated by
pressing the top of the switch
 OFF - The front axle drive function is deactivated
by pressing the bottom of the switch
HODP068
1. Seat Belt
2. Seat Adjustment Knob
3. Seat Adjustment Lever
To adjust the seat forwards / backwards, raise the lever
and adjust it to the desired position.
HODP069
1 - Tilt Lever
To adjust the inclination of the steering wheel with a 3
stages and set it to the desired position.
HODP070
DESCRIPTION OF TRACTOR CONTROLS
59
