Diff-Lock Pedal
DANGER: It is difficult to turn the tractor when the differential lock is on. To prevent damage to
the mechanism, turn the differential lock off before turning the steering wheel.
IMPORTANT: Do not use high engine rpm when engaging the differential lock. If the differential
lock does not release after removing the foot from the lock pedal, alternately brake with the left and
right directional brake until it is released.
Caution: Never use the diff-lock at high speed or on the road as this can cause roll over and
injury.
Front Wheel Drive Lever (CL Model)

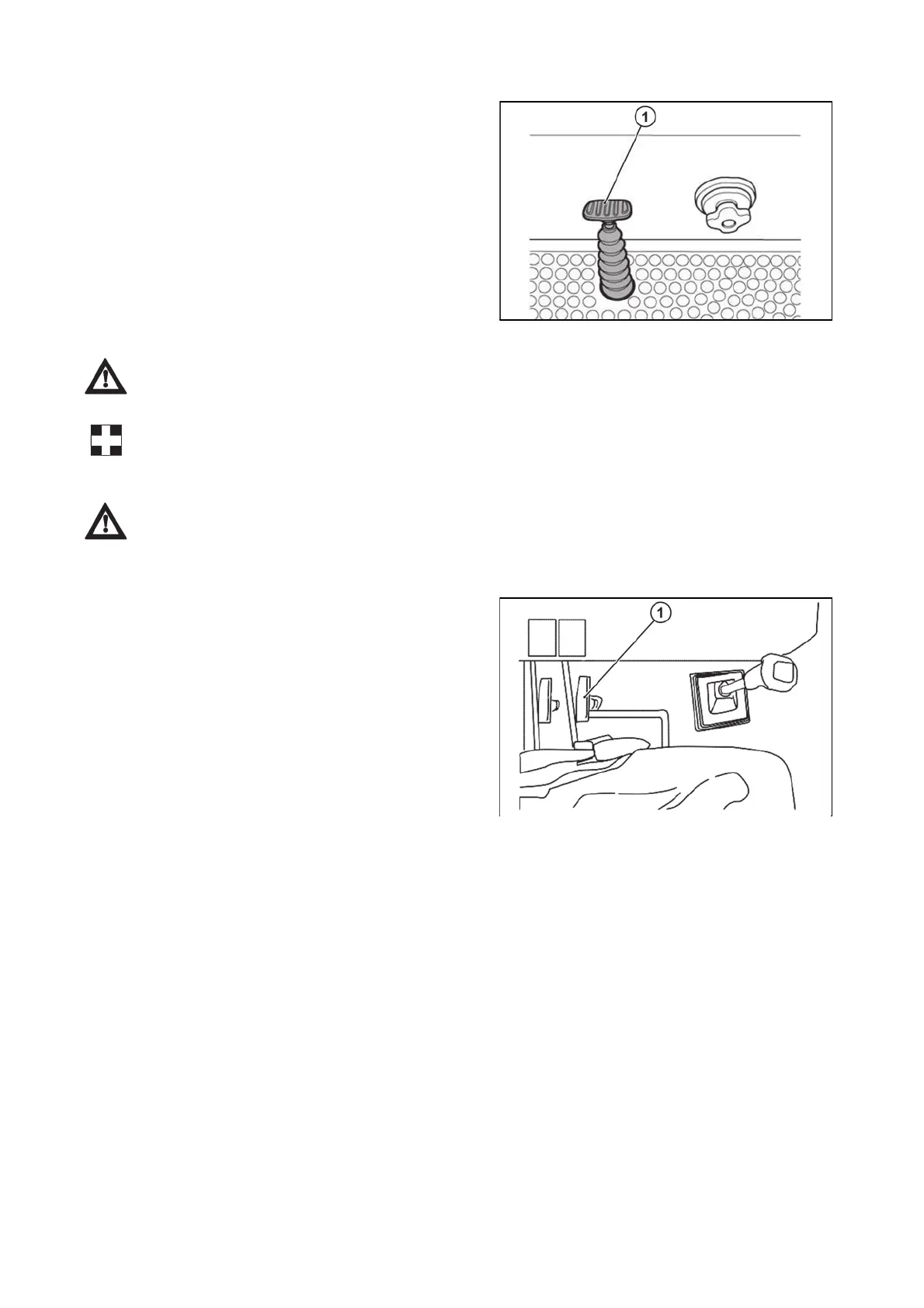

1 - Diff-lock Pedal
In case of wheel slippage use the diff-lock by pushing
down on the diff-lock pedal.
To release it remove the foot from the pedal.
HODP066
1. Front Axle Drive Shift Lever
In the 'ON' position, the front axle drive is engaged and in
the 'OFF' position disengaged.
Engage and disengage the front axle drive when the front
wheels are in the straight position and at low engine rp
m
HODP067
