Setting the play of controls
Adjusting the Clutch
Adjusting the Brakes
Adjustment Method
Caution:
Uneven adjustment of the left and right pedal will result in one sided braking when the pedals
are connected and can cause serious accidents, especially at high speeds.
Double check to ensure free play is the same on both pedals.
Using the clutch over a period of time will increase the free
play.

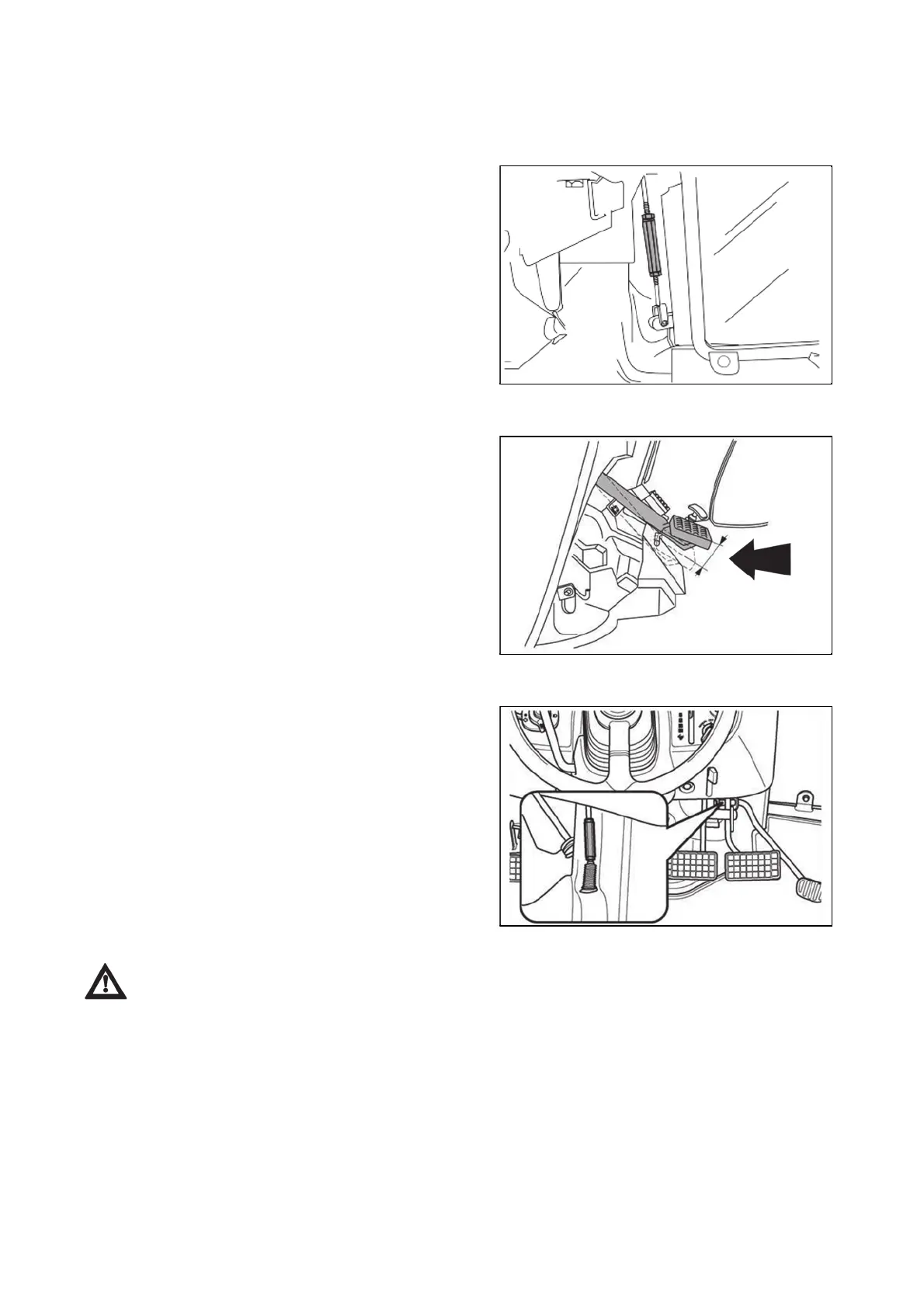

The correct free play of the pedal is 0.78~1.18 in. (20~30
mm).
To adjust, loosen the locknut on the turnbuckle and adjust.
Check the adjustment and tighten the locknut if the free
play is correct.
HODP131
As is the case with the clutch, use of the brakes will
change the pedal free play and the balance between the
right and left pedal.
The correct pedal free play is 1.18~ 1.57 in. (30~40 mm).
HODP132
Loosen the double locknuts to adjust the brake.
Turning it to increases the free play, or decreases it.
Tighten the double locknuts and confirm to fix the Nuts.
Check that the free play is correct and the same on both
pedals to ensure even braking.
HODP133
