11-12 Nightingale PPM3 User's Guide April 2019

Working With Menus

11.1.7. Invasive Blood Pressure

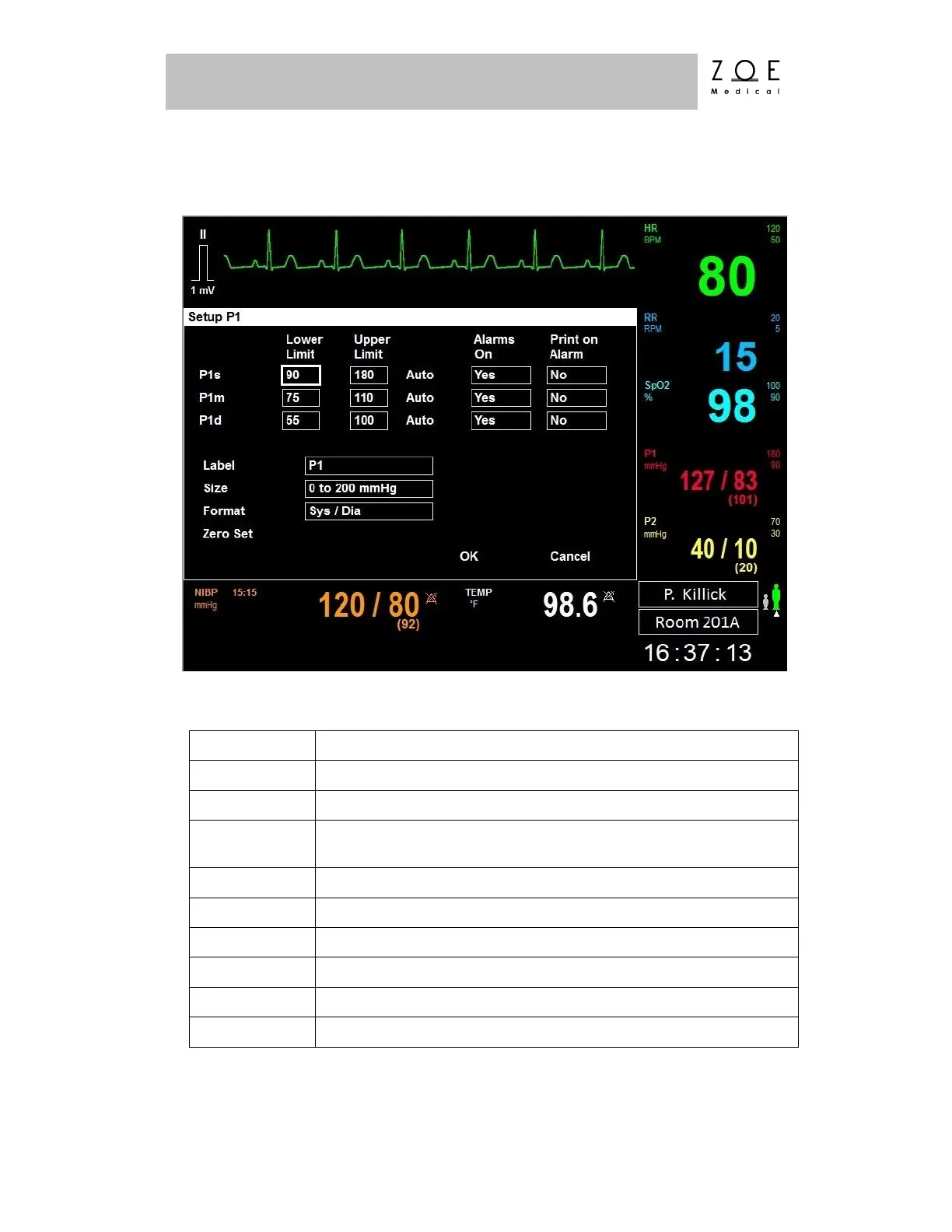

Figure 38. Setup IBP Menu

Setting

Description

Lower Limit

P1 systolic/mean/diastolic alarm lower limits

Upper Limit

P1 systolic/mean/diastolic alarm upper limits

Auto

Auto-adjust lower limits to 80% of current values and upper limits to

125% of current values.

Alarms On

Enables (Yes) or disables (No) alarms

Print on Alarm

Print a strip chart summary upon alarm conditions

Label

Changes label from default to ART, PAP, or CVP.

Size

Changes display amplitude of P1 waveform

Format

Displays either Sys/Dia or Mean numeric value in larger font

Zero Set

Zeroes P1 when transducer vent has been opened
