ZOE PPM3 - Figure 4. PPM3 Left View

To Next Page

To Previous Page

April 2019 Nightingale PPM3 User's Guide 1-5

Overview

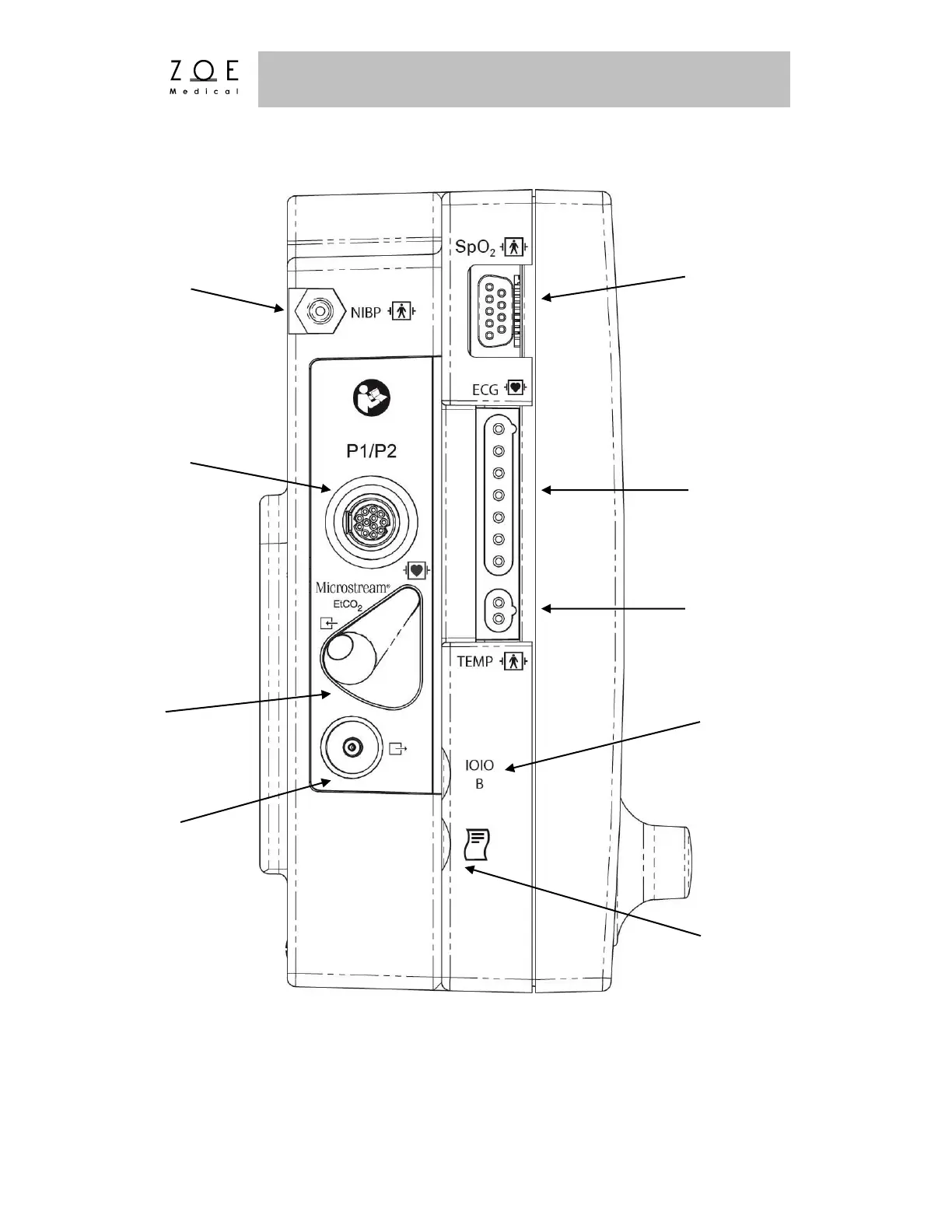

Figure 4. PPM3 Left View

Other Medical Device

(OMD) Connector

Note: Labeled “EtCO2”

in later production units

SpO2 Connector

NBP Connector

ECG Connector

TEMP Connector

IBP Connector

Input

Connector

Exhaust

Dual Channel Recorder

Connector

(with Oridion Microstream® CO

and IBP)
