8-2 Nightingale PPM3 User's Guide April 2019
Masimo CO
2
Monitoring
The CO
2
monitoring capabilities of the Nightingale PPM3 configured with
Masimo capnography include:
• Measuring the patient’s end-tidal carbon dioxide (ETCO
2
)
• Measuring the patient’s fractional inspired carbon dioxide (FICO
2
)
• Calculating the patient’s respiration rate (RRc) from CO
2
• Displaying CO
2
waveform (capnograph) continuously
• Detecting Apnea conditions with a configurable time setting
8.2. Getting Started with Masimo CO
2
on the PPM3
To begin CO
2
monitoring with Masimo ISA or IRMA capnography, use the
following procedure:
1. Connect the electrical/data cable which is part of the ISA module or
IRMA adapter into the Other Medical Device (OMD) port labeled as
“1010 B”or “EtCO2” on the left side of the PPM3.
2. If CO
2
monitoring has not been enabled (indicated by the presence of
impedance respiration box with blue labels underneath the green HR
parameter box), press the SETUP key on the PPM3, scroll the control
knob to Parameters, press the knob, press on the highlighted "ETCO
2
Enabled," scroll to "Yes," and press the knob. Press the Main Screen key
to apply the changes. Now the CO
2
waveform area and parameter box
should appear in yellow beneath the top channel ECG lead – replacing the
impedance respiration parameter box and waveform area.
3. Connect Masimo accessories:
a. ISA (sidestream):
Connect a Masimo Nomoline accessory to the
Light Emitting Gas Inlet (LEGI) connector on
the front of the ISA module (See Figure 24).
The most commonly used accessory will be the
Nomoline adapter with a female Luer Lock
connector. Once the adapter is plugged
in, the LEGI will begin flashing in green
as the ISA self-zeroes, and the message
area on the PPM3 will display "CO
2
Warming Up."

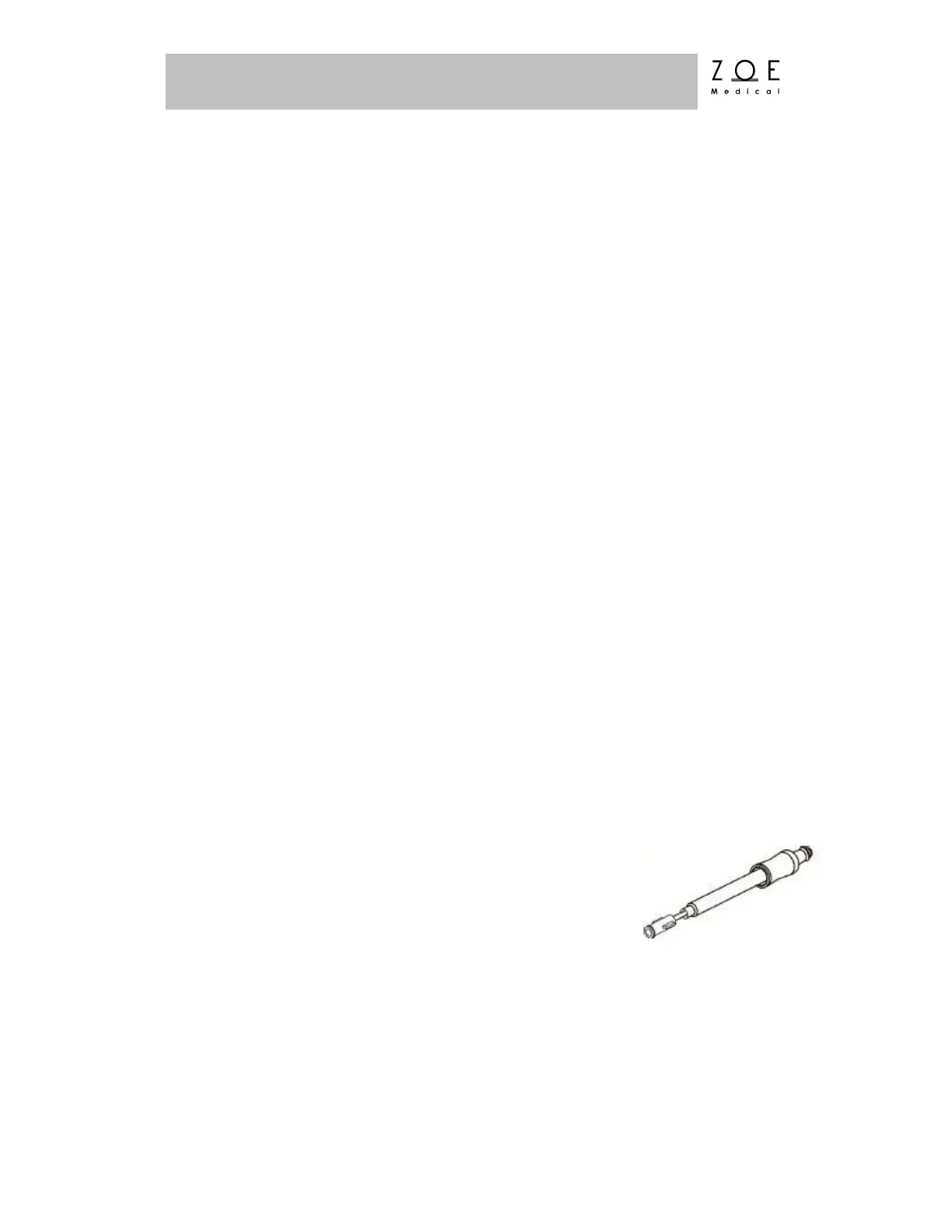

Figure 26. Nomoline Adpater ‒
Female Luer Lock
