ZXR105900ESeriesUserManual(EthernetSwitchingVolume)
gei_1/1gei_1/2
ZESRandZESR+Hybrid
ConfigurationExample

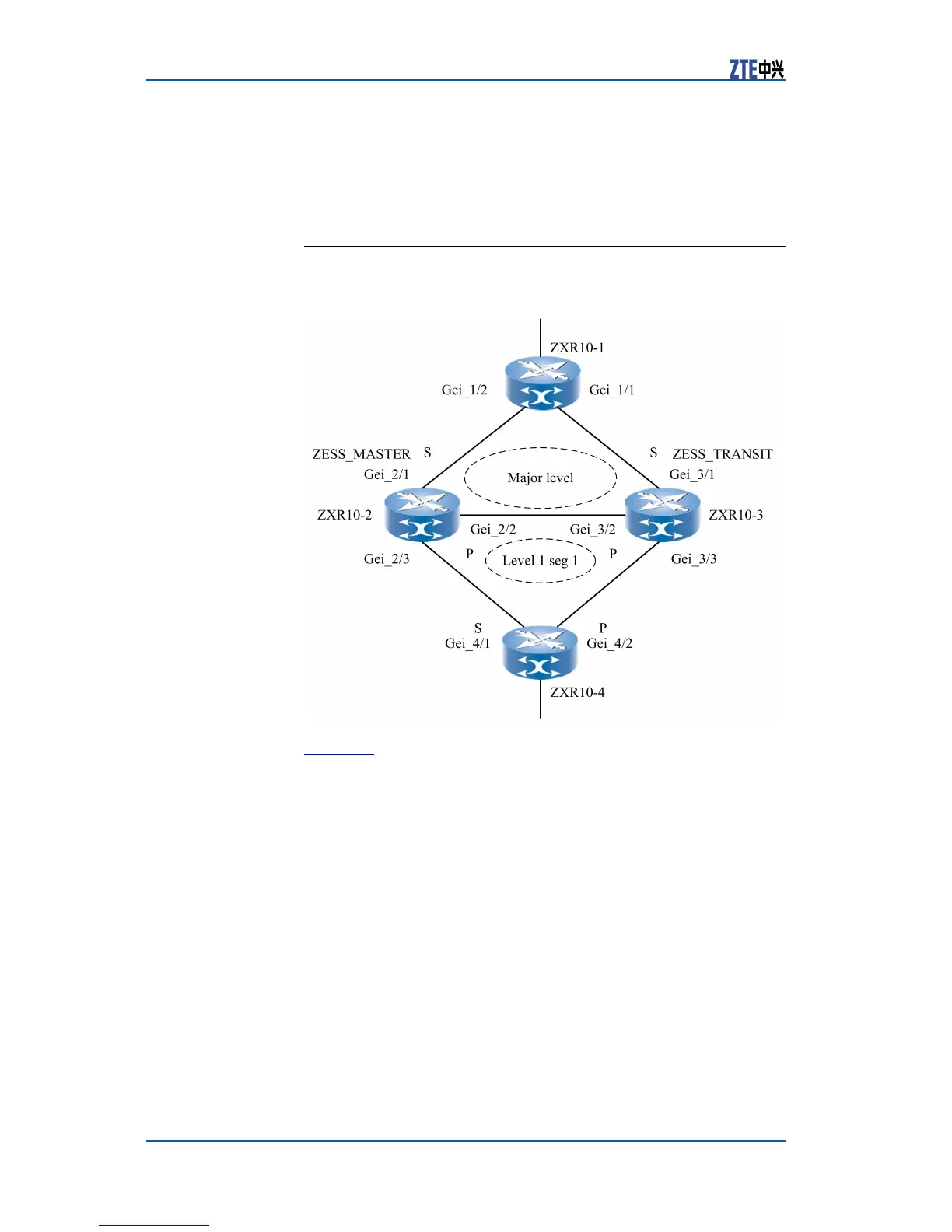

FIGURE19ZESR+ANDZESRHYBRIDNETWORKINGTOPOLOGYFIGURE
Figure19istypicalZESR+andZESRhybridnetworkingtopology
gure.NodeZXR10-2,ZXR10-3andZXR10-1formdoublenodes
doubleuplinks,thatisZESR+.Alsothreenodesformamainloop
virtually.NodeZXR10-2,ZXR10-3andZXR10-4formalevel1seg
1secondaryring,thatisZESR.
Node1conguration:
//asanormalswitch,themajorfunctionisto
transparentlytransmitdatapackage
//VLANinformationneedtobeconfigured.
(portwithtaggedbelongstoctrl-vlan)
//closeportbroadcastandunknownunicastsuppression
//connectZXR10-3
ZXR10_S1(config)#interfacegei_1/1
//configureinterfaceworkingmodeasautonegotiation
ZXR10_S1(config-gei_1/1)#negotiationauto
ZXR10_S1(config-gei_1/1)#switchportmodetrunk
ZXR10_S1(config-gei_1/1)#switchporttrunkvlan100-200
ZXR10_S1(config-gei_1/1)#switchporttrunkvlan4000
ZXR10_S1(config-gei_1/1)#exit
//connectZXR10-2
ZXR10_S1(config)#interfacegei_1/2
//configureinterfaceworkingmodeasautonegotiation
ZXR10_S1(config-gei_1/2)#negotiationauto
ZXR10_S1(config-gei_1/2)#switchportmodetrunk
ZXR10_S1(config-gei_1/2)#switchporttrunkvlan100-200
64CondentialandProprietaryInformationofZTECORPORATION

Zte ZXR10 5900E Series Specifications

General

Series	ZXR10 5900E
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Relative Humidity	5% to 95% (non-condensing)
VLAN	4K VLAN
Routing Protocols	RIP, OSPF, IS-IS, BGP
Security	802.1X, ACL
Power Supply	AC/DC
