ZXR105900ESeriesUserManual(EthernetSwitchingVolume)
Implementfastaggregationoftheentirenetworkandloadbal-
anceoftwolinksonSwitchAinthearea.

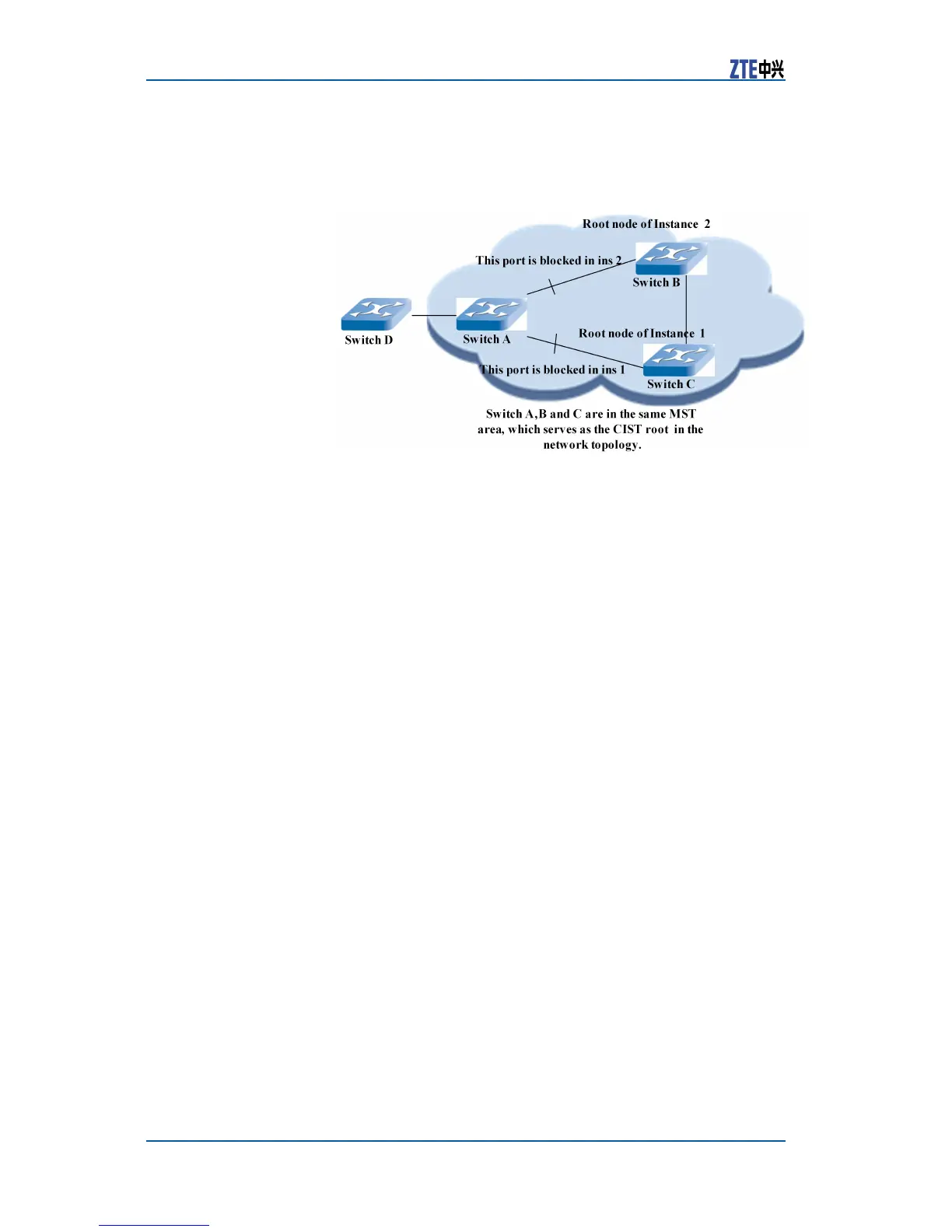

FIGURE13MSTPCONFIGURATION
SwitchAConguration
/*ConfiguretheMSTarea*/
ZXR10_A(config)#spanning-treeenable
ZXR10_A(config)#spanning-treemodemstp
ZXR10_A(config)#spanning-treemstconfiguration
ZXR10_A(config-mstp)#namezte
ZXR10_A(config-mstp)#revision2
/*MapVLANs1to10toInstance1andVLANs11to20toInstance2*/
XR10_A(config-mstp)#instance1vlan1-10
ZXR10_A(config-mstp)#instance2vlan11-20
SwitchBConguration
/*ConfiguretheMSTarea*/
ZXR10_B(config)#spanning-treemodemstp
ZXR10_B(config)#spanning-treemstconfiguration
ZXR10_B(config-mstp)#namezte
ZXR10_B(config-mstp)#revision2
/*MapVLANs1to10toInstance1andVLANs11to20toInstance2*/
ZXR10_B(config-mstp)#instance1vlan1-10
ZXR10_B(config-mstp)#instance2vlan11-20
/*ChangethepriorityofSwitchBinInstance2sothat
itbecomestheRootofInstance2*/
ZXR10_B(config-mstp)#spanning-treemstinstance2priority4096
SwitchCConguration
/*ConfiguretheMSTarea*/
ZXR10_C(config)#spanning-treemodemstp
ZXR10_C(config)#spanning-treemstconfiguration
ZXR10_C(config-mstp)#namezte
ZXR10_C(config-mstp)#revision2
/*MapVLANs1to10toInstance1andVLANs11to20toInstance2*/
ZXR10_C(config-mstp)#instance1vlan1-10
ZXR10_C(config-mstp)#instance2vlan11-20
/*ChangethepriorityofSwitchCinInstance1sothat
itbecomestheRootofInstance1*/
ZXR10_C(config-mstp)#spanning-treemstinstance1priority4096
KeepthedefaultcongurationofSwitchD.
