108 APPENDIX B: COMMAND LINE REFERENCE

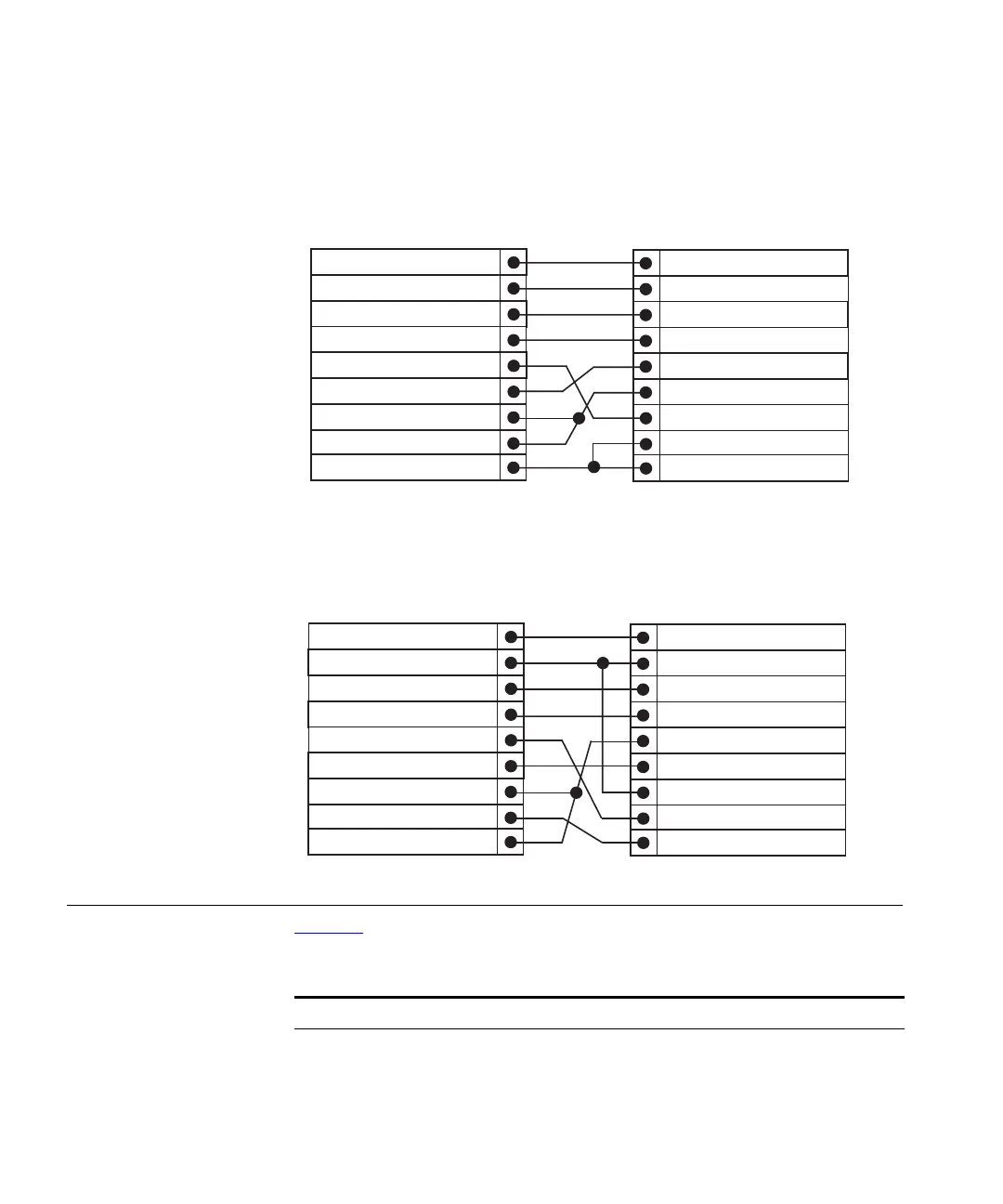

Figure 54 Pinouts for 9-pin to RS-232 25-pin
Figure 55 Pinouts for 9-pin to 9-pin
Command
Reference
Table 24 lists all the commands that you use on the Access Point through
the CLI.
Screen Shell
TxD 3
RxD 2
Ground 5
RTS 7
CTS 8
DSR 6
DCD 1
DTR 4
1 Screen
3 RxD
2 TxD
7 Ground
4RTS
20 DTR
5 CTS
6 DSR
8 DCD
Access Point
Cable Connector:
9-Pin Female
PC/Terminal
Cable Connector:
25-Pin Male/Female
Screen Shell
DTR 4
TxD 3
RxD 2
CTS 8
Ground 5
DSR 6
RTS 7
DCD 1
Shell Screen
1 DCD
2 RxD
3 TxD
4 DTR
5 Ground
6 DSR
7RTS
8 CTS
Access Point
Cable Connector:
9-Pin Female
PC-AT Serial Port
Cable Connector:
9-Pin Female
Table 24 Console Commands
Command Description
? Display CLI command list
admin Temporary factory admin
config wlan config wlanX
