10 CHAPTER 1: INTRODUCING THE OFFICECONNECT WIRELESS ACCESS POINT

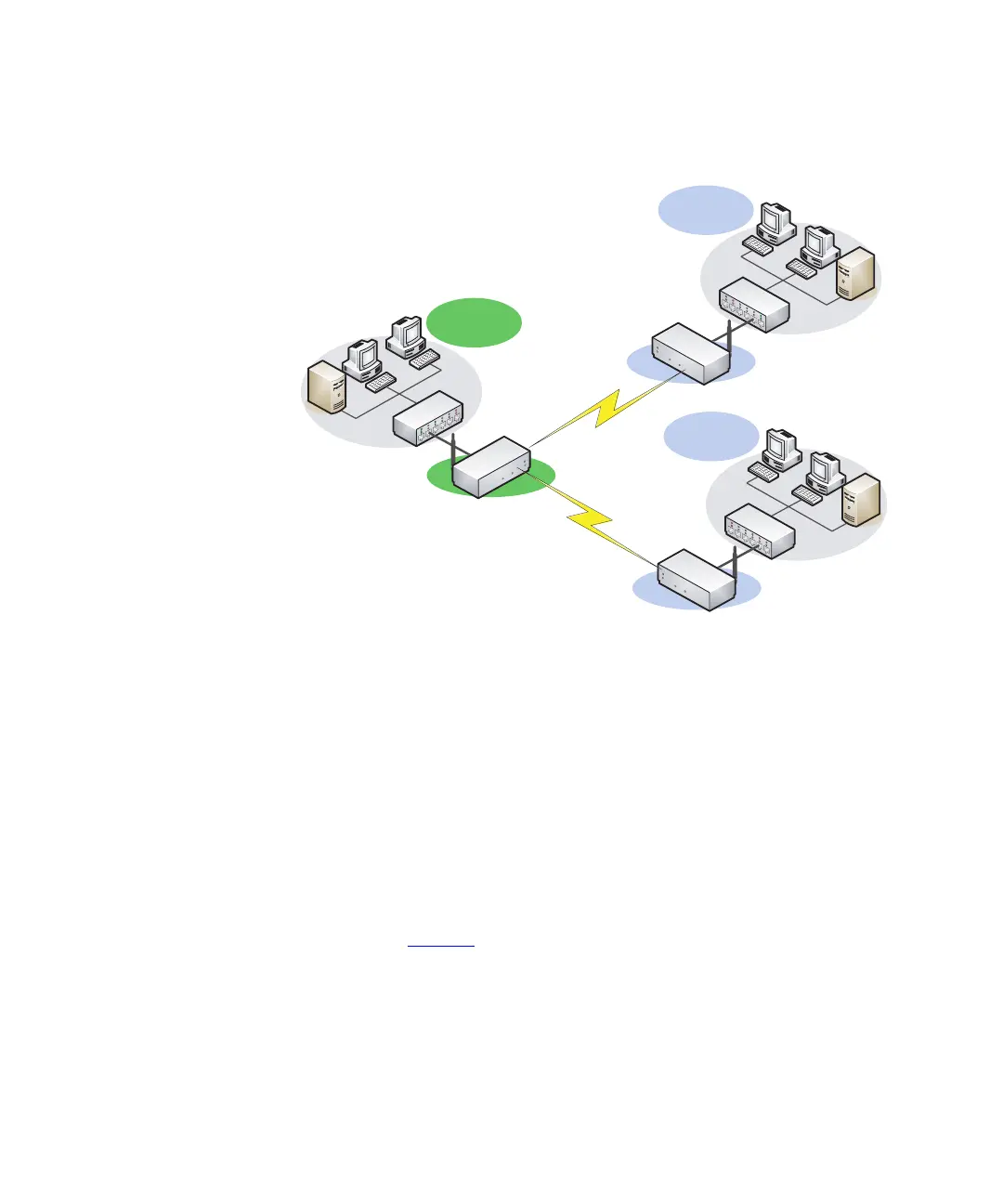

Figure 3 Point-to-Multipoint WDS
Secure WDS Communication
The Access Point secures WDS links using either WEP or WPA-PSK
encryption. If you use WEP, all APs in the system must use the same WEP
key. If you use WPA-PSK, you must create the same security profile (with
the same SSID) on both master and slaves, and configure both master
and slaves to use WPA-PSK.
Wireless Client/Repeater
The Access Point can also function either as a client or repeater. You can
use the Access Point as a repeater to extend the range of your wireless
network. See Figure 3
for an illustration of how the Access Point works as
a repeater.
Wired
Network A
`
`
S
tat
u
s
P
o
w
e
r
LA
N
W
i
r
el
e
s
s
`
`
S
ta
t
u
s
P
owe
r
LA
N
W
i
r
el
e
s
s
Wired
Network B
WDS Link
`
`
S
tatu
s
P
owe
r
LA
N
W
ir
el
e
s
s
Wired
Network C
WDS Link
Master,
Set to
PTMP Mode
Slave,
Set to
PTP Mode
Slave,
Set to
PTP Mode
