Displaying and Maintaining Traffic Mirroring
To do… Use the command…
Remarks
Display traffic behavior
configuration information
display traffic behavior
user-defined
[ behavior-name ]
Available in any view
Display QoS policy
configuration information
display qos policy
user-defined [ policy-name
[ classifier tcl-name ] ]
Available in any view
Traffic Mirroring Configuration Examples
Example for Mirroring Traffic to an Interface
Network requirements
On the network as shown in Figure 9-1, Host A (with the IP address 192.168.0.1) and Host B are
connected to GigabitEthernet1/0/1 of the switch; a data monitoring device is connected to
GigabitEthernet1/0/2 of the switch.
Monitor and analyze packets sent by Host A on the data monitoring device.

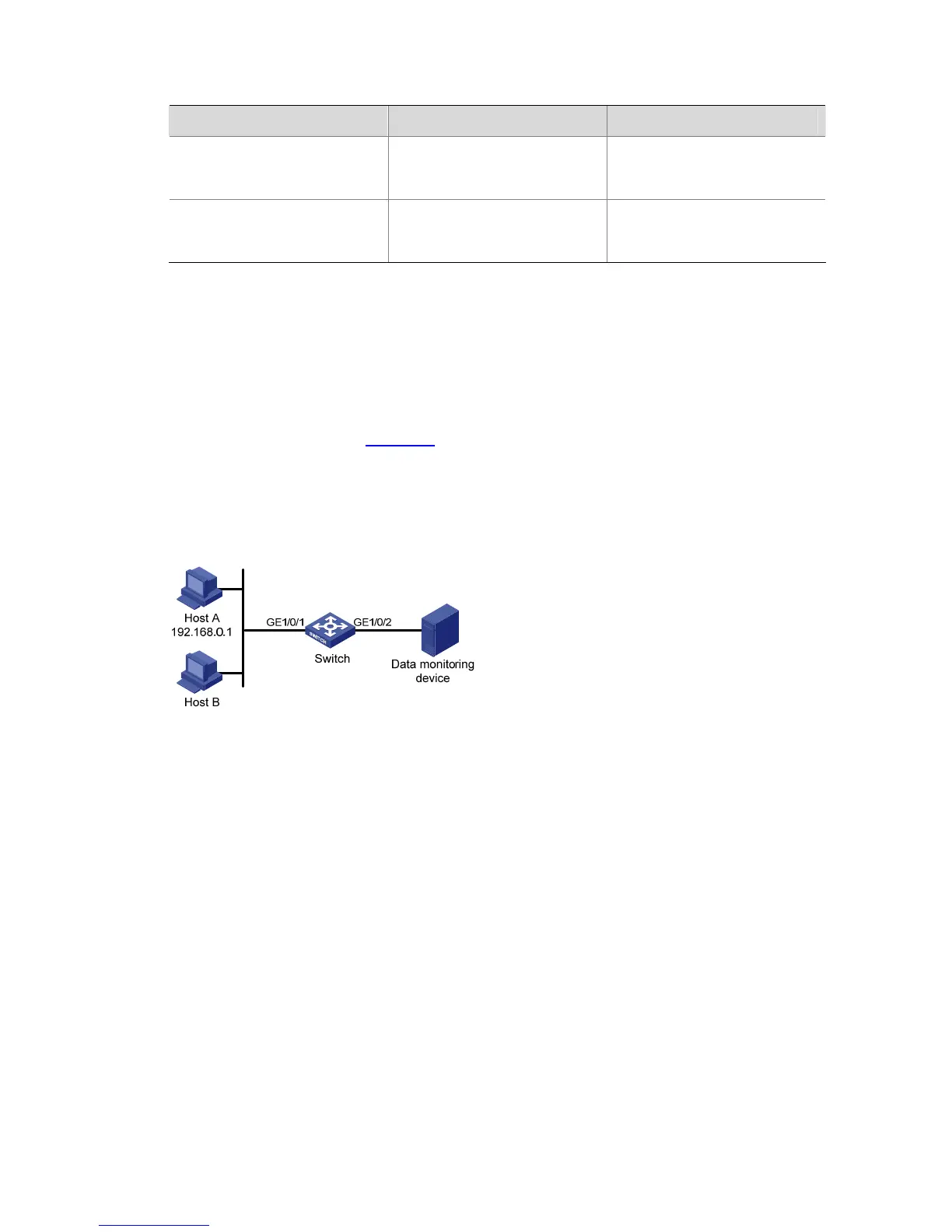

Figure 9-1 Network diagram for configuring traffic mirroring to a port
Configuration Procedure
Configure Switch:
# Enter system view.
<Sysname> system-view
# Configure basic IPv4 ACL 2000 to match packets with the source IP address 192.168.0.1.
[Sysname] acl number 2000
[Sysname-acl-basic-2000] rule permit source 192.168.0.1 0
[Sysname-acl-basic-2000] quit
# Create class 1 and configure the class to use ACL 2000 for traffic classification.
[Sysname] traffic classifier 1
[Sysname-classifier-1] if-match acl 2000
[Sysname-classifier-1] quit
# Create behavior 1 and configure the action of mirroring traffic to GigabitEthernet1/0/2 in the traffic
behavior.
